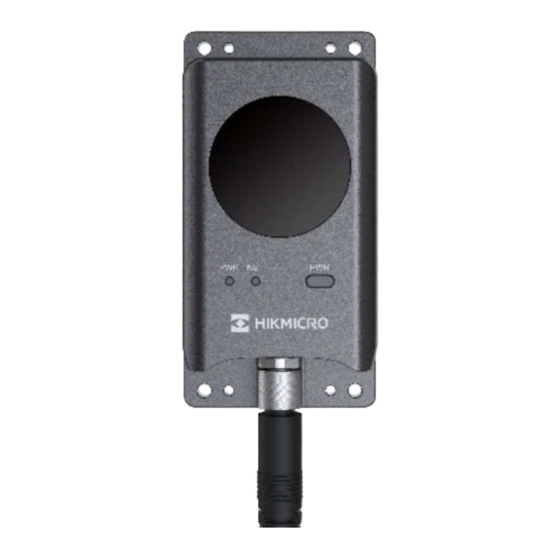

Thermographic Cube Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hikmicro HM-TD3117T-1/Q

Summary of Contents for Hikmicro HM-TD3117T-1/Q

  • Page 1 Thermographic Cube Camera User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKMICRO BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Thermographic Cube Camera User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 4 Thermographic Cube Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 5 Thermographic Cube Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations In the use of the product, you must be in strict compliance with the electrical safety regulations ●...
  • Page 6 Thermographic Cube Camera User Manual DO NOT dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, ● which may result in an explosion. DO NOT leave the battery in an extremely high temperature surrounding environment, which ●...
  • Page 7 Thermographic Cube Camera User Manual The equipment shall not be exposed to dripping or splashing and that no objects filled with ● liquids, such as vases, shall be placed on the equipment. No naked flame sources, such as lighted candles, should be placed on the equipment. ●...

  • Page 8: Table Of Contents

    Thermographic Cube Camera User Manual Contents Chapter 1 Overview ........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 1.3 Typical Application ......................... 1 Chapter 2 Device Activation and Accessing ................. 4 2.1 Activate the Device via SADP ....................4 2.2 Activate the Device via Browser .....................
  • Page 9 Thermographic Cube Camera User Manual Chapter 5 Arming Schedule and Alarm Linkage ................. 18 5.1 Set Arming Schedule ......................18 5.2 Linkage Method Settings ...................... 18 5.2.1 Notify Surveillance Center ..................18 Chapter 6 Live View ........................19 6.1 Live View Parameters ......................19 6.1.1 Window Proportion ....................
  • Page 10 Thermographic Cube Camera User Manual 7.4 Set Manual DPC (Defective Pixel Correction) ............... 26 7.5 Metadata ..........................27 Chapter 8 Video Recording and Picture Capture ................ 28 8.1 Video Recording ........................28 8.1.1 Record Manually ......................28 8.2 Capture Configuration ......................28 8.2.1 Capture Manually ......................
  • Page 11 Thermographic Cube Camera User Manual 10.9.2 Set NTP Server ......................36 10.9.3 Set DST ........................37 10.10 Set RS-232 ........................37 10.11 Set RS-485 ........................37 10.12 Set Same Unit ........................38 10.13 Security ..........................38 10.13.1 Authentication ......................38 10.13.2 Set IP Address Filter ....................

  • Page 12: Chapter 1 Overview

    Thermographic Cube Camera User Manual Chapter 1 Overview 1.1 Brief Description The Thermographic Cube Camera is a temperature measurement device which is equipped with a thermal lens. It is equipped with high-sensitivity IR detector and high-performance sensor. The device is able to measure object's temperature at a high accuracy in real time.
  • Page 13 Thermographic Cube Camera User Manual Figure 1-1 Temperature Data Transmission among sensors, Cube Camera, and Center Table 1-1 Settings for Temperature Data Transmission Data Transmission Main Settings From External 1. Install sensors and the device. Refer to the installation guide of the Temperature Sensors sensors and the device.
  • Page 14 Thermographic Cube Camera User Manual Data Transmission Main Settings Access https://www.hikmicrotech.com/en/download/5 to get iVMS-4200 software. From Thermographic 1. Connect the device to network with network cable. Cube Camera to 2. Add the device to the center client (iVMS-4200). See the user manual of Center (Wired Way) the client software for instructions.

  • Page 15: Chapter 2 Device Activation And Accessing

    Thermographic Cube Camera User Manual Chapter 2 Device Activation and Accessing To protect the security and privacy of the user account and data, you should set a login password to activate the device when access the device via network. Note Refer to the user manual of the software client for the detailed information about the client software activation.

  • Page 16: Login

    Thermographic Cube Camera User Manual Note The default IP address of the device is 192.168.1.64. You can set the IP address of the PC from 192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set the IP address of the PC to 192.168.1.100. 3.

  • Page 17: Illegal Login Lock

    Thermographic Cube Camera User Manual Operating System Web Browser Operation Display and operation of certain functions are restricted. For example, Playback and Picture are not available. For detailed restricted function, refer to the actual device. Mac OS 10.13+ Mac Safari 12+ Plug-in installation is not required.

  • Page 18: Chapter 3 Temperature Measurement

    Thermographic Cube Camera User Manual Chapter 3 Temperature Measurement When you enable this function, the device measures the actual temperature of the scene. It alarms when temperature exceeds the temperature threshold value. 3.1 Notice This part introduces the notices of configuring temperature measurement function. The target surface should be as vertical to the optical axis as possible.

  • Page 19: Automatic Thermography

    Thermographic Cube Camera User Manual Figure 3-1 Thermometry Flow Chart 3.3 Automatic Thermography Configure the temperature measurement parameters and temperature measurement rules. The device can measure the actual temperature and output alarms when temperature exceeds the alarm threshold value.

  • Page 20: Set Thermometry Parameters

    Thermographic Cube Camera User Manual 3.3.1 Set Thermometry Parameters Configure the parameters of temperature measurement. Steps 1. Go to Configuration → Local , enable Display Temperature Info. . Display Temperature Info. Select Yes to display temperature information on live view. Enable Rules to display the rules information on live view.

  • Page 21: Set Normal Mode

    Thermographic Cube Camera User Manual External Optics/Window Correction Set the temperature of the external window or optical material (e.g.: germanium window) to correct the measured temperature. Version View the version of current algorithm. Calibration File Version View the version of calibration file. Alarm Interval Set the time interval of alarms.

  • Page 22: Set Expert Mode

    Thermographic Cube Camera User Manual When the temperature change exceeds the set sudden change alarm value within the set cycle, the camera triggers an alarm. Note Temperature sudden change alarm is only supported by certain device models. 5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method.
  • Page 23 Thermographic Cube Camera User Manual 2. Select the rule type to Point, Line, or Area. Then draw a point, line, or area on the interface where the position to be measured. Point Please refer to Point Thermography for detailed configuration. Line Please refer to Line Thermography for detailed configuration.
  • Page 24 Thermographic Cube Camera User Manual Temperature Sudden Increase and OFF are selectable. When the temperature change value in the drawn area exceeds the set alarm threshold, the device triggers an alarm. Cycle Set the recording period of the temperature change. Sudden Change Alarm Value Set the temperature change alarm threshold for the rule.

  • Page 25: Set Shielded Region

    Thermographic Cube Camera User Manual 3. Drag the corners of the area to adjust the size and shape. Go to Live View interface to view the maximum temperature and rule of the area in thermal channel. 3.3.5 Set Shielded Region You can configure areas from being detected.

  • Page 26: Set External Temperature Sensor

    Thermographic Cube Camera User Manual Before You Start Go to Configuration → 433 Module Configuration → Basic Settings to enable 433 wireless network transmission. Steps 1. Go to Configuration → 433 Module Configuration → Sensor . 2. Select the Type of the sensor. 3.

  • Page 27: Upload Temperature Alarm To Center

    Thermographic Cube Camera User Manual Set the temperature change alarm threshold for the rule. When the difference between the max. temperature and the min. temperature in the recording cycle exceeds the set alarm value, the device triggers an alarm. 4. Click OK. 5.

  • Page 28: Chapter 4 Event And Alarm

    Thermographic Cube Camera User Manual Chapter 4 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 4.1 Set Exception Alarm Exception such as HDD full can trigger the device to take corresponding action. Steps 1.

  • Page 29: Chapter 5 Arming Schedule And Alarm Linkage

    Thermographic Cube Camera User Manual Chapter 5 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 5.1 Set Arming Schedule Set the valid time of the device tasks.

  • Page 30: Chapter 6 Live View

    Thermographic Cube Camera User Manual Chapter 6 Live View It introduces the live view parameters, function icons and transmission parameters settings. 6.1 Live View Parameters The supported functions vary depending on the model. 6.1.1 Window Proportion refers to the window size is 16 : 9. ●...

  • Page 31: Quick Set Live View

    Thermographic Cube Camera User Manual 6.2 Quick Set Live View It offers a quick setup of display settings, OSD, video/audio and VCA resource settings on live view page. Steps 1. Click to show quick setup page. 2. Set display settings, OSD, video/audio and VCA resource parameters. - For display settings, see Display Settings .
  • Page 32 Thermographic Cube Camera User Manual The device takes the real-time video image as the priority over the video fluency. Balanced The device ensures both the real-time video image and the fluency. Fluent The device takes the video fluency as the priority over teal-time. In poor network environment, the device cannot ensures video fluency even the fluency is enabled.

  • Page 33: Chapter 7 Video And Audio

    Thermographic Cube Camera User Manual Chapter 7 Video and Audio This part introduces the configuration of video and audio related parameters. 7.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution. Go to setting page: Configuration →...

  • Page 34: Video Quality

    Thermographic Cube Camera User Manual Variable Bitrate It means that the device automatically adjust the bitrate under the set Max. Bitrate. The compression speed is slower than that of the constant bitrate. But it guarantees the image quality of complex scenes. 7.1.5 Video Quality When Bitrate Type is set as Variable, video quality is configurable.

  • Page 35: Smoothing

    Thermographic Cube Camera User Manual Profile This function means that under the same bitrate, the more complex the profile is, the higher the quality of the image is, and the requirement for network bandwidth is also higher. I-Frame Interval I-frame interval defines the number of frames between 2 I-frames. In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently decoded without any reference to other images.

  • Page 36: Display Settings

    Thermographic Cube Camera User Manual Video means the VCA info can be displayed by any general video player. 7.2 Display Settings It offers the parameter settings to adjust image features. Go to Configuration → Image → Display Settings . Click Default to restore settings. 7.2.1 Image Adjustment (Thermal Channel) You can optimize the image display effect of thermal channel by setting background correction and manual correction.

  • Page 37: Dde

    Thermographic Cube Camera User Manual 7.2.3 DDE Digital Detail Enhancement is used to adjust the details of the image. OFF and Normal modes are selectable. Disable this function. Normal Set the DDE level to control the details of the image. The higher the level is, the more details shows, but the higher the noise is.

  • Page 38: Metadata

    Thermographic Cube Camera User Manual Note If multiple defective pixels need to be corrected, click after locating a defective pixel. Then after locating other pixels, click to correct them simultaneously. 6. Optional: Click to cancel defective pixel correction. 7.5 Metadata Metadata is the raw data that the device collects before algorithm processing.

  • Page 39: Chapter 8 Video Recording And Picture Capture

    Thermographic Cube Camera User Manual Chapter 8 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 8.1 Video Recording This part introduces the operations of manual and scheduled recording, playback, and downloading recorded files.

  • Page 40: Chapter 9 Network Settings

    Thermographic Cube Camera User Manual Chapter 9 Network Settings 9.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other. Go to Configuration →...

  • Page 41: Multicast Discovery

    Thermographic Cube Camera User Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.

  • Page 42: Port Mapping

    Thermographic Cube Camera User Manual 9.3 Port Mapping By setting port mapping, you can access devices through the specified port. Before You Start When the ports in the device are the same as those of other devices in the network, refer to Port to modify the device ports.

  • Page 43: Set Port Mapping On Router

    Thermographic Cube Camera User Manual 9.3.3 Set Port Mapping on Router The following settings are for a certain router. The settings vary depending on different models of routers. Steps 1. Select the WAN Connection Type. 2. Set the IP Address, Subnet Mask and other network parameters of the router. 3.

  • Page 44: Access To Device Via Domain Name

    Thermographic Cube Camera User Manual 9.4 Access to Device via Domain Name You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device can be mapped to a domain name resolution server to realize the network access via domain name. Before You Start Registration on the DDNS server is required before configuring the DDNS settings of the device.

  • Page 45: Chapter 10 System And Security

    Thermographic Cube Camera User Manual Chapter 10 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 10.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...

  • Page 46: Export Diagnose Information

    Thermographic Cube Camera User Manual 10.4 Export Diagnose Information Diagnose information includes running log, system information, hardware information. Go to Configuration → System → Maintenance → Upgrade & Maintenance , and click Diagnose Information to export diagnose information of the device. 10.5 Reboot You can reboot the device via browser.

  • Page 47: View Open Source Software License

    Thermographic Cube Camera User Manual Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4. Click Upgrade. 10.8 View Open Source Software License Go to Configuration → System → System Settings → About , and click View Licenses. 10.9 Time and Date You can configure time and date of the device by configuring time zone, time synchronization and Daylight Saving Time (DST).

  • Page 48: Set Dst

    Thermographic Cube Camera User Manual 6. Click Save. 10.9.3 Set DST If the region where the device is located adopts Daylight Saving Time (DST), you can set this function. Steps 1. Go to Configuration → System → System Settings → DST . 2.

  • Page 49: Set Same Unit

    Thermographic Cube Camera User Manual 10.12 Set Same Unit Set the same temperature unit and distance unit. When you enable this function, the unit cannot be configured separately in other setting pages Steps 1. Go to Configuration → System → System Settings → Unit Settings . 2.

  • Page 50: Set Https

    Thermographic Cube Camera User Manual Delete Delete the selected IP address in the list. 5. Click Save. 10.13.3 Set HTTPS HTTPS is a network protocol that enables encrypted transmission and identity authentication, which improves the security of remote access. Steps 1.

  • Page 51: Set Qos

    Thermographic Cube Camera User Manual - Select Signed certificate is available, start the installation directly. Click Browse and Install to import the certificate to the device. - Select Create the certificate request first and continue the installation. Click Browse and Install to import the certificate to the device.
  • Page 52 Thermographic Cube Camera User Manual The administrator has the authority to all operations and can add users and operators and assign permission. User Users can be assigned permission of viewing live video, setting PTZ parameters, and changing their own passwords, but no permission for other operations. Operator Operators can be assigned all permission except for operations on the administrator and creating accounts.

  • Page 53: Chapter 11 Appendix

    0.98 Hard Paperboard 0.90 White Paper 0.90 Water 0.96 11.2 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HikMicro thermal cameras.

  • Page 54: Device Communication Matrix

    Thermographic Cube Camera User Manual 11.3 Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of HikMicro thermal cameras.
  • Page 55 UD27936B...

This manual is also suitable for:

Hm-td3117t-2/q
