Hikmicro Pocket Series User Manual

Handheld thermography camera
Hide thumbs Also See for Pocket Series:
Table of Contents

Advertisement

Quick Links

Download this manual

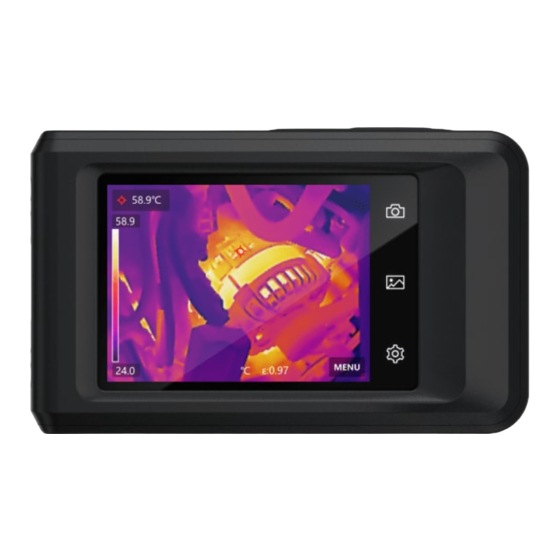

Handheld Thermography Camera
Pocket Series
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hikmicro Pocket Series

Summary of Contents for Hikmicro Pocket Series

  • Page 1 Handheld Thermography Camera Pocket Series User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Handheld Thermography Camera User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Handheld Thermography Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Handheld Thermography Camera User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 Handheld Thermography Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 7 Handheld Thermography Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 8 ● The pollution degree is 2. Technical Support The https://www.hikmicrotech.com portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Emergency ●...
  • Page 9 Handheld Thermography Camera User Manual COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.

  • Page 10: Table Of Contents

    Handheld Thermography Camera User Manual Contents Chapter 1 Overview........................1 1.1 Device Description ......................... 1 1.2 Main Function ........................1 1.3 Appearance ..........................2 Chapter 2 Preparation ........................ 4 2.1 Charge Device ........................4 2.2 Power On/Off ........................4 2.2.1 Set Auto Power-off Duration ..................4 2.3 Operation Method ........................
  • Page 11 Handheld Thermography Camera User Manual 5.3.4 Delete an Album ....................... 14 5.4 View Recorded Files ......................14 5.5 Manage Files ........................15 5.5.1 Delete a File ......................15 5.5.2 Delete Multiple Files ....................15 5.5.3 Move a File ....................... 16 5.5.4 Move Multiple Files ....................

  • Page 12: Chapter 1 Overview

    Device supports multiple palettes, and you can set the palette mode according to the alarm function. Client Software Connection ● Mobile Phone: Use HIKMICRO Viewer to view live image, capture, and recording, etc. on your phone. You can also access the album and download the files to your phone. HIKMICRO Viewer Android HIKMICRO Viewer iOS ●...

  • Page 13: Appearance

    Handheld Thermography Camera User Manual Bluetooth Device can be connected to headset via Bluetooth, and you can hear the voice in the recording or capture. 1.3 Appearance Figure 1-1 Appearance...
  • Page 14 Handheld Thermography Camera User Manual Table 1-1 Button and Interface Description Description Function Back Key Tap to exit the menu or return to previous menu. File Key Tap to enter albums. Settings Key Tap to enter settings interface. 4 & 14 Flash Light Fill light on objects and output flashing alarm.

  • Page 15: Chapter 2 Preparation

    Handheld Thermography Camera User Manual Chapter 2 Preparation 2.1 Charge Device Before You Start Please make sure the battery is installed before charging. Steps 1. Lift the cover of cable interface. 2. Plug in the cable, and connect the power supply to charge the battery. 2.2 Power On/Off Power On Hold...
  • Page 16 Handheld Thermography Camera User Manual swipe-down menu. ① Back ② File ③ Settings ④ Menu Figure 2-1 Main Menu ⑤ Wi-Fi ⑥ Bluetooth ⑦ Hotspot ⑧ Screen Cast ⑨ Flashlight ⑩ Dark/Bright Mode Figure 2-2 Swipe-Down Menu...

  • Page 17: Chapter 3 Display Settings

    Handheld Thermography Camera User Manual Chapter 3 Display Settings 3.1 Set Screen Brightness You can drag the brightness adjustment bar in the swipe-down menu. Figure 3-1 Adjust Brightness via Swipe-Down Menu 3.2 Set Display Mode You can set the thermal/optical view of the device. Thermal, Fusion, PIP, and Optical are selectable.

  • Page 18: Set Palettes

    Handheld Thermography Camera User Manual 3.3 Set Palettes The palettes allow you to select the desired colors. Steps 1. Tap Menu, and select 2. Tap the icons to select a palette type. White Hot The hot part is light-colored in view. Black Hot The hot part is black-colored in view.

  • Page 19: Display Osd Info

    Handheld Thermography Camera User Manual Figure 3-2 Adjust Digital Zoom 2. Select the digital zoom value as required 3. Tap the screen to save and exit. 3.5 Display OSD Info Go to Local Settings → Device Settings → Display Settings to enable the information on-screen display.

  • Page 20: Chapter 4 Temperature Measurement

    Handheld Thermography Camera User Manual Chapter 4 Temperature Measurement The thermography (temperature measurement) function provides the real-time temperature of the scene and display it on the left of your screen. The thermography function is turned on by default. 4.1 Set Thermography Parameters You can set thermography parameters to improve the accuracy of temperature measurement.

  • Page 21: Set Temperature Range

    Handheld Thermography Camera User Manual 4.2 Set Temperature Range Set a temperature section and the palette only works for targets within the temperature section. You can adjust the temperature range. Steps 1. Tap Menu, and select 2. Select auto adjustment or manual adjustment Auto Adjustment Select...

  • Page 22: Set Temperature Alarm

    Handheld Thermography Camera User Manual 4.4 Set Temperature Alarm When the temperature of targets triggers the set alarm rule, the device will perform configured actions, such as making audible warning and flash alarm, and sending notification to the client software. Steps 1.

  • Page 23: Chapter 5 Picture And Video

    Handheld Thermography Camera User Manual Chapter 5 Picture and Video Insert memory card into the device, then you can record videos, capture snapshots, and mark and save important data. Note ● Device does not support capturing or recording when the menu is shown. ●...

  • Page 24: Record Video

    Handheld Thermography Camera User Manual 5.2 Record Video Before You Start Enable the flashlight via the swipe-down menu in dark environment. Steps 1. In the live view interface, hold the capture key to start recording. The recording icon and count down number display in the interface.

  • Page 25: Rename An Album

    Handheld Thermography Camera User Manual Note The newly created album becomes the default saving album and appears at the top of the album list. 5.3.2 Rename an Album Steps 1. Press to enter Albums. 2. Select the album to rename. 3.

  • Page 26: Manage Files

    Handheld Thermography Camera User Manual 4. View the selected file and relevant information. Figure 5-2 View a File Note For more information contained in capture snapshots or videos, you can install the thermography client to analyze them. 5.5 Manage Files You can move, delete, and edit the recorded files.

  • Page 27: Move A File

    Handheld Thermography Camera User Manual Note You can tap to select all files, and tap to cancel the selection. 4. Tap . A prompt box appears on the interface. 5 Tap OK to delete the files. Note You can also delete a single file in this way. 5.5.3 Move a File Steps 1.

  • Page 28: Export Files

    Handheld Thermography Camera User Manual 2. Tap to select the album storing the file to be edited. 3. In the album, tap to select the file to be edited. 4. Tap , and select Text Note. A soft keyboard is displayed. 5.

  • Page 29: Chapter 6 Connect Bluetooth

    Handheld Thermography Camera User Manual Chapter 6 Connect Bluetooth You can record and hear the sound contained in the videos or images via bluetooth headsets after pairing the device with bluetooth headsets successfully. Steps 1. Select from the main menu. 2.

  • Page 30: Chapter 7 Set Led Light

    Handheld Thermography Camera User Manual Chapter 7 Set LED Light Tap the flashlight button on the swipe-down menu to enable the LED light.

  • Page 31: Chapter 8 Cast Screen

    Handheld Thermography Camera User Manual Chapter 8 Cast Screen You can connect the device to your PC via a type-C cable, and cast the real-time live view of the device to your PC through the UVC alarm client. Then you can synchronously view the live view and parameters such as the maximum temperature, the distance, and the emissivity on your PC.

  • Page 32: Chapter 9 Thermal View App Connection

    Handheld Thermography Camera User Manual Chapter 9 Thermal View APP Connection The device supports both Wi-Fi connection and hotspot. Connect the device to HIKMICRO Viewer, and you can control the device via mobile client. 9.1 Connect via Wi-Fi Before You Start Download and install HIKMICRO Viewer on your phone.

  • Page 33: Connect Via Hotspot

    Handheld Thermography Camera User Manual 9.2 Connect via Hotspot Before You Start Download and install HIKMICRO Viewer on your phone. Steps 1. Select from the main menu. 2. Go to Local Settings → Connect → Hotspot. 2. Tap to enable the hotspot function. The hotspot name is the last 9 digits of the device serial No.

  • Page 34: Chapter 10 Maintenance

    Handheld Thermography Camera User Manual Chapter 10 Maintenance 10.1 View Device Information Go to Local Settings → Device Information to view the device information. 10.2 Set Date and Time Steps 1. Go to Local Settings → Device Settings → Time and Date. 2.

  • Page 35: Chapter 11 Appendix

    0.98 Hard Paperboard 0.90 White Paper 0.90 Water 0.96 11.2 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HikMicro thermal cameras.

  • Page 36: Device Communication Matrix

    Handheld Thermography Camera User Manual 11.3 Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of HikMicro thermal cameras. 11.4 FAQ Scan the following QR code to get device common FAQ.
  • Page 37 Facebook: HIKMICRO Thermography LinkedIn: HIKMICRO Instagram: hikmicro_thermography YouTube: HIKMICRO Thermography E-mail: info@hikmicrotech.com Website: https://www.hikmicrotech.com/ UD27664B...

This manual is also suitable for:

Pocket2
