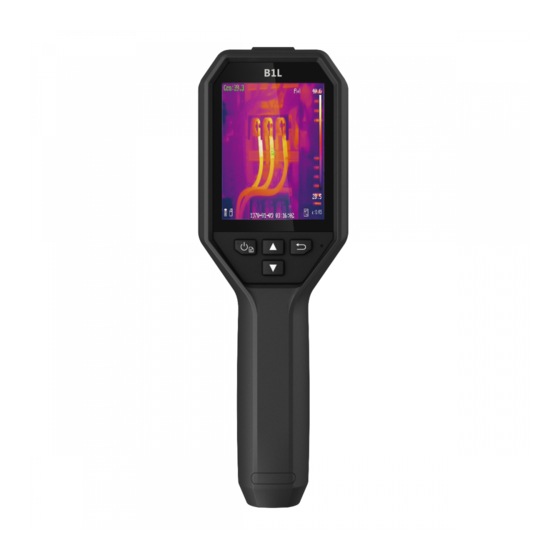

- Page 1 Handheld Thermography Camera HIKMICRO B Series User Manual...
- Page 2 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website (www.hikmicrotech.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
- Page 3 FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 5 HIKMICRO official website. Technical support The https://www.hikmicrotech.com portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc.
- Page 6 COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary export license requirements if you intend to transfer, export, re-export the thermal series products...
-
Page 7: Table Of Contents
4.5 Set Temperature Alarm ......6 5 Capture Snapshots ........... 6 5.1 View Snapshots ........7 5.2 Export Snapshots ........7 6 HIKMICRO Viewer Connection ......7 6.1 Connect via Wi-Fi ........7 6.2 Connect via Hotspot ......... 8 7 Image Settings ..........8 8 Set Macro Mode (Optional) ...... -
Page 8: Introduction
Client Software Connection Mobile Phone: You can view live view, capture snapshots, record videos via HIKMICRO Viewer App on your phone. You can also analyze radiometric images, generate and share a report via the App. Scan the QR codes to download the App. -
Page 9: Appearance
PC: You can download HIKMICRO Analyzer (https://www.hikmicrotech.com/en/product-c-d etail/18) to analyze pictures offline professionally, and generate a custom format report on your Appearance Screen Back Charging Indicator Speaker On/OK/Menu Nevigation Function Button Hold: Power On/Off Press: Display menu or confirm... -
Page 10: Preparation
Component Function Charging Solid Red: charging. Indicator Solid Green: fully charged. Type-C Charge the battery or Interface export snapshots. In live view interface, pull the trigger to capture snapshots. Trigger In menu mode, pull the trigger to switch to live view. -
Page 11: Interface Description
In the live view interface, press and go to Auto Off to set the automatic shutdown time for device as required. Interface Description The interface of different models may vary. Take the actual product for reference. Temperature Unit Battery Status Real-time Temperature Color-Temperature... -
Page 12: Set Level & Span
The device can detect the temperature and switch thermography range automatically in Auto Switch mode. Press to save and exit. Set Level & Span Set a temperature range and palette only works for targets within the temperature range. You can get better image contrast by adjusting the level &... -
Page 13: Enhance High-Temperature Target
Enhance High-Temperature Target In target enhancement function, when the target’s temperature is higher than the set value, the target will become red. Steps: In the live view interface, press show the menu. Press , and select Palettes. Switch the palette mode to Above Alarm. Set the temperature. -
Page 14: View Snapshots
HIKMICRO Viewer Connection The device supports both Wi-Fi connection and WLAN hotspot. Connect the device to HIKMICRO Viewer App, and you can control the device via mobile App. Connect via Wi-Fi Before You Start Download and install HIKMICRO Viewer on your phone. -
Page 15: Connect Via Hotspot
Wi-Fi function is only supported by certain models. Please refer to the actual device or datasheet. Connect via Hotspot Before You Start Download and install HIKMICRO Viewer on your phone. Steps: In the live view interface, press show the menu. -
Page 16: Set Macro Mode (Optional)
with clear edge is displayed in this mode. PIP: Display a part of the thermal image on the optical image. Optical: Display the optical image only. Optional: When selecting the fusion mode, you need to select the distance in Image ->... -
Page 17: Cast Screen
● Connect the device and PC with supplied Type-C cable. ● Download the UVC Alarm Client from HIKMICRO official website, and install the client on your PC. Refer to the user manual of UVC Alarm Client for detailed operation. Steps: In the live view interface, press show the menu. -
Page 18: Maintenance
Note Flashlight function is only supported by certain models. Please refer to the actual device or datasheet. Maintenance 12.1 View Device Information In the live view interface, press select About to view the device information. 12.2 Set Date and Time In the live view interface, press select Time &... -
Page 19: Appendix
Appendix 13.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 0.91 Cement Concrete 0.95 Ceramics 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Asphalt 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cotton 0.98 Cardboard 0.90 White Paper 0.90 Water 0.96 13.2 Frequently Asked Questions (FAQ) Q: The charge indicator flashes red. - Page 20 Facebook: HIKMICRO Thermography LinkedIn: HIKMICRO Instagram: hikmicro_thermography YouTube: HIKMICRO Thermography E-mail: info@hikmicrotech.com Website: https://www.hikmicrotech.com/ UD28793B...
