- Page 1 Installation Manual RG-S3760E Series...
- Page 2 Disclaimer The information contained in this manual may be modified without notification. Ruijie Networks has tried its best to maintain the accuracy and reliability of this manual on the website. Ruijie Networks takes no responsibility for the...
-
Page 3: Table Of Contents
Chapter 3 Product Installation........................31 3.1 Installation Procedure ................................ 31 3.2 Confirmations before Installation ............................31 3.3 Installing the RG-S3760E Series ............................32 3.3.1 Precautions ................................32 3.3.2 Mounting the Switch to a Standard 19-inch Rack ....................32 3.3.3 Mounting the Switch to the Wall ..........................32 3.3.4 Mounting the Switch to the Desktop ........................ - Page 4 4.1 Establishing the Configuration Environment ........................34 4.1.1 Establishing the Configuration Environment ......................34 4.1.2 Connecting the Console Cable ..........................34 4.1.3 Setting Terminal Parameters ............................. 34 4.2 Power-on Startup ................................34 4.2.1 Checking before Power-on ............................34 4.2.2 Checking after Power-on (Recommended) ......................35 Chapter 5 Maintenance and Troubleshooting..................
- Page 5 Documentation CD-ROM: The documentation of Ruijie Networks switches is stored in the CD-ROM package, which is provided to you together with the product you purchase. The CD-ROM is updated frequently, and may be more current than the printed documents.
- Page 6 ² Customer services email: service@ruijie.com.cn Documentation Conventions The symbols used in this document are described as below: This symbol draws the attention of readers to some suggestions and references. This symbol reminds readers to be alert of wrong operations that may lead to loss of data or damage to equipment.
-
Page 7: Chapter 1 Product Overview

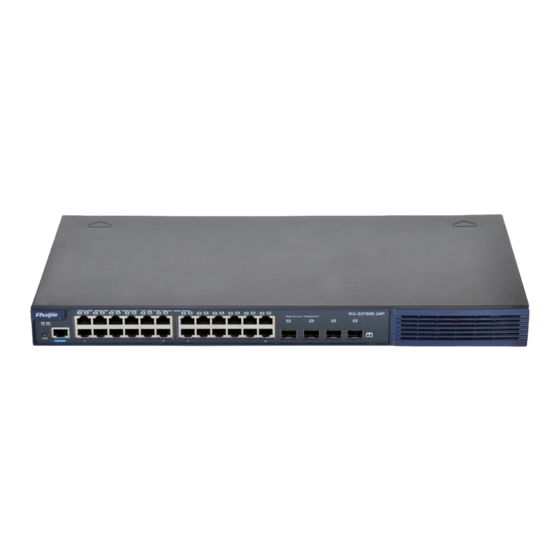

Chapter 1 Product Overview 1.1 Product Overview The RG-S3760E series switches are the next generation box-type Layer 3 switches introduced by Ruijie Networks. Integrated with high performance, high security, and multiple services, the RG-S3760E switches are mainly applicable to the convergence layer of large-scale networks to provide line-speed exchanging and complete QoS services, and to ensure the undelayed transmission of key data by applying different traffic classification rules to different services. -
Page 8: Main Technical Specifications Of Rg-S3760E
RG-S3760E-48P 1.2 Main Technical Specifications of RG-S3760E Table 1-3 Technical specifications of the RG-S3760E series Model RG-S3760E-24 RG-S3760E-24-DC RG-S3760E-24P RG-S3760E-48 RG-S3760E-48-DC RG-S3760E-48P Module type Ethernet 100M: FE-SFP-LX-MM1310 FE-SFP-LH15-SM1310 Ethernet 1000M: Mini-GBIC-SX Mini-GBIC-LX Mini-GBIC-LH40 Mini-GBIC-ZX50 Mini-GBIC-ZX80 Mini-GBIC-ZX100 1000Base-T： Mini-GBIC-GT Note: the supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. -
Page 9: Rg-S3760E Series Models
4.4 Kg RG-S3760E-24P: with extension modules 7.5Kg and without extension modules 7.0 Kg RG-S3760E-48P: with extension modules 8.1Kg and without extension modules 7.6 Kg 1.3 RG-S3760E Series Models 1.3.1 RG-S3760E-24 Ethernet Switch Product Appearance The front panel of the RG-S3760E-24 Ethernet switch provides twenty four 10/100Base-T Ethernet ports, two GE SFP fiber/copper combo ports and one Console port. - Page 10 Figure 1-1 Appearance of the RG-S3760E-24 Ports on the Front Panel Figure 1-2 Schematic diagram of the RG-S3760E-24 front panel 1. Switch status indicator 2. Extension module indicator 3. Extension port 1 status indicator 4. Extension port 2 status indicator 5.
-
Page 11: Rg-S3760E-48 Ethernet Switch
At present, the redundant power supply interface can be used together with the RPS150, RPS500, and RPS1100 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur on the switch or the switch may become damaged. - Page 12 Figure 1-5 Schematic diagram of the RG-S3760E-48 front panel 1. Switch status indicator 2. Extension module indicator 3. Extension port 1 status indicator 4. Extension port 2 status indicator 5. RPS link indicator 6. Console port 7. 10/100Base-T adaptive Ethernet port 8.
-
Page 13: Rg-S3760E-24-Dc Ethernet Switch
At present, the redundant power supply interface can be used together with the RPS150, RPS500, and RPS1100 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur on the switch or the switch may become damaged. - Page 14 Ports on the Front Panel Figure 1-9 Schematic diagram of the RG-S3760E-24-DC front panel 1. Switch status indicator 2. Extension module indicator 3. Extension port 1 status indicator 4. Extension port 2 status indicator 5. Console port 6. 10/100Base-T adaptive Ethernet port 7.
-
Page 15: Rg-S3760E-48-Dc Ethernet Switch
1.3.4 RG-S3760E-48-DC Ethernet Switch Product Appearance The front panel of the RG-S3760E-48-DC Ethernet switch provides forty eight 10/100Base-T Ethernet ports, two GE SFP fiber/copper combo ports and one Console port. The backplanel providesDC power input ports and an extension module slot. Figure 1-11 shows the appearance of the RG-S3760E-48-DC. Figure 1-11 Appearance of the RG-S3760E-48-DC Ports on the Front Panel Figure 1-12 Schematic diagram of the RG-S3760E-48-DC front panel... -
Page 16: Rg-S3760E-24P Ethernet Switch
Ports on the Backpanel Figure 1-13 Schematic diagram of the RG-S3760E-48-DC backpanel 1. Grounding pole 2. DC power input 3. Fan outlet 4. Extension module slot Power Supply System The RG-S3760E-48-DC adopts the DC/DC power input. The RG-S3760E-48-DC can not only adopt the DC power input, but also the DC/DC power input. - Page 17 Figure 1-15 Appearance of the RG-S3760E-24P Ports on the Front Panel Figure 1-16 Schematic diagram of the RG-S3760E-24P front panel 1. POE mode indicator 2. Switch status indicator 3. Extension module indicator 4. Extension port 1 status indicator 5. Extension port 2 status indicator 6.
- Page 18 At present, the redundant power supply interface can be used together with the RPS150, RPS500, and RPS1100 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur on the switch or the switch may become damaged.
-
Page 19: Rg-S3760E-48P Ethernet Switch
Figure 1-18 Flow scheme of heat dissipation 1.3.6 RG-S3760E-48P Ethernet Switch Product Appearance The front panel of the RG-S3760E-48P Ethernet switch provides forty eight 10/100Base-T Ethernet ports, two GE SFP fiber/copper combo ports and one Console port. The backplanel provides AC power input ports, RPS input port and an extension module slot. - Page 20 5. Extension port 2 status indicator 6. RPS link indicator 7. POE mode switchover button 8. Console port 9. 10/100Base-T adaptive Ethernet port 10. 10/100Base-T adaptive Ethernet port indicator 11. 10/100/1000Base-T adaptive Ethernet port 12. 100/1000Base-X SFP port 13. 10/100/1000Base-T adaptive Ethernet port indicator 14.
-
Page 21: Led Indicators
At present, the redundant power supply interface can be used together with the RPS150, RPS500, and RPS1100 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur on the switch or the switch may become damaged. - Page 22 Indicator Panel Identification Status Meaning port indicator Solid green The 1000 M link that the port connects to is Up. For the Blinking green Data at a rate of 1000 M are being transceived at M3000E-02SFP/GT the port. Solid yellow The 100 or 10 M link that the port connects to is Blinking yellow Data at a rate of 100 or 10 M are being...
- Page 23 Indicator Panel Identification Status Meaning Solid yellow The 100 or 10 M link that the port connects to is Blinking yellow Data at a rate of 100 or 10 M are being transceived at the port. Table 1-5 Indicators for the RG-S3760E-48/RG-S3760E-48-DC/ RG-S3760E-48P Indicator Panel Identification Status...
-
Page 24: Extension Modules
Data at a rate of 100 or 10 M are being transceived at the port. 1.5 Extension Modules The RG-S3760E series switch support the following modules: M3000E-02SFP/GT, M3000E-STACK. The M3000E-02SFP/GT module is used to extend 2 fiber/copper combo ports. The M3000E-STACK module is used for the RG-S3250E switch stack. -
Page 25: Chapter 2 Preparation Before Installation
Chapter 2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-S3760E series. The following safety suggestions do not cover all possible dangers. 2.1.1 Safety Precautions for Installing the System ²... -
Page 26: Static Discharge Damage Prevention
Do not stare into any optical port under any circumstances, as this may cause permanent damage to your eyes. 2.2 Installation Site Requirements The RG-S3760E series must be used indoors. To ensure the normal working and a prolonged durable life of the equipment, the installation site must meet the following requirements. -
Page 27: Cleanness Requirements
Temperature Relative Humidity 0ºC-50ºC 10%-90% The ambient temperature and humidity are measured at the point that is 1.5 m above the floor and 0.4 m before the equipment when there is no protective plate in front or back of the equipment rack. 2.2.3 Cleanness Requirements Dust poses a severe threat to the running of the equipment. -
Page 28: System Grounding Requirements
2.3 System Grounding Requirements A good grounding system is the basis for the stable and reliable operation of the RG-S3760E series. It is the chief condition to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding operations properly as required. -
Page 29: Emi Consideration
on the the cabinet, work station, or the equipment room's wall through line buckles and screws. In applications, the AC first enters the lightning line bank and then the switch. The lightning line banks are not provided and should be purchased by users as required. For the usage of lightning line banks, refer to their related manuals. - Page 30 The RG-S3760E series are not provided with a tool kit. Please prepare tools on your own.
-
Page 31: Chapter 3 Product Installation
Chapter 3 Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Procedure 3.2 Confirmations before Installation Before installation, please confirm the following points: ²... -
Page 32: Installing The Rg-S3760E Series
During the installation, place the front panel of the switch to the rack. For safety purposes, screw up the randomly distributed screws as shown in the following figure. 3.3.3 Mounting the Switch to the Wall The supplemented hangers of the RG-S3760E series support the installation on walls, as shown in the following figure. -
Page 33: Mounting The Switch To The Desktop
3.3.4 Mounting the Switch to the Desktop In several cases, users do not have the 19-inch standard cabinets. In this case, the most frequent method is to mount the switch to a clean workstation. Step 1:Attach the four adhesive rubber pads provided in the carton onto the indentations on the four corners at the bottom of the switch. -
Page 34: Chapter 4 System Debugging
Chapter 4 System Debugging 4.1 Establishing the Configuration Environment 4.1.1 Establishing the Configuration Environment Connect the PC to the console port of the switch through the console cable, as shown in 0. Figure 4-1 Schematic diagram of the configuration environment 4.1.2 Connecting the Console Cable Step 1: Connect one end of the DB-9 jack of the console cable to the serial port of the PC. - Page 35 The console cable is correctly connected; the terminal (can be a PC) used for configuration is already started; the parameters are already configured. 4.2.2 Checking after Power-on (Recommended) After power-on, you are recommended to perform the following checks to ensure the normal operation of follow-up configurations.
- Page 36 5.1 General Troubleshooting Procedure 5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the management Please contact Ruijie Networks interface login password Customer Service Department for technical support. The status indicator is not on after The power supply module does Check whether the power socket at the the switch is started.
- Page 37 The RPS power indicator is not on. The RPS power module in use is Replace the RPS power supply module not of the specified type. with one specified by Ruijie Networks. (for only the S3760E-24/48) The RPS power supply module is Replace the RPS power supply.
- Page 38 Appendix A: Connectors and Connection Media 1. 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. 1000The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m. 1000The 1000BASE-T port uses four pairs of wires for transmission, all of which must be connected.
- Page 39 2. Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Schematic diagram for optical fiber connection Switch Switch...
- Page 40 Appendix B Mini-GBIC Modules We provide appropriate 1000M SFP modules (Mini-GBIC) modules according to the types of interfaces of the switch modules. You can select the SFP module to suit your specific needs. The following models and technical specifications of some 1000M SFP modules are listed for your reference. Models and Technical Specifications of the Mini-GBIC (SFP) Module Models and technical specifications of the SFP module Optical...
