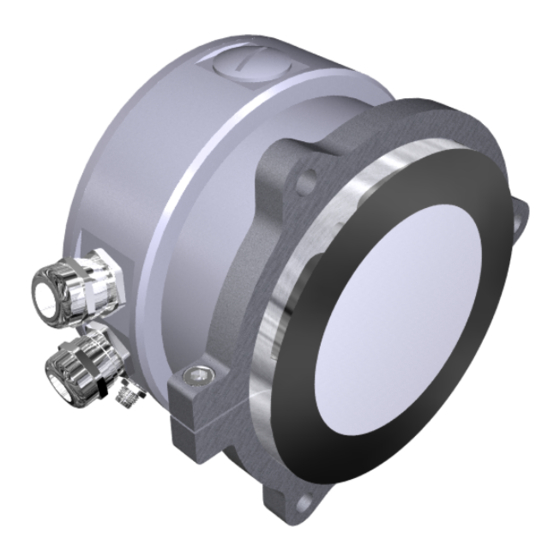

Berthold BTwave LB 571-02 Operating Manual

Microwave resonator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BTwave
LB 571-02
Operating Manual
68847BA2
Rev. No.: 00, 01/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTwave LB 571-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Berthold BTwave LB 571-02

Summary of Contents for Berthold BTwave LB 571-02

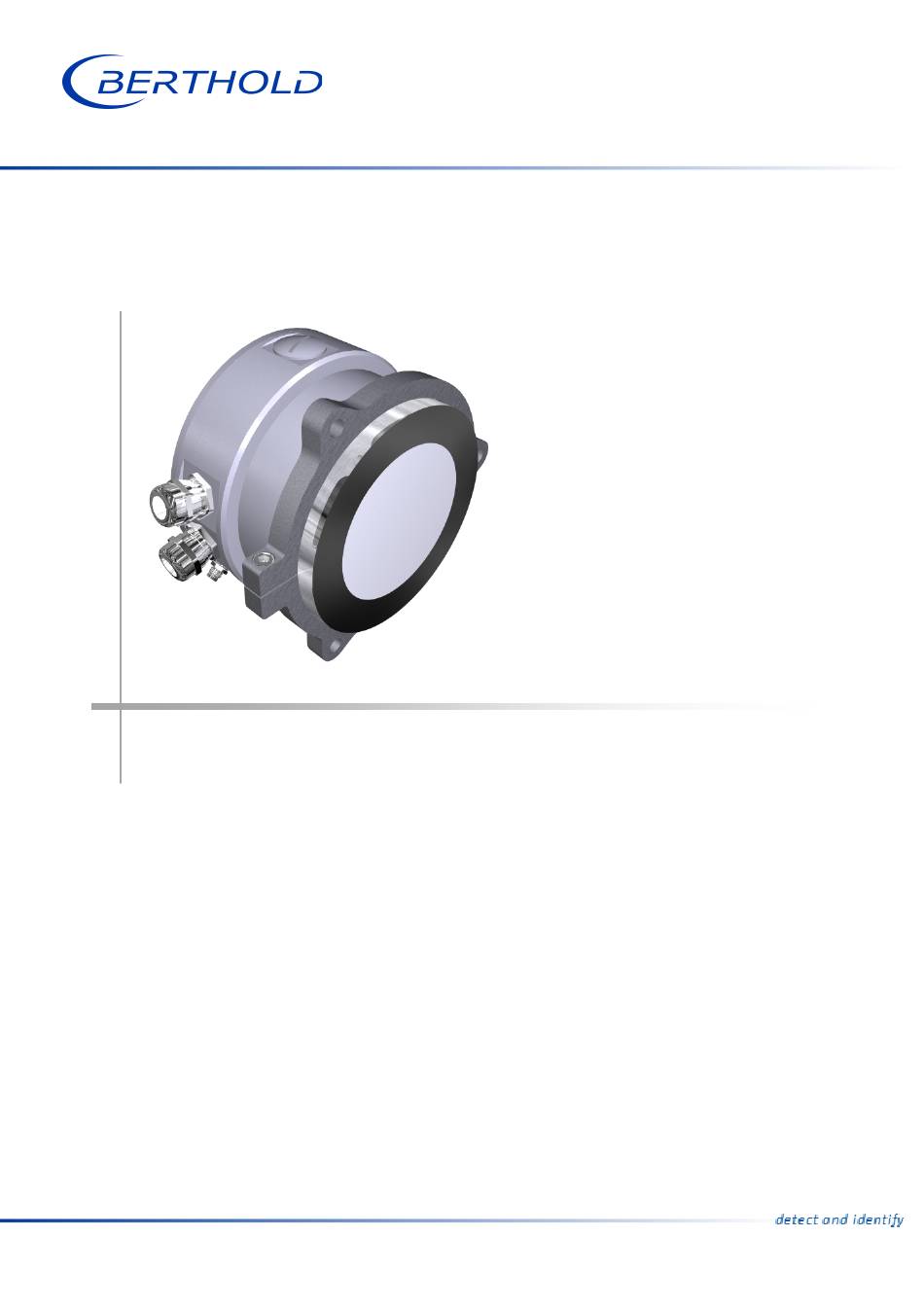

  • Page 1 BTwave LB 571-02 Operating Manual 68847BA2 Rev. No.: 00, 01/2020...
  • Page 3 Berthold Technologies GmbH & Co. KG Calmbacher Str. 22 75323 Bad Wildbad, Germany www.berthold.com Phone +49 7081 177-0 Fax +49 7081 177-100 nuclear@berthold.com...

  • Page 5: Table Of Contents

    LB 571 BTwave Table of Contents Table of Contents Important Information ..................3 Preliminary Remarks ..................... 3 Place of Storage ......................3 Target Group ........................ 3 Validity of the Operating Manual ................4 Copyrights ........................4 Convention ........................4 Definitions, terms, acronyms, abbreviations .............. 4 Symbols Used in the Operating Manual ..............
  • Page 6 Table of Contents LB 571 BTwave Error Codes and Alarms ..................41 Watchdog ........................41 Error codes ........................41 Alarm generation ....................... 42 Enabling alarms ......................42 Technical Information ..................45 Declaration of Conformity ................47 68847BA2 Rev.00, 10/2020...

  • Page 7: Important Information

    Important Information Preliminary Remarks The product, manufactured by BERTHOLD TECHNOLOGIES GmbH & Co. KG (here- inafter referred to as Berthold), is handed over to you complete and functionally reliable. These operating instructions show you how to: • set up the product •...

  • Page 8: Validity Of The Operating Manual

    LB 571 BTwave Validity of the Operating Manual The operating instructions become valid when the Berthold product is handed over to the operator. The version number and release date of this operating manual are stated in the footer. A change management is not offered by the manufacturer Berthold.

  • Page 9: Symbols Used In The Operating Manual

    LB 571 BTwave 1 Important Information Symbols Used in the Operating Manual In this manual, warning signs appear whenever there is a risk of personal injury or property damage. The security measures described must be observed to prevent hazards. j DANGER Indicates an imminent major hazard which, if not avoided, will result in seri- ous injury or death.

  • Page 10: Symbols Used On The Device

    The product must not be disposed of with household waste. Conformity Berthold declares, at its sole responsibility, that the design of this product, as mar- keted by Berthold, conforms to the relevant EU directives stated in the original declaration of conformity (see chapter 10Declaration of Conformity).

  • Page 11: Safety

    • Manipulating or bypassing existing safety devices. Berthold is liable and guarantees only that the device complies with its published specifications. If the product is used in a manner that is not described in this user's manual, the protection of the devices is compromised, and the warranty will be voided.

  • Page 12: Qualification Of Personnel

    Authorized persons Authorized persons have either been appointed to perform a task as a result of legal regulations or have been authorized by Berthold to perform specific tasks. . Operator’s Responsibilities The operator of the product must regularly train his personnel on the following topics: •...

  • Page 13: System Description

    LB 571 BTwave 3 System Description System Description The LB 571 microwave resonator for moisture measurement in real time has an integrated evaluation unit and is commissioned and calibrated using PC software. The resonator is kept at constant temperature by using PTC heaters inside device. •...

  • Page 14: Measuring Principle

    3 System Description LB 571 BTwave Measuring Principle Microwaves penetrate the bulk material, causing a rotation of the free water mol- ecules. Placing a moist material on the field of the sensors causes a decrease of the resonance frequency and quality factor of the resonator. Both effects are measured and used as a direct indication of the moisture content.

  • Page 15: Measurement Arrangements

    LB 571 BTwave 3 System Description Measurement arrangements The BT wave LB 571 microwave resonator can measure the moisture in bulk goods. Easy assembly via flange connection offers multiple installation options. Conveyor belt Chute Screw conveyor Figure 3 Measurement arrangements Conveyor belt The resonator can be mounted on a conveyor belt for (gliding carriage)

  • Page 16: External Connections

    3 System Description LB 571 BTwave External Connections The external connections are numbered on Figure 4 and described with text below the figure. E480152 V1.1 Material temperature sensor assembly E48157 V1.0 USB/RS422 adapter assembly (connection for service laptop) MicroSD-card slot under cap Electronics and its interfaces under cover Supply voltage input (24 VDC) I/O cabling...

  • Page 17: Installation

    NOTE This device is not explosion-proof and must not be used in hazardous areas. Only mounting accessories approved by Berthold may be used to install the device. The device are to be operated exclusively in a fixed installation. Unpacking / Scope of Delivery The system is delivered with the appropriate components, depending on the order.

  • Page 18: Mounting Of The System

    4 Installation LB 571 BTwave Mounting of the System The system can be mounted at a conveyor belt, in a screw conveyor or in a gliding carriage (3.3 Measurement arrangements). NOTE Please note the installation conditions of the respective measuring arrange- ment, see 3.3 Measurement arrangements Observe the permissible ambient conditions in chapter 9 Technical Infor- ...

  • Page 19: Commissioning

    LB 571 BTwave 5 Commissioning Commissioning Safety Instructions j DANGER Risk of fatal injury due to electric shock! Do not touch any live components or live areas of the system.  The installation may only be carried out by a qualified electrician. ...

  • Page 20: Cables And Wires

    • When laying the cables, make sure that mechanical damage to the conduc- tor insulation on sharp-edged or moving metal parts is excluded. • Use the Berthold approved cable or a cable with equivalent specifications for connection. Lay the connecting cables in such a way that •...

  • Page 21: Electrical Connection

    3x digital inputs, 2x digital outputs, 2x current outputs. These connections are described in this section. The inrush current of the resonator is 10 A. NOTE Only components approved by Berthold may be used to commission the de- vice. Hex socket screw M4x10...
  • Page 22 5 Commissioning LB 571 BTwave 3. Connect cables to the terminals according to the connection diagram. Ob- serve the information in chapter 5.2 Cables and wires. IMPORTANT Connectors marked on Figure 7 are in use. Pin number 1 is always on left side as shown on connector X8.
  • Page 23 LB 571 BTwave 5 Commissioning Name Colour Connection Comment Brown +3.3V Internal connections to Material temperature Black material temperature sensor (PWM) connector Blue TEMP1 +3.3V Ceramics temperature Internal conncetions to Black sensor (PWM) ceramics temperature sensor Blue TEMP2 Name Colour Connection Comment +24V...
  • Page 24 5 Commissioning LB 571 BTwave 68847BA2 Rev.00, 10/2020...

  • Page 25: Start Up And Calibration

    LB 571 BTwave 6 Start up and Calibration Start up and Calibration When resonator is powered up (24VDC/10A) and USB/RS422 adapter is connected to the PC, device can be operated by using the UI software. UI folder structure Figure 8 UI folder structure Meaning of the above folders are as follows: Bin: Executable UI and a General log-file.

  • Page 26: Setting Up Pc Connection

    6 Start up and Calibration LB 571 BTwave Setting up PC connection In order to operate resonator using the UI: 1. Connect USB/RS422 adapter to PC’s USB port. 2. Wait until PC has installed adapter drivers. 3. Open Device Manager and check via which COM port device is accessible. Figure 9 Device Manager COM ports 4.
  • Page 27 LB 571 BTwave 6 Start up and Calibration 6. Click Maintenance button. 7. A Login to maintenance pop-up window appears. 8. Login by typing the Password: pass1 and click OK. 9. Open Parameters/Windows tab. See Figure 8 below. Figure 12 Windows Parameters 10.

  • Page 28: Setting Device Parameters

    6 Start up and Calibration LB 571 BTwave Figure 14 Device parameters Setting device parameters Setting device time When connection to device is established, next step is to set PC time to device. It is explained below: 1. Login as shown in chapter 4.2. 2.

  • Page 29: Writing And Reading Product Parameters

    LB 571 BTwave 6 Start up and Calibration Writing and reading product parameters Device parameters can be saved to and read from device using Parameters tab and selecting Device. A comment explaines the function of each parameter Figure 16 Device parameters Load from device: Loads parameters from sensor FLASH memory to PC.
  • Page 30 6 Start up and Calibration LB 571 BTwave 13# AO2_scale_max (°C): Analog output channel 2 maximum material temperature (°C) value. Default 100 °C. 25# Product_choice: Product ID selection automatically from binary inputs or manually set by UI. 0=Auto (Selection made by binary inputs), 1=MAN (See Param #26).

  • Page 31: Sampling By Using Digital Input

    LB 571 BTwave 6 Start up and Calibration Sampling by using digital input Calibrating data is stored into calib_data –folder in SD-card. Calibration data can be written to the SD-card by toggling digital IO-line or trigger calibration sampling from UI software. If IO-line is toggled for example by pushing button connected to it, MCU starts saving calibration sample to the SD-card.

  • Page 32: Calibration

    6 Start up and Calibration LB 571 BTwave Calibration In order to have device measuring moisture content, it must be calibrated using the material it will be measuring. Refence samples should be taken covering the whole moisture range used at the plant. 6.7.1 Sampling Before starting with sampling, please enssure that the SD-card is inserted in the...

  • Page 33: Download Samples

    LB 571 BTwave 6 Start up and Calibration 6.7.2 Download samples When enough samples has been collected, they can be downloaded from device SD-card to the PC by going to Calibration tab (see Figure 24) and continuing as explained below: 1.

  • Page 34: Save Reference Values To Samples

    6 Start up and Calibration LB 571 BTwave 6.7.3 Save reference values to samples UI must have reference values for samples used in calculating moisture measure- ment parameters for the device. This is also done under Calibration tab and as shown below: Figure 21 Calibration view with samples 1.

  • Page 35: Calibrate Device

    LB 571 BTwave 6 Start up and Calibration 6.7.4 Calibrate device When reference values has been inserted, device can be calibrated as explained below: Figure 23 Calibration 1. Select samples (X) to be used in calibration as above 2. Click Calibrate… button 3.
  • Page 36 6 Start up and Calibration LB 571 BTwave The moisture calculation parameters are optimized by the UI for best correlation between the measured signals and the Lab-% values. The calculation parameters are shown in the quadratic box on the right. The moisture reading is based on multivariable density compensated measurement.
  • Page 37 LB 571 BTwave 6 Start up and Calibration Figure 26 Parameter History The green marked box appears under List of pending Material 1 parameters:. This is the saved calibration and its calculation parameters can be seen on the right side on the figure.
  • Page 38 6 Start up and Calibration LB 571 BTwave Figure 28 Activated parameters The activated calibration appears as a green marked box under History of active Material 1 parameters: 11. Finally click the blue Go to calibration button and the following view opens.

  • Page 39: Diagnostics

    LB 571 BTwave 7 Diagnostics Diagnostics Measurement diagnostics Measurement signals are shown on Diagnostics tab as shown on the next Figure. Figure 30 Diagnostics view. The Figure shows the main monitoring window for sensor operations. It shows dif- ferent signals collected from sensor, such as resonator frequency response, frequency, Q-value, attenuation, calculated moisture content (also shown on Mois- ture graph: red line=raw and green line=filtered), temperature reading (material and ceramic), digital input line status (I/O) and sensor error code generated by...
  • Page 40 7 Diagnostics LB 571 BTwave Figure 31 Flash history tab for online data downloading After end time or end of data is reached, downloading is finished and moisture of downloaded data is shown on the UI. It is possible to change data shown on graph from the dropdown list shown with arrow.

  • Page 41: Writing And Reading Product Parameters

    LB 571 BTwave 7 Diagnostics Writing and reading product parameters Recipe parameters are saved to internal FLASH memory after Activate Parameters is selected from UI. In addition recipe parameters are saved to SD-card parameters –folder. Parameters are never copied from SD-card to internal FLASH. Selecting Get Active Parameters loads recipe parameters from sensor FLASH memory to UI.

  • Page 42: Service Mode

    7 Diagnostics LB 571 BTwave Service Mode To update device firmware, serial number and to test I/O signals, device can be set to a service mode. To have these operations available, Toggle Service Mode button. Figure 20 shows the view when service mode is on. Figure 33 Service Mode ON view Different outputs can be tested by setting their bits/values and clicking Update val- ues button.

  • Page 43: Firmware Update

    LB 571 BTwave 7 Diagnostics Firmware update New firmware can be uploaded to sensor using UI software. It is done from Diag- nostics2 tab and toggling Service Mode ON. Then continue as follows: Figure 34 Browse for firmware file 1. Click Update device software 2.
  • Page 44 7 Diagnostics LB 571 BTwave 68847BA2 Rev.00, 10/2020...

  • Page 45: Error Codes And Alarms

    LB 571 BTwave 8 Error Codes and Alarms Error Codes and Alarms Watchdog It is possible to use on-chip hardware watchdog timer to recover software dead- locks. Watchdog timer enabled device_parameters (Watchdog_enable). Watchdog timer timeout is fixed to 5 seconds. Error codes There are following general error codes defined.

  • Page 46: Alarm Generation

    8 Error Codes and Alarms LB 571 BTwave Alarm generation Enabling alarms Error codes causing an alarm can be defined using device_parameters #70 (Alarm_mask). By setting corresponding bit high in mask defines that error is taken into account for alarm generation. Multiple errors can be defined by setting mul- tiple bits high.
  • Page 47 LB 571 BTwave 8 Error Codes and Alarms SENSOR_SD_CARD_XXX_ERR Check that SD-card is inserted. Change SD-card. SENSOR_PLL_CONFIG_ERR Check that parameters are ok. Try powering device off, if it does not help, change device. SENSOR_RTC_ERR Set device time to PC time. See chapter 6.3. SENSOR_WD_RESET_ERR Check that parameters are ok.
  • Page 48 8 Error Codes and Alarms LB 571 BTwave 68847BA2 Rev.00, 10/2020...

  • Page 49: Technical Information

    0.1 weight % (standard deviation) depending on product and process in calibrated measuring range Temperature range +0…65 °C (32…149 °F) Material temperature > 0 °C Microwave output power < 10 mW Measurement time: 10 ms If conditions differ, please contact Berthold. 68847BA2 Rev.00, 10/2020...
  • Page 50 9 Technical Information LB 571 BTwave 68847BA2 Rev.00, 10/2020...

  • Page 51: Declaration Of Conformity

    LB 571 BTwave 10 Declaration of Conformity Declaration of Conformity 68847BA2 Rev.00, 10/2020...
  • Page 52 We reserve the right to make changes in the course of further technical development. © BERTHOLD TECHNOLOGIES GmbH & Co. KG Language: English Printed in Germany 01/2020 Rev. No.: 00 BERTHOLD TECHNOLOGIES GmbH & Co. KG Calmbacher Str. 22 75323 Bad Wildbad Germany www.berthold.com...
