Item
Form factors of PCIe modules
Maximum power supplied per PCIe slot

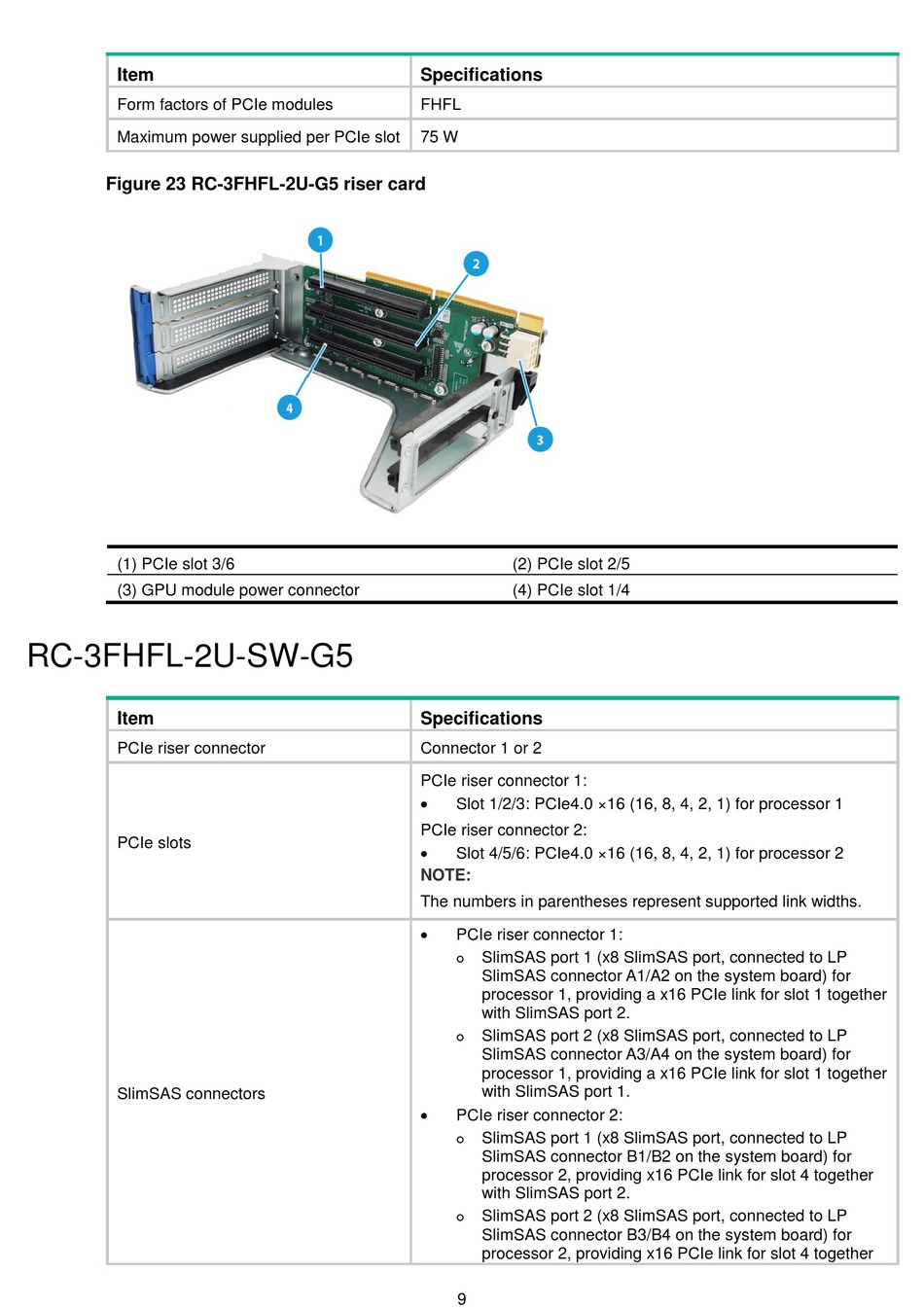

Figure 23 RC-3FHFL-2U-G5 riser card
(1) PCIe slot 3/6
(3) GPU module power connector

RC-3FHFL-2U-SW-G5

Item
PCIe riser connector
PCIe slots
SlimSAS connectors
Specifications
FHFL
75 W
(2) PCIe slot 2/5
(4) PCIe slot 1/4
Specifications
Connector 1 or 2
PCIe riser connector 1:
•
Slot 1/2/3: PCIe4.0 ×16 (16, 8, 4, 2, 1) for processor 1
PCIe riser connector 2:
•
Slot 4/5/6: PCIe4.0 ×16 (16, 8, 4, 2, 1) for processor 2
NOTE:
The numbers in parentheses represent supported link widths.
•
PCIe riser connector 1:
SlimSAS port 1 (x8 SlimSAS port, connected to LP

SlimSAS connector A1/A2 on the system board) for
processor 1, providing a x16 PCIe link for slot 1 together
with SlimSAS port 2.
SlimSAS port 2 (x8 SlimSAS port, connected to LP

SlimSAS connector A3/A4 on the system board) for
processor 1, providing a x16 PCIe link for slot 1 together
with SlimSAS port 1.
•
PCIe riser connector 2:
SlimSAS port 1 (x8 SlimSAS port, connected to LP

SlimSAS connector B1/B2 on the system board) for
processor 2, providing x16 PCIe link for slot 4 together
with SlimSAS port 2.
SlimSAS port 2 (x8 SlimSAS port, connected to LP

SlimSAS connector B3/B4 on the system board) for
processor 2, providing x16 PCIe link for slot 4 together
9
