Installing A Chassis Ear - H3C UniServer R4300 G5 User Manual

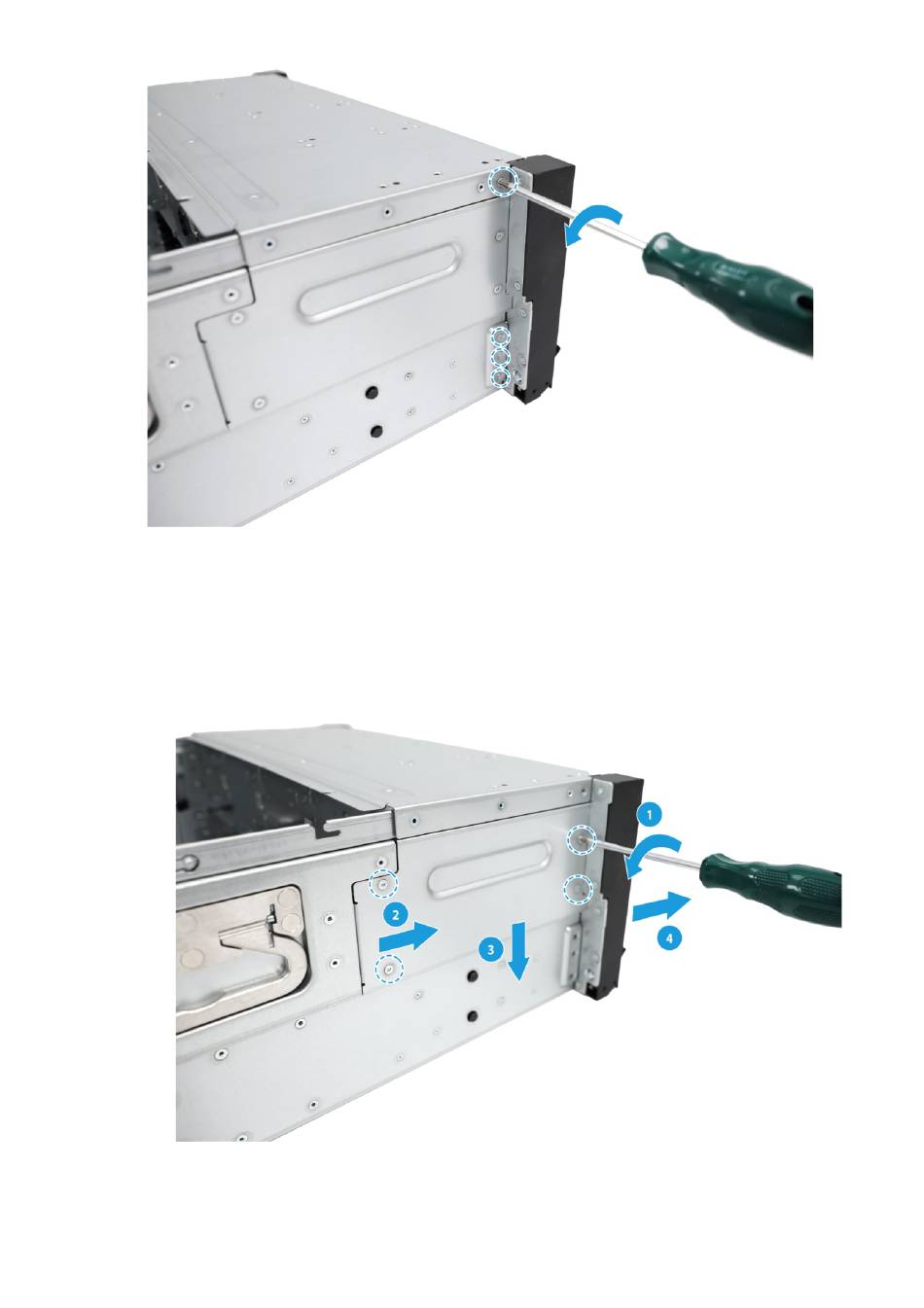

Figure 108 Removing the screws that secure the chassis ear
10. Remove the chassis ear, as shown in
a. Remove the four screws that secure the cable protection plate, as shown by callout 1.
b. Slide the plate towards the server front, and then remove the plate, as shown by callouts 2
and 3.
c. Take the chassis ear and the cable assembly out of the chassis, as shown by callout 4.
Figure 109 Removing the chassis ear

Installing a chassis ear

1. Install a chassis ear.
Figure 109.
