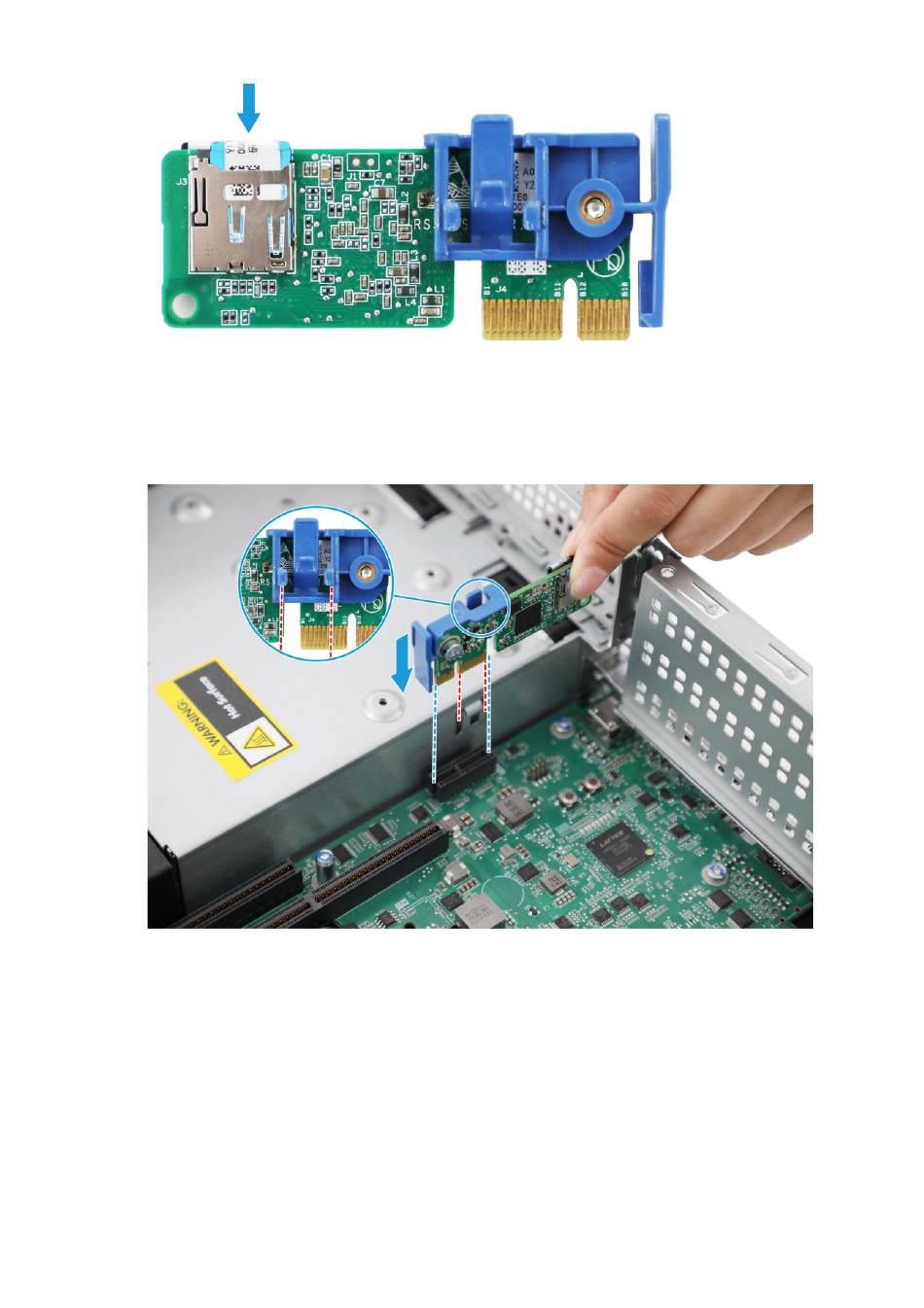

Figure 105 Installing an SD card
2. Install the dual SD card extended module on the server. Align the blue grooves in the extended
module with the standout on the side panel of the power supply cage, and insert the extended
module into the slot until you hear a click, as shown in
Figure 106 Installing the dual SD card extended module
3. Install the removed riser card cage.
4. Install the access panel. For more information, see
5. Rack-mount the server. For more information, see
6. Connect the power cord. For more information, see
7. Power on the server. For more information, see

Replacing a chassis ear

Replace a chassis ear if it fails or any of the components (for example, I/O components or VGA/USB
3.0 connector) fails.
Figure
"Installing the access
"Rack-mounting the
"Connecting the power
"Powering on the
94
106.
panel."
server."
cord."
server."
