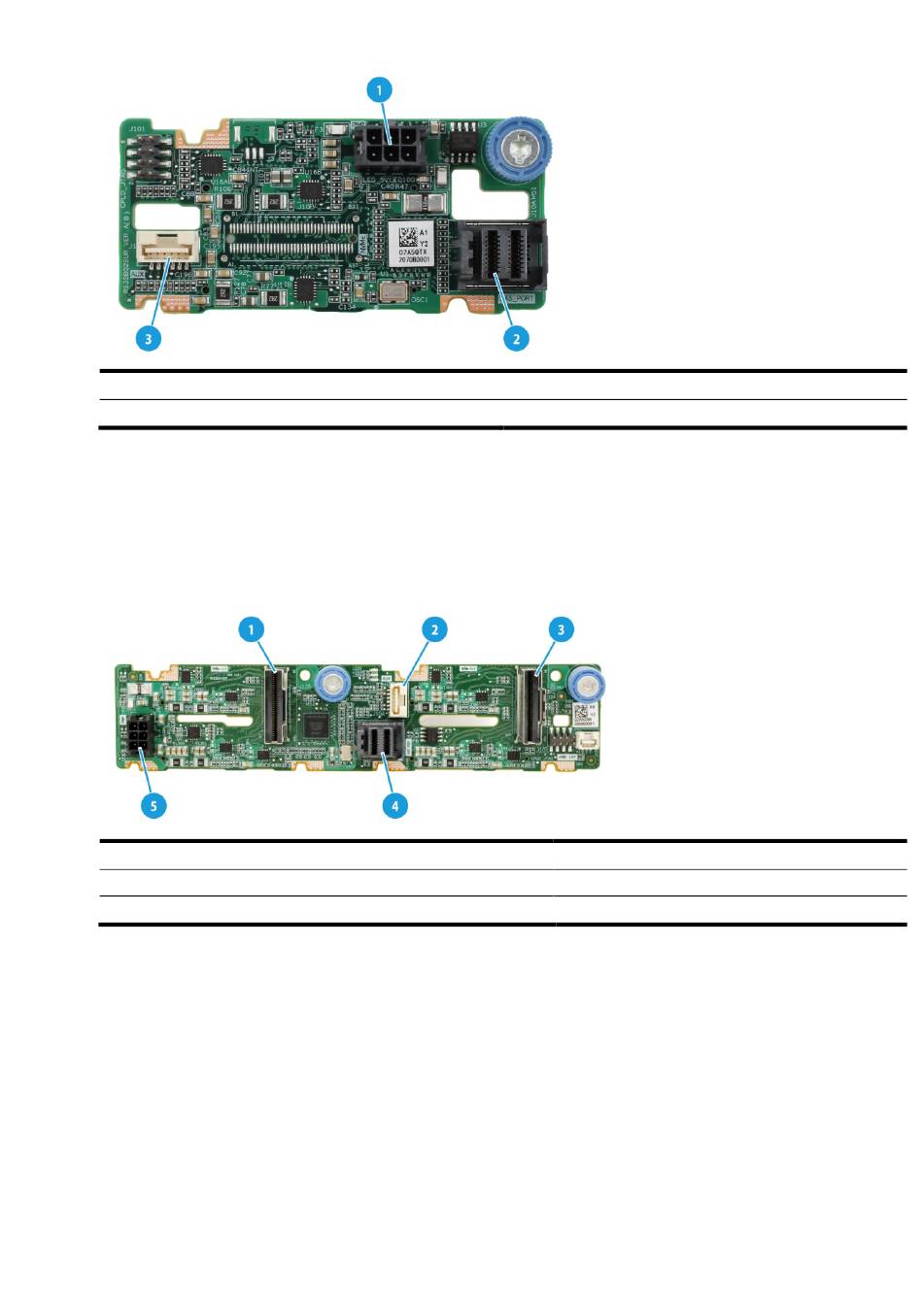

Figure 20 Rear 2SFF SAS/SATA drive backplane
(1) Power connector (PWR)
(3) AUX connector (AUX)

Rear 4SFF UniBay drive backplane

The PCA-BP-4SFF-4UniBay-2U-G5 rear 4SFF UniBay drive backplane can be installed at the
server rear to support four 2.5-inch SAS/SATA/NVMe drives.
Figure 21 Rear 4SFF UniBay drive backplane
(1) SlimSAS connector (x8 PCIe 4.0) (NVMe-3/4)
(3) SlimSAS connector (x8 PCIe 4.0) (NVMe-1/2)
(5) Power connector (PWR)

Riser cards

To expand the server with PCIe modules, install riser cards on the PCIe riser connectors.

Riser card guidelines

Each PCIe slot in a riser card can supply a maximum of 75 W of power to the PCIe module. You must
connect a separate power cord to the PCIe module if it requires more than 75 W of power.
If a processor is faulty or absent, the PCIe slots connected to it are unavailable.
The slot number of a PCIe slot varies by the PCIe riser connector that holds the riser card. For
example, slot 1/4 represents PCIe slot 1 if the riser card is installed on connector 1 and represents
(2) x4 Mini-SAS-HD connector (SAS PORT)
(2) AUX connector (AUX)
(4) x4 Mini-SAS-HD connector (SAS PORT)
