GPX4000LZ Glass Processor

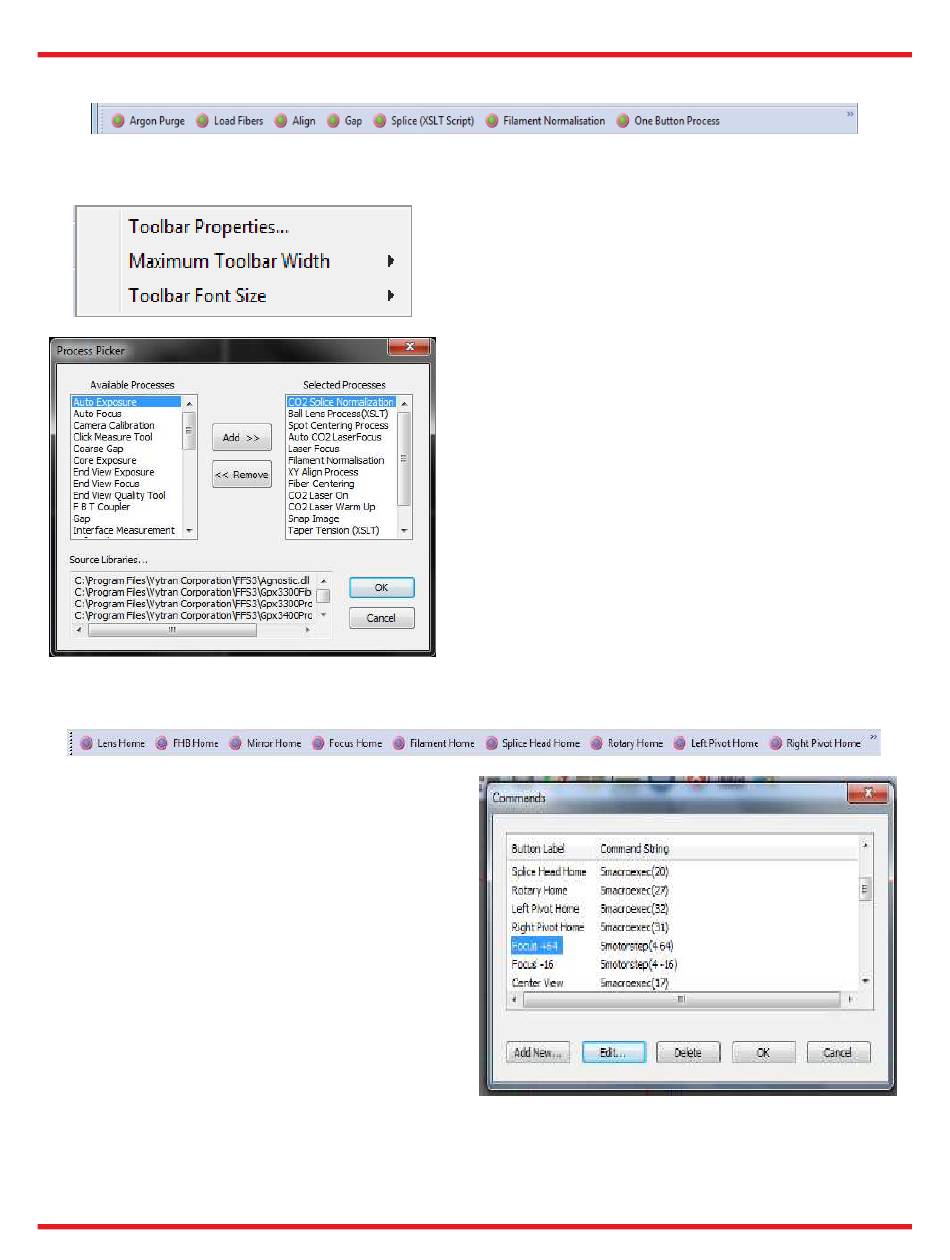

5.5.4 Process Bar

The Process Bar allows the user to execute built-in processes such as "Align," "Gap," and "Laser Warm-up."
Additional processes can be added. Right click on this bar and this menu will appear:

5.5.5 Macro Bar

The macro bar contains buttons that execute various
macros and low-level commands. Again, in this
document and in FFS3, the term "macro" is used to
denote low-level machine actions that the user can
edit, or even create from scratch.
The macro bar can be edited using a right click on
the empty space on the bar or from the Configuration
menu, clicking on "Toolbars," then "Edit Macro Bar."
The "Command" window will allow the user to add,
edit, or delete the macro shown in the Macro Bar.
Note that it is possible to make buttons for one-or-
two line commands in the macro bar as well as
buttons for entire macros. Please contact Vytran for
more assistance.
Page 28
Select "Toolbar Properties" to access the "Process Picker"
window.
The Process Bar can also be edited from the Configuration
menu. Click "Toolbars," then "Edit Processes Bar." The
"Process Picker" window is used to add or remove
processes from the Processes bar.
Chapter 5: Operation
TTN102049-D02
