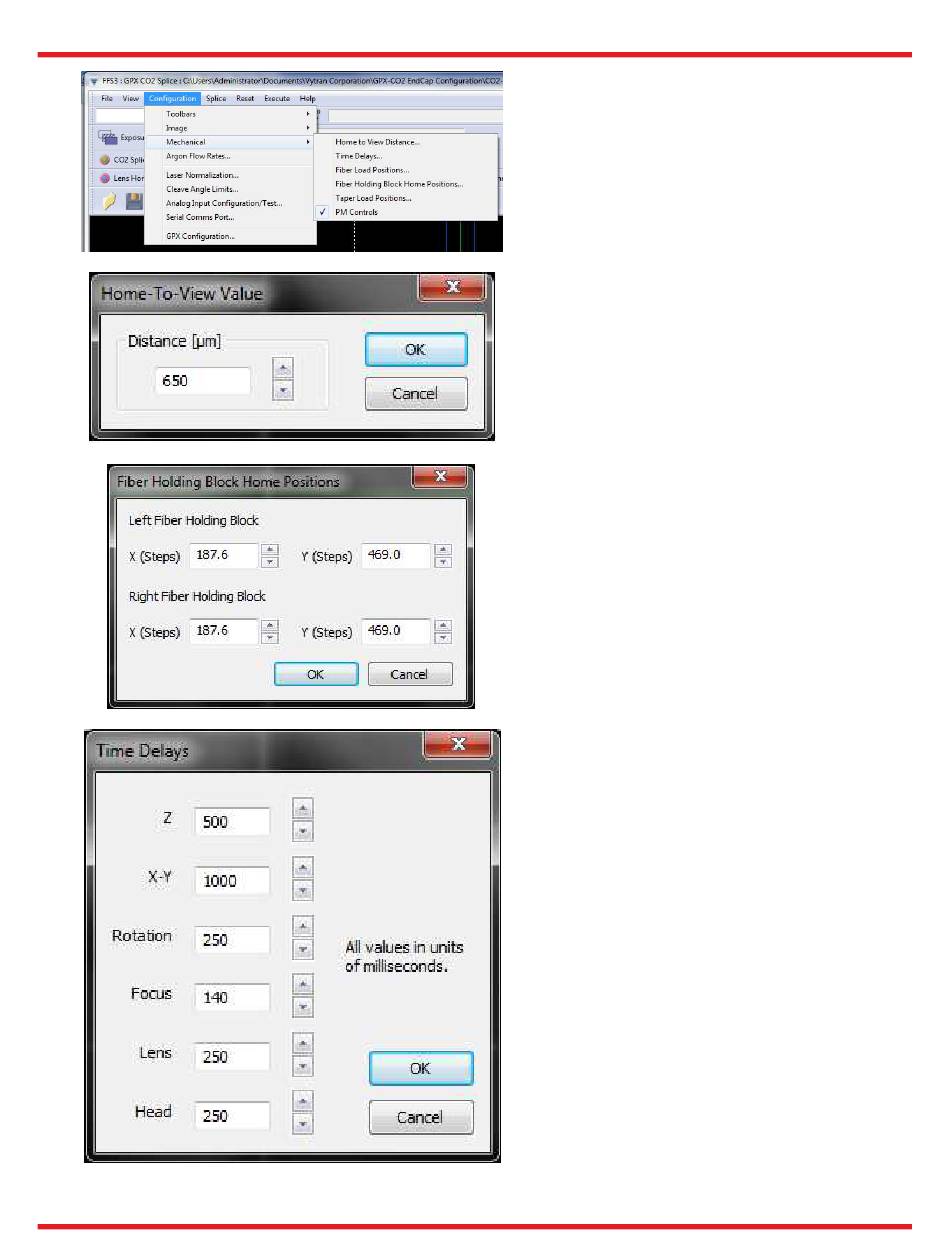

The Mechanical submenu provides access to
machine configuration settings
Home to View Distance sets the distance
between the splice heads home position and its
viewing position.
The Fiber Holding Block Home Positions
determine the final positions the X and Y axis
motors move to after being homed.
Time Delays represent the mechanical settling
time constants of the GPXs moving parts and
are preset. The user should not change these
values.
