Returning to the main Configuration menu:

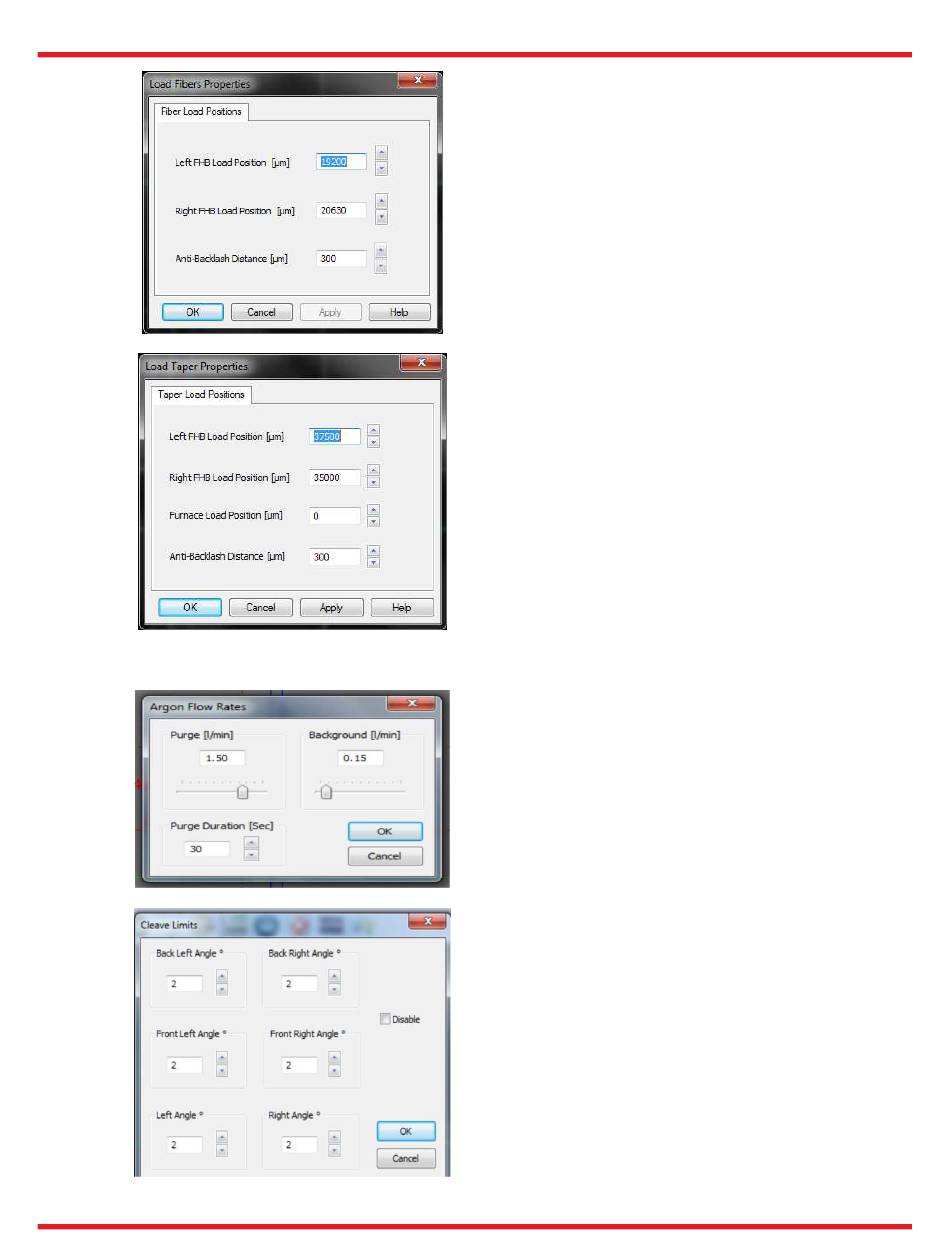

Load Fibers Properties and Load Taper
Properties allow the user to set the fiber holding
block's Z position used for loading the fiber
prior to performing a splice or taper.
Argon flow has three rates. The purge and
background rates are controlled in this window,
and argon flow rate for the splice is set in the
splice property window
The system can measure the cleave angle of
the fibers before splicing them together. The
user can set the cleave angle limits to reject a
poorly cleaved fiber.
