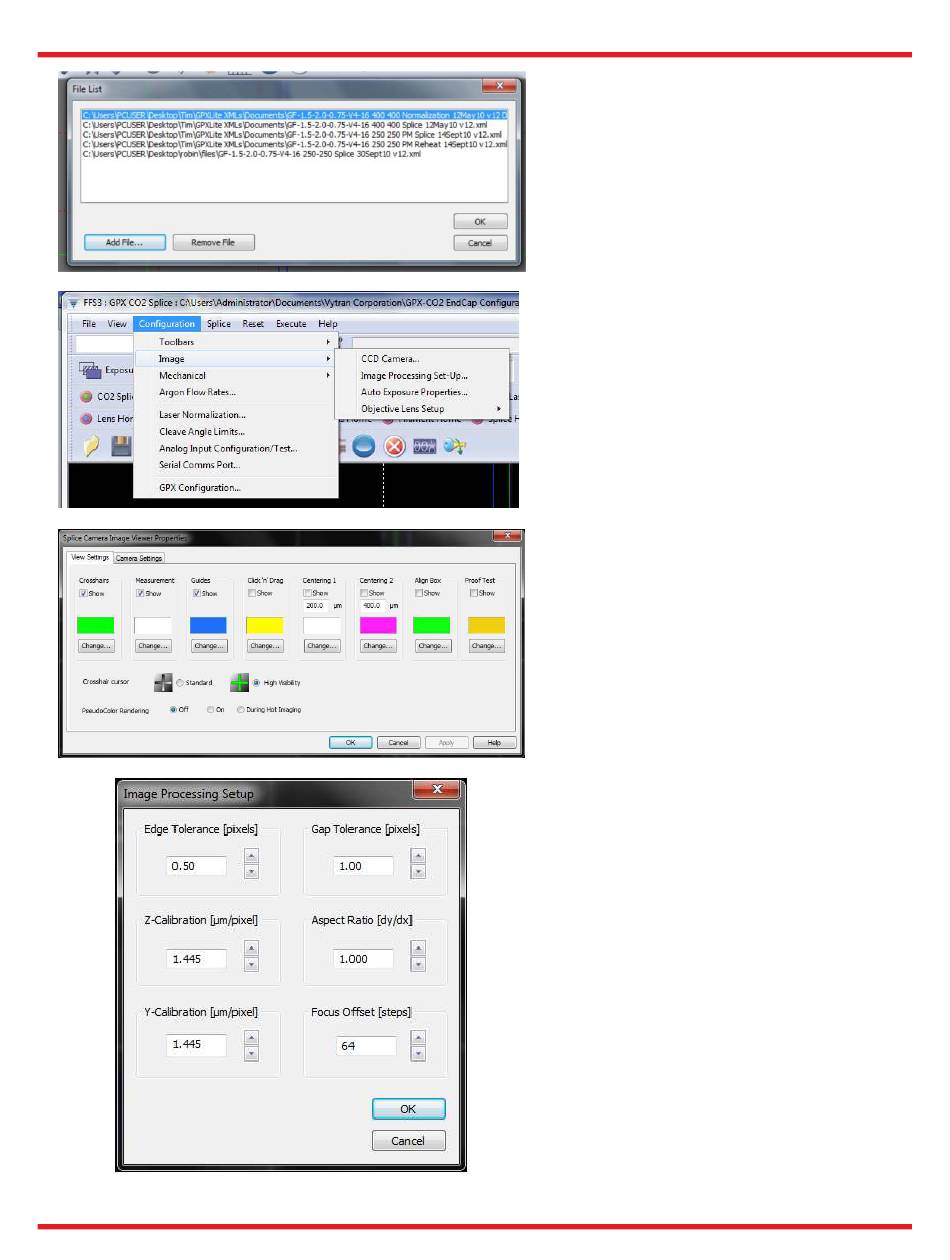

Selecting the Edit Quick-Open File Bar item
allows the user to add or remove splice files
from the Quick-Open File Bar.
The Image submenu provides access to all
properties related to the camera and imaging.
In the CCD Camera property window, the view
settings allow the user to control the color and
visibility of all the cursors and guides in the
image window. Camera settings are preset and
the user should not change these values.
Image Processing set-up gives the user access
to the edge alignment and gap tolerance
settings together with the image plane
calibration settings.
