GPX4000LZ Glass Processor
The following table lists the standard graphite filament types as a function of the fiber size and application.
Item # Filament Material
FTAV2
FTAV4
FTAV5
FTAV6
FTAT3
FTAT4
FRAV1
FRAV3
FRAV5

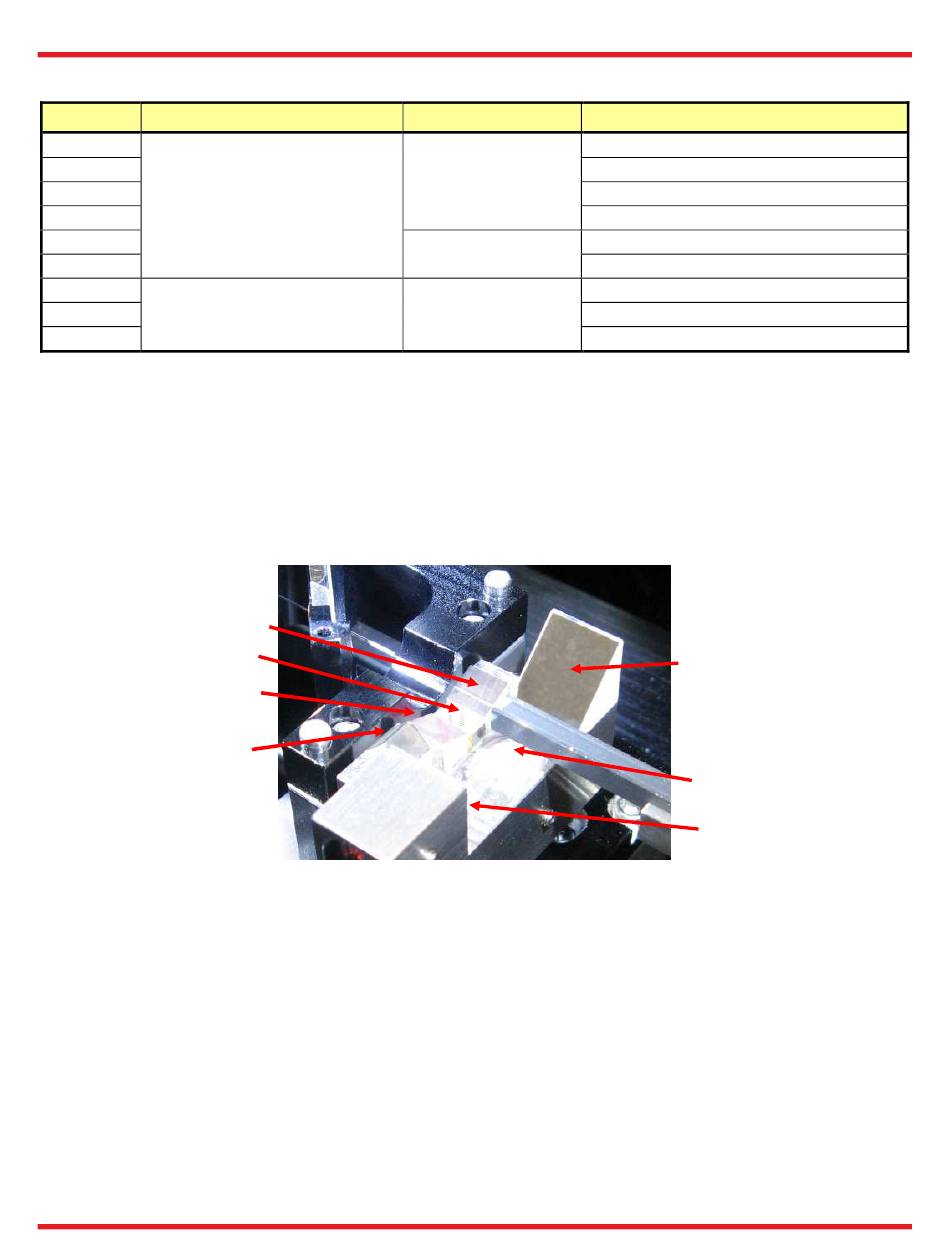

3.4.5 Mirror Tower

The mirror tower houses three mirrors and an LED. The first set of two mirrors makes it possible to view the sides
of the fiber. They provide the "Front View" and "Back View" when using the 5X and 10X objective. A second larger
Side mirror allows viewing of the "Side View" when using the 2X objective. The other set of mirrors formed as a
wedge are used to view the ends of the fibers. The LEDs provide backlighting when viewing the fiber directly in
"Center View" for 5X and 10X and, "Top View" and "Side View" with 2X objectives. The Mirror Tower moves in the
X-axis independently, providing the ability to view both the side view and end view of the fibers. The Mirror Tower
also moves with the furnace assembly in the Z-axis to allow for the 2X position viewing.
Back-View Mirror
Center-View LED
Front-View Mirror
End-View Mirrors
Page 12
Graphite
Iridium
Figure 13
Application Cladding Diameter (Min/Max)
Splice
Tapering
Splice
Mirror Tower
Chapter 3: Description
80 µm / 250 µm
125 µm / 600 µm
250 µm / 1000 µm
400 µm / 1300 µm
250 µm / 1500 µm
400 µm / 1800 µm
≤200 µm
≤400 µm
250 µm / 1050 µm
Side-View Mirror for 2X
Top-View LED for 2X
Side-View LED for 2X
