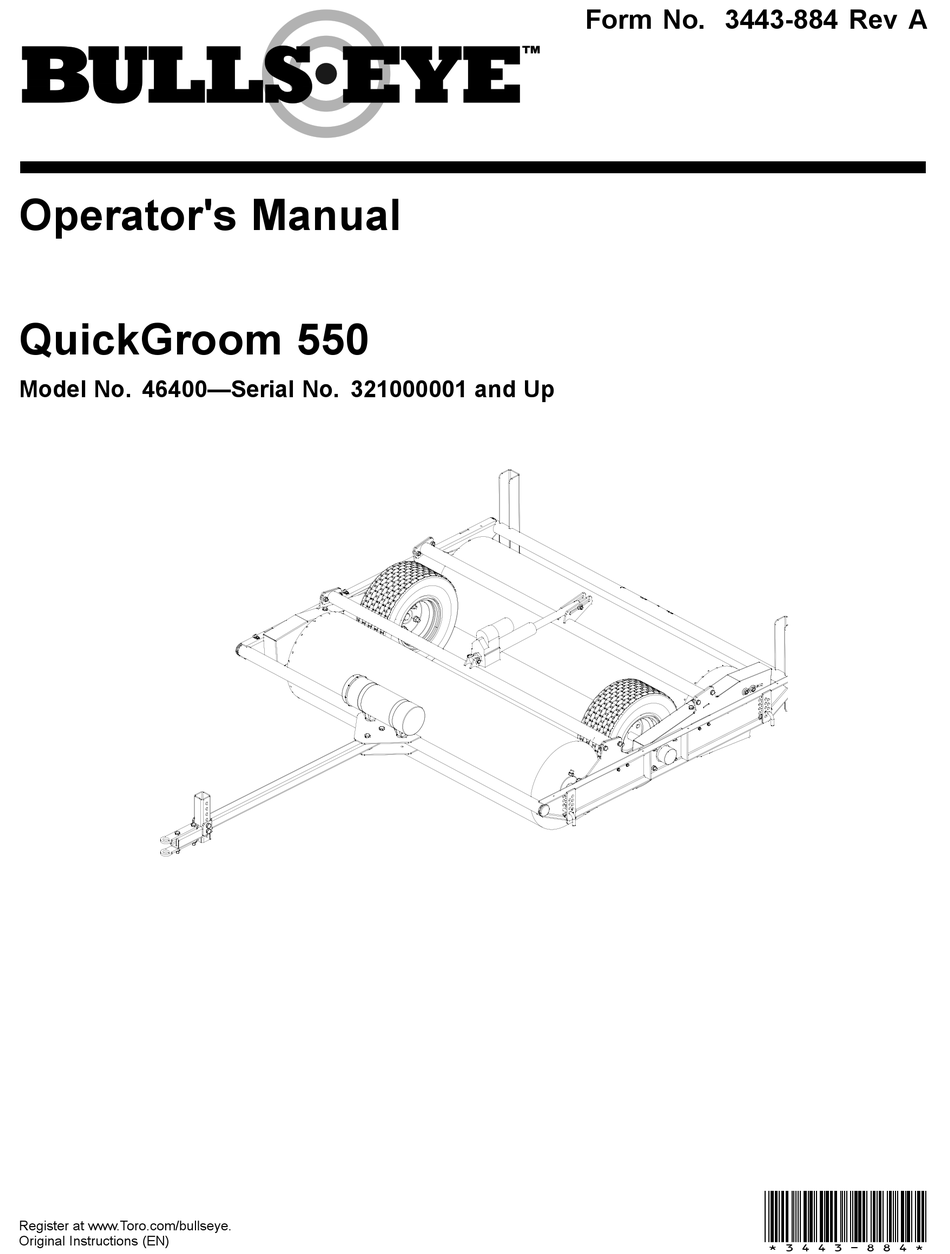

  • Page 1 Form No. 3443-884 Rev A Operator's Manual QuickGroom 550 Model No. 46400—Serial No. 321000001 and Up *3443-884* Register at www.Toro.com/bullseye. Original Instructions (EN)
  • Page 2 Write the numbers in the space provided. g346742 Figure 1 1. Model and serial number location © 2021—The Toro® Company Contact us at www.Toro.com/bullseye. 8111 Lyndale Avenue South Printed in the USA Bloomington, MN 55420...

  • Page 3: Table Of Contents

    Contents Safety Safety ............... 3 General Safety General Safety ........... 3 Safety and Instructional Decals ......4 This product is capable of causing personal injury. Setup ................ 5 Always follow all safety instructions to avoid serious Removing the Attachment from the personal injury.

  • Page 4: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal105-0698 105-0698 1. Warning—read the Operator’s Manual. decal133-8061 133-8061 decal144-7905 144-7905 1.

  • Page 5: Setup

    Setup Attach lifting cables to the lifting eyes on both sides of the machine. Lift the attachment and pallet off the ground 50 Removing the Attachment mm (2 inches). from the Pallet Gently lower the attachment in a controlled way as shown in Figure 3 until it is on the ground.

  • Page 6: Inspecting The Machine

    Inspecting the Machine Product Overview Checking the Traction Unit Controls Requirements Brush switch Use the following list as a reference: • Refer to Specifications (page 7) for the minimum Use the switch to raise and lower the brushes. horse power and minimum lifting capacity for the Important: Remove the hairpin cotter and pin traction unit.

  • Page 7: Specifications

    Shut off the machine, shut off the engine and Authorized Service Dealer or authorized Bullseye remove the key of the traction unit, and wait distributor or go to www.Toro.com/Bullseye for a list of for all moving parts to stop before making any all approved attachments and accessories.

  • Page 8: Connecting The Attachment To A Traction Unit

    Connecting the Attachment Connect the positive cable (red clamp) to the positive (+) battery post of the traction unit. to a Traction Unit WARNING Position the attachment and traction unit on a level surface. Incorrect battery cable routing could damage the machine and cables, causing Carefully drive the traction unit in reverse until sparks.

  • Page 9: Adjusting The Working Depth

    Remove the 2 storage stands from the rear of the attachment. g349524 Figure 9 1. Nut (4) 3. Bolt (4) 2. Storage stand g340431 Figure 10 Adjusting the Working 1. Pin Depth Raise or lower the brushes to the desired Raise the brushes to the highest position using working height and install the pins and hairpin the electrical switch box.

  • Page 10: Adjusting The Brush Angles

    Adjusting the Brush Angles During Operation You can adjust the brush angles so that any During Operation Safety accumulated material (e.g., sand, rubber, etc.) collects on 1 side of the attachment. Drive in a circular pattern to brush in the material. General Safety Park the machine on a level surface.

  • Page 11: Operating The Attachment

    – Wait for all moving parts to stop before leaving attachment while operating on slopes can cause the machine. the machine to become unstable. • Do not operate the machine when there is the risk • Use extreme caution with other attachments. of lightning.

  • Page 12: After Operation

    Removing the Attachment After Operation Park the machine on a level surface. After Operation Safety Raise the brushes. Engage the parking brake, shut off the engine, • Park the traction unit on a level surface; engage and remove the key from the traction unit. the parking brake of the traction unit;...

  • Page 13: Maintenance

    Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the roller bearings and driveline. • Grease the attachment. Every 50 hours • Check the condition of the chains; replace the chains or chain wheels if worn. • Check the chain tension. CAUTION If you leave the key in the switch, someone could accidently start the engine and seriously injure you or bystanders.

  • Page 14: Tensioning The Chains

    Grease the 4 roller bearings and the 2 wheel Remove the chain guard. bearings. g347146 Figure 14 g346258 Figure 16 1. Chain guard 3. Washer (2) Wipe up any excess grease. 2. Bolt (2) Lubricate the 2 chains using chain lubricant. Loosen the nuts on the chain wheel and adjust the wheel in the slot until the chain is taut.

  • Page 15: Storage

    Storage Storage Safety • Before adjusting, cleaning, storing, or repairing the machine, park the it on a level surface; engage the parking brake of the traction unit; shut off the engine; remove the key; and wait for all movement to stop before leaving the traction unit. •...

  • Page 16: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The attachment kicks up too much 1. The working depth is too deep. 1. Use a more shallow working depth. material. 2. The driving speed is too fast. 2. Use a slower driving speed. The attachment kicks up too little material.
  • Page 17 Notes:...
  • Page 18 Notes:...
  • Page 19 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
  • Page 20 Warranty Statement One-Year Limited Warranty Conditions and Products Covered Parts Your Bullseye product (“Product”) is warranted to be free from defects in Parts scheduled for replacement, as required maintenance, are covered for materials or workmanship for 1 year. Where a warrantable condition exists, the same warranty period as the product warranty.
