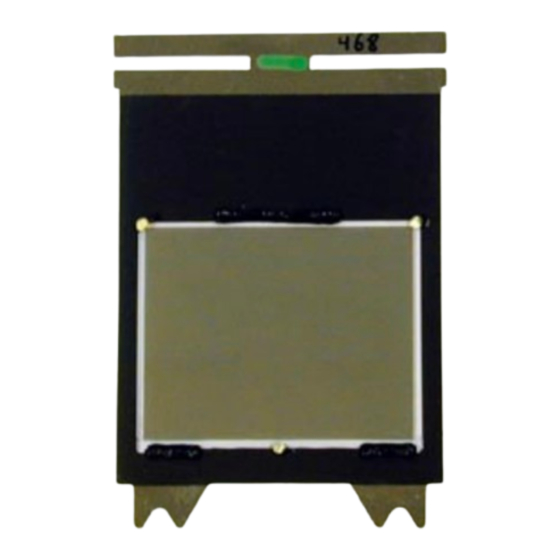

- Page 1 BARCO PROJECTION SYSTEMS ANALYSER 6500 Kit R817211K R8172112K R820349K R8172122K R8172121K R817214K R821060K R8172132K INSTALLATION MANUAL KIT ANALYSER FOR 6500/6400I, RSIM6(HB/HBMLA/LL) & HELIOS PROJECTORS Date : Rev : Art. No. : 151101 R5976207...
- Page 2 Produced by BARCO NV, November 2001. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
- Page 3 Safety This procedure is intended for use only by qualified service technicians who have been trained and authorized by BARCO ! Hot Surface Switch the projector to stand by and let it cool down for at least 15 minutes before starting with the Analyser replacement.
- Page 4 6300/6400 6500/6400i SIM6 SIM6MLA SIM6HB SIM6HB MLA SIM6LL HELIOS Analyser Red: R817211K Analyser Green: R820349K Analyser Gr SSS: R8172121K Analyser Bleu: R821060K Analyser Red: R8172112K Analyser Green: R8172122K Analyser Gr SSS: R817214K Analyser Bleu: R8172132K BARCO ——————————————————— 4 ————————————— Projection Systems...
- Page 5 Open both lens locks by pulling them backwards. Take the lens out of the lens house. Illustrations on Removing the Lens Image 1 Motor part Fixation screws Lens lockings Image 2 To be continued on next page. BARCO ——————————————————— 5 ————————————— Projection Systems...
- Page 6 To remove the top cover, follow the next procedure: Top Cover Step Action Image Pull the 3 rubber sealing pieces. Turn out the 3 fixing screws. Take off the top cover. Illustrations on Top Cover Removal Image 1 Image 2 BARCO ——————————————————— 6 ————————————— Projection Systems...
- Page 7 Turn out the screws retaining the little plate A Remove the little plate Turn carefuly the remaining screws out , be aware not to drop these screws into the apparatus. Remove the EMC plate Illustrations Image 1 Image 2 BARCO ——————————————————— 7 ————————————— Projection Systems...
- Page 8 Action Image Unplug the power cable. Loosen both fixing screws down under by inserting Philips screwdriver with a shaft of minimum 150 mm. Slide out the assembly very carefully. Illustration Power cable Cable connectors BARCO ——————————————————— 8 ————————————— Projection Systems...
- Page 9 Press very carefully on both sides of the indicated points to unlock. Press to unlock Pull out the cable (see image 1). connector cable Connector Press to lock Illustration To be continued on next page. BARCO ——————————————————— 9 ————————————— Projection Systems...
- Page 10 Turn out the 4 fixing screws with Philips screwdriver. Take off the unit. Turn out the 4 fixing screws with a nutdriver 5.5 o flat screwdriver Take off the metal holder Illustration Image 1 Image 2 Image 3 BARCO ——————————————————— 10 ————————————— Projection Systems...
- Page 11 Analyser Position The analyser can be found between the LCD panel and the X-cube (see image 1) Red side X-cube Green side X-cube Blue side X-cube Illustration Image 1 To be continued on next page. BARCO ——————————————————— 11 ————————————— Projection Systems...
- Page 12 Free the analyser by pushing it backwards an pulling it out, therefore use the thumb, the index and the middlefinger. Slide out the analyser carefully. Avoid making scratches into the LCD panel. Illustration Image 1 Image 2 BARCO ——————————————————— 12 ————————————— Projection Systems...
- Page 13 Hook the bottom side in the gap between the metal holder and the X-cube. Push with both fingers as shown on the image until the 1 (next analyser hooks on the 2 clips . page) Illustration Image 1 To be continued on next page BARCO ——————————————————— 13 ————————————— Projection Systems...
- Page 14 Mounting the Analyser (Continued) Illustration Image 1 BARCO ——————————————————— 14 ————————————— Projection Systems...
- Page 15 Turn in the 4 fixing screws with a nutdriver or flat screw- driver. Put the adjustment unit on its place. Secure this position with the 4 fixing screws (Philips screwdriver). Illustration Image 2 Image 1 To be continued on next page. BARCO ——————————————————— 15 ————————————— Projection Systems...
- Page 16 Connection of the X-Cube. Step Action Illustration Insert the cable (see image). Press to unlock Press very carefully on both sides of the indicated points to lock. connector cable Connector Press to lock Illustration BARCO ——————————————————— 16 ————————————— Projection Systems...
- Page 17 Step Action Illustration Insert the cable into the connector. Press to unlock Press very carefully on both sides of the indicated points to lock. connector Mount the power cable cable Connector Press to lock BARCO ——————————————————— 17 ————————————— Projection Systems...
- Page 18 Turn in the indicated screws. Put the little plate A back on its place and fix it with the 2 screws Fix the cable B with its screw Turn the remaining screws in, Illustrations Image 1 Image 2 BARCO ——————————————————— 18 ————————————— Projection Systems...
- Page 19 Put the top cover on the projector Turn in the 3 fixing screws. Cover the fixing screws with the rubber sealing pieces. Illustrations on Top Cover installation Image 1 To be continued on next page. Image 2 BARCO ——————————————————— 19 ————————————— Projection Systems...
- Page 20 If not, turn the lens a little. While pushing down, tighten wing bolts (B) firmly to ensure good functioning of safety latches and motorization. Reinstall the lens cover. Illustrations on mounting the Lens Image 1 Image 2 BARCO ——————————————————— 20 ————————————— Projection Systems...
