BONFIGLIOLI BMD Series Installation Use And Service Manual page 10

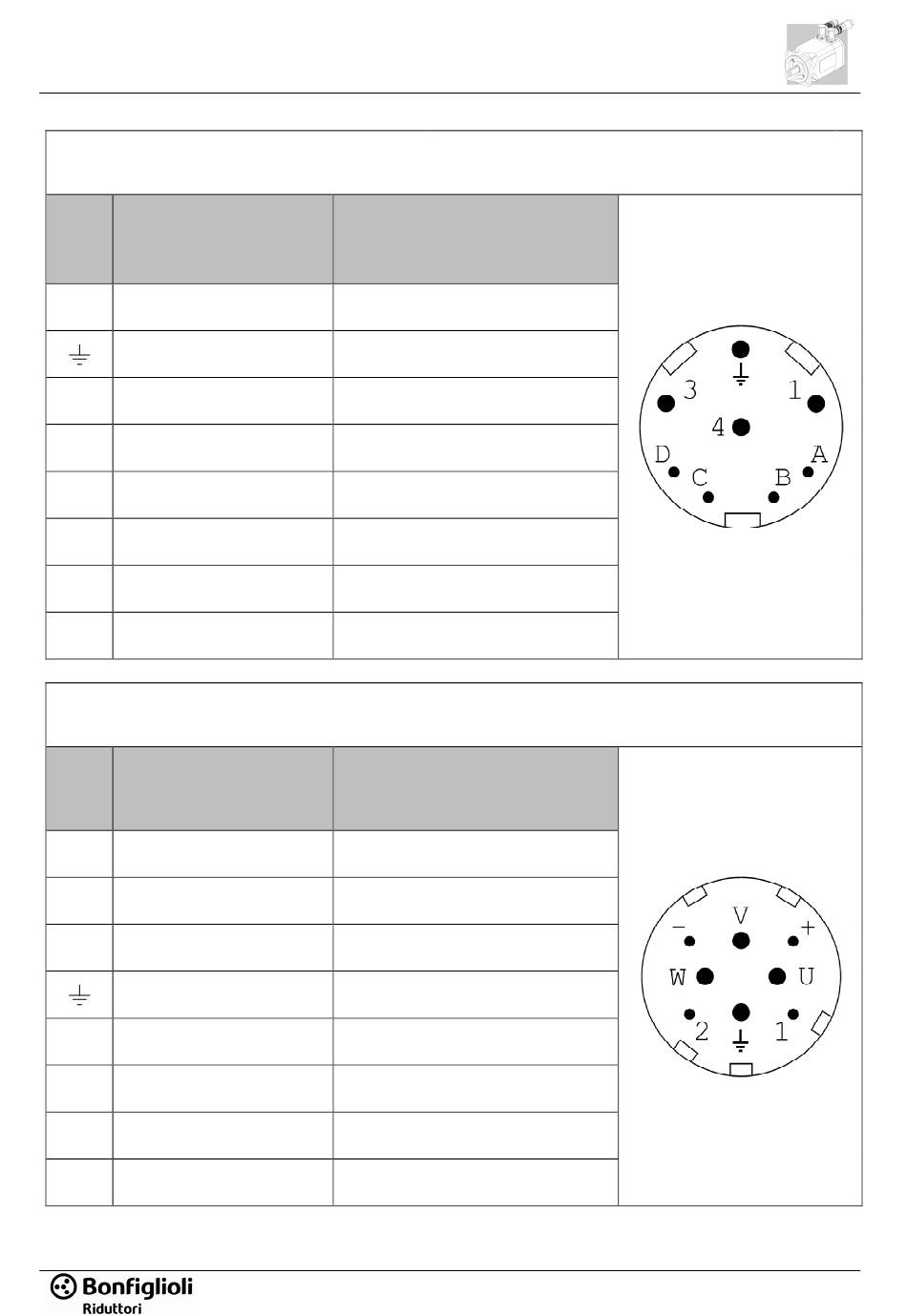

Layout connettore e cavo di Potenza / Power cable and connector layout
MOTORI / MOTORS: BMD65...145 SENSORLESS WITH CONNECTOR
DESCRIZIONE
PIN
DESCRIPTION
1 Fase U / Phase U
Terra/ Earth
3 Fase W / Phase W
4 Fase V / Phase V
A Ptc + / Kty +
B Ptc - / Kty -
C Freno + / Brake +
D Freno - / Brake -
Layout connettore e cavo di Potenza / Power cable and connector layout
MOTORI / MOTORS: BMD170 SENSORLESS WITH CONNECTOR
DESCRIZIONE
PIN
DESCRIPTION
U Fase U / Phase U
V Fase V / Phase V
W Fase W / Phase W
Terra/ Earth
1 Ptc + / Kty +
2 Ptc - / Kty -
+ Freno + / Brake +
- Freno - / Brake -
COLORE COND. IN CAVO
CABLE LEAD WIRE COLOR
Cable MPC XX XXX XX C3
Nero / Black - L1 / 1 / U
Giallo - Verde
Yellow - Green
Nero / Black - L3 / 3 / W
Nero / Black - L2 / 2 / V
Bianco / White or
Nero / Black - 5
Nero / Black - 6
Nero / Black – 7
Nero / Black - 8
COLORE COND. IN CAVO
CABLE LEAD WIRE COLOR
Cable MPC XX XXX XX C4
Nero / Black - L1 / 1 / U
Nero / Black - L2 / 2 / V
Nero / Black - L3 / 3 / W
Giallo - Verde
Yellow - Green
Bianco / White or
Nero / Black - 5
Nero / Black - 6
Nero / Black – 7
Nero / Black - 8
10
