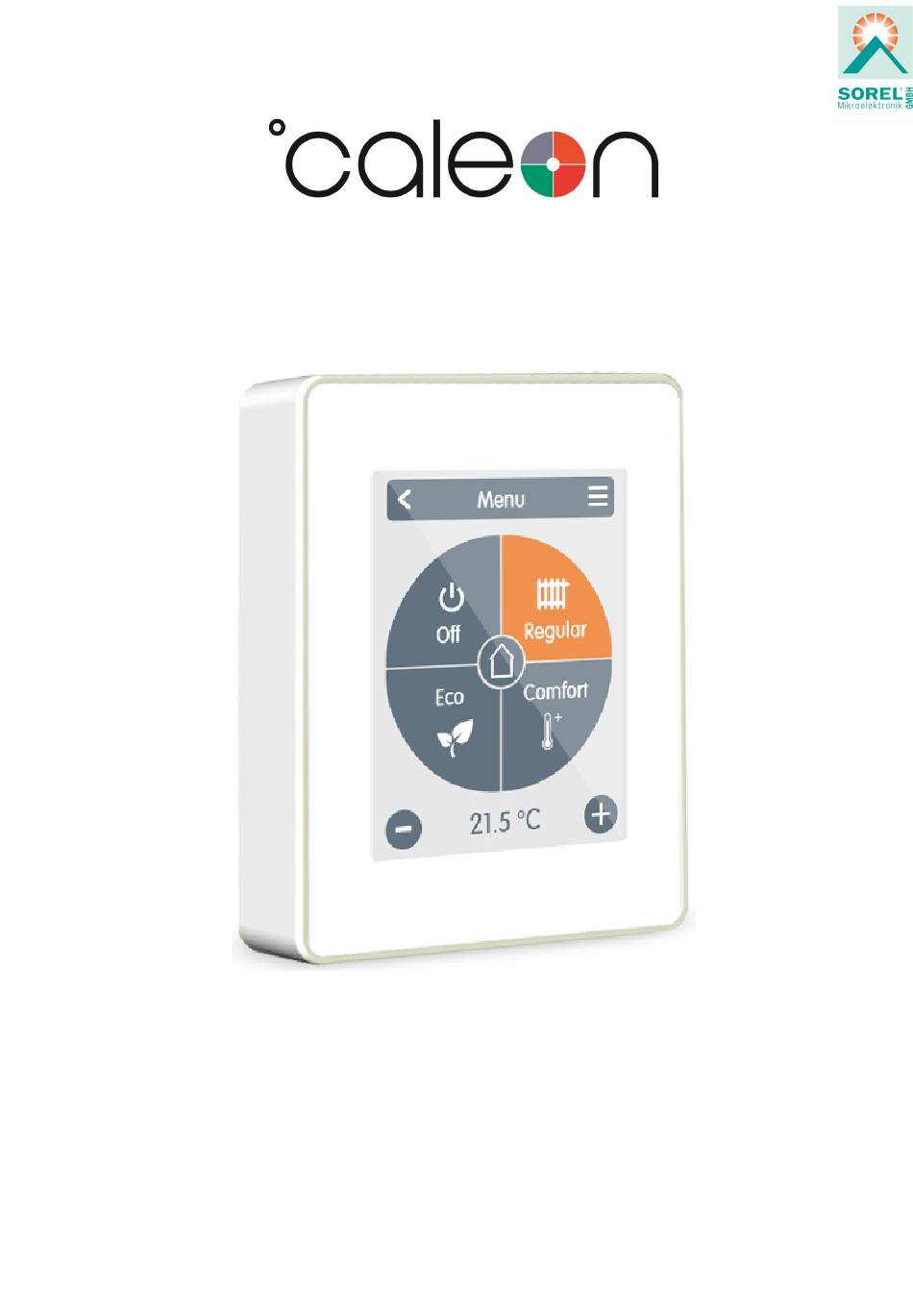

- Page 1 Installation and operating instruction °CALEON Smart Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
CONTENT Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description °CALEON Smart Technical Data Scope of Supply Installation °CALEON Installation Example Controller-Connection Example CAN-Connection Operation Room Overview Operating Mode Menu Set Operation Hours... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EG-Conformity By affixing the CE mark to the unit the manufacturer declares that °CALEON Smart conforms to the following relevant safety reg- ulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU conforms. Conformity has been verified and the corresponding documentation and the EU declaration of conformity are kept on file by the manufacturer. -
Page 4: Warranty And Liability
Warranty and Liability The Unit has been manufactured and tested with regard to high quality and safety requirements. The warranty and liability shall not include, however, any injury to persons or material damage that is attributable to one or more of the following causes: Failure to observe these installation and operating instructions. -
Page 5: Description °Caleon Smart
°CALEON Room Controllers 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. 2 single conductor connectors, CAN connector with connecting cables, terminating resistor CAN connector, ter- minating resistor °CALEON, operating tool °CALEON Smart installation guide... -
Page 6: Installation
INSTALLATION °CALEON Installation Mount the unit at a suitable location. Pay attention to suitable environmental conditions. Direct sunlight, sources of heat and cold, e.g. radi- ators and windows must be avoided. Strip cables, slip protective conductor over and remove fill material as needed. - Page 7 The first and last unit in the CAN-network in series must be fitted with terminating resistance. The connection of the opposite side (controller) can be found in the corresponding terminal diagram in the controller manual. Refit the base and fasten with screw. Switch on mains voltage and place °CALEON in operation.
-
Page 8: Example Controller-Connection
Example Controller-Connection Do not combine devices for heating only (°CALEON/ °CALEONbox) with devices for heating and cooling (°CALEON Clima/°CALEONbox Clima). Example CAN-Connection Only CAN in power supply from 4 cores of the regulator. The order and the number of devices (max. 50) is arbitrary. -
Page 9: Operation
OPERATION Room Overview Displays the room temperature, humidity and external temperature once the start screen was activated. Operating Mode Overview > Operating Mode... -
Page 10: Menu
Menu Overview > Operating Mode > Menu Set Operation Hours Overview > Operating Mode > Menu > Timer Setting of individual heating and cooling times for the selected room. -
Page 11: Set Operation Hours
Set Operation Hours In the interests of efficient and energy-saving single room control, the operating times should be set specifically for each room. -
Page 12: Expert Menu
Expert Menu Overview > Operating Mode > Menu > Expert... -
Page 13: Settings
The menu structure described here is based on the status at the time of production and may vary due to subsequent soft- ware changes. Settings Overview > Operating Mode > Menu > Expert > Settings... -
Page 14: Devices
Devices Overview > Operating mode > Menu > Expert > Settings > Devices Do not combine devices for heating only (°CALEON/ °CALEONbox) with devices for heating and cooling (°CALEON Clima/°CALEONbox Clima). -
Page 15: Rooms
Rooms Overview > Operating mode > Menu > Expert > Settings > Rooms Overview > Operating mode > Menu > Expert > Settings > Room 2... -
Page 16: Sensors
Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Temperature Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Humidity... -
Page 17: Wifi
WiFi Overview > Operating mode > Menu > Expert > Settings > WiFI... -
Page 18: Access Point
Access Point Overview > Operating Mode > Menu > Expert > Settings > WiFi > Access Point WiFi Sensor Overview > Operating Mode > Menu > Expert > Settings > WiFi > WiFi Sensor... -
Page 19: Service Values
Service Values Overview > Operating mode > Menu > Expert > Service values °CALEON WiFi and App Configuration Download °CALEON app to your mobile device. Currently available on Google Play (Android) and Apple App Store (iOS). Start app and create account. Click activation link in your e-mail inbox. -
Page 20: Support
Are end resistors set on the first and last device for termination of the bus? No additional function can be assigned to Is the selected function already assigned to another output? Is the output already assigned to another function? a relay/V output under "Functions". Your problem still exists? Please contact: support@sorel.de. Notes... - Page 21 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Your specialist dealer: Manufacturer: SOREL GmbH Mikroelektronik Reme-Str. 12 D - 58300 Wetter (Ruhr) +49 (0)2335 682 77 0 +49 (0)2335 682 77 10 info@sorel.de www.sorel.de...
