QUICK START GUIDE

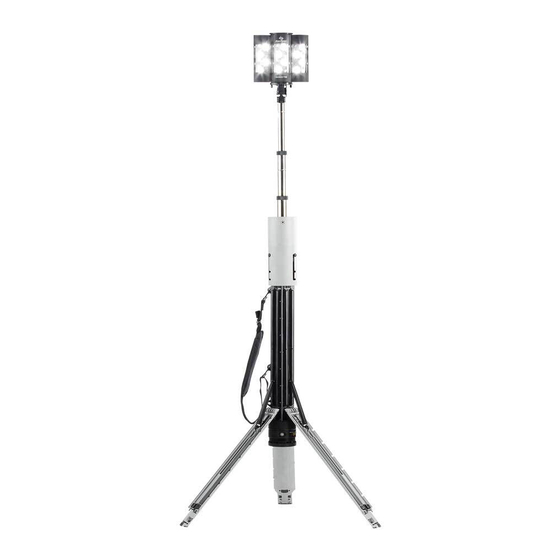

NOMAD
BATTERY REPLACEMENT
P/N 600-200-900 (FOR P/N 200-900, 200-900-TC, 200-9T32, 200-9T56)
Nomad
Replacement Battery is packaged in a black casing for safe air
®
transport. Once you receive the Nomad
Battery Tubes from the case for storage if Batteries are not replaced right
away .
HOW TO REMOVE THE NOMAD BATTERY TUBES FROM CASE
1
1.
On the non-swich side, hold the head of a Hex Bolt using pliers or a
wrench.
2
2.
Simultaneously , unscrew the Hex Nut until it comes loose, using a 5.5 mm
23
22
21
socket or wrench.
3.
3
Repeat step 1 and 2 three more times to remove the remaining Hex Nuts.
4.
Remove the two Metal Bars on the Switch side.
4
5.
5
Remove the black Cover.
6
6.
Remove all the Battery Tubes.
HEX NUT
(4 EACH)
360, T32 AND T56
®
20
19
18
HEX BOL T
(4 EACH)
Replacement Battery , remove the
®
17
16
15
COVER
METAL BAR
(2 EACH)
HEX NUT
14
13
12
BATTERY TUBE
(12 EACH)
11
10
9
Advertisement
Table of Contents
Related Manuals for Foxfury Lighting Solutions NOMAD 360
Summary of Contents for Foxfury Lighting Solutions NOMAD 360
- Page 1 QUICK START GUIDE NOMAD 360, T32 AND T56 ® BATTERY REPLACEMENT P/N 600-200-900 (FOR P/N 200-900, 200-900-TC, 200-9T32, 200-9T56) Nomad Replacement Battery is packaged in a black casing for safe air ® transport. Once you receive the Nomad Replacement Battery , remove the ®...
- Page 2 REMOVING THE BATTERY TUBES | 30 MINS ESTIMATED The Nomad 360, T32 and T56 use 12 Battery Tubes. Repeat the following ® steps six (6) times in order to replace all 12 Battery Tubes. BATTERY COVER BATTERY COVER(S) ON REMOVED BATTERY TUBES REMOVED...
- Page 3 Make sure the Nomad is OFF and UNPLUGGED before starting. ® Open the folding Tripo-Scope Legs so they are locked and deployed. ® Then, locate a Battery Cover. Use a Phillips Head ( + ) #1 Screwdriver to remove the four (4) screws that hold the Battery Cover.
- Page 4 INSTALLING THE BATTERY TUBES | 30 MINS ESTIMATED Installing the Nomad Battery Tubes follows the same procedures as removing ® them, but in reverse order. RED CAP (POSITIVE + ) LOWER BATTERY TUBE UPPER BATTERY TUBE BATTERY TUBE PLACEMENT WHILE INSTALLED (HORIZONTAL VIEW) WARNINGS Be sure to check polarity [positive ( + ) and negative ( –...
- Page 5 WARRANTY AND OTHER INFORMATION LIMITED LIFETIME repair without authorization from WARRANTY Foxfury and/or alteration/removal of the serial number). To expedite FoxFury , LLC (“FoxFury”) warrants warranty concerns, we encourage this product to be free from defects the end user to register their FoxFury in material for a lifetime of use except Product at www.foxfury .com/pages/...
- Page 6 All FoxFury products are designed in Oceanside, CA. All FoxFury products are manufactured with the highest quality USA and foreign parts. Products are assembled in either FoxFury’s controlled plant in Asia or the USA, under strict quality control. CALIFORNIA PROPOSITION 65 This product can expose you to chemicals including Lead and DEHP , which are known to the State of...
