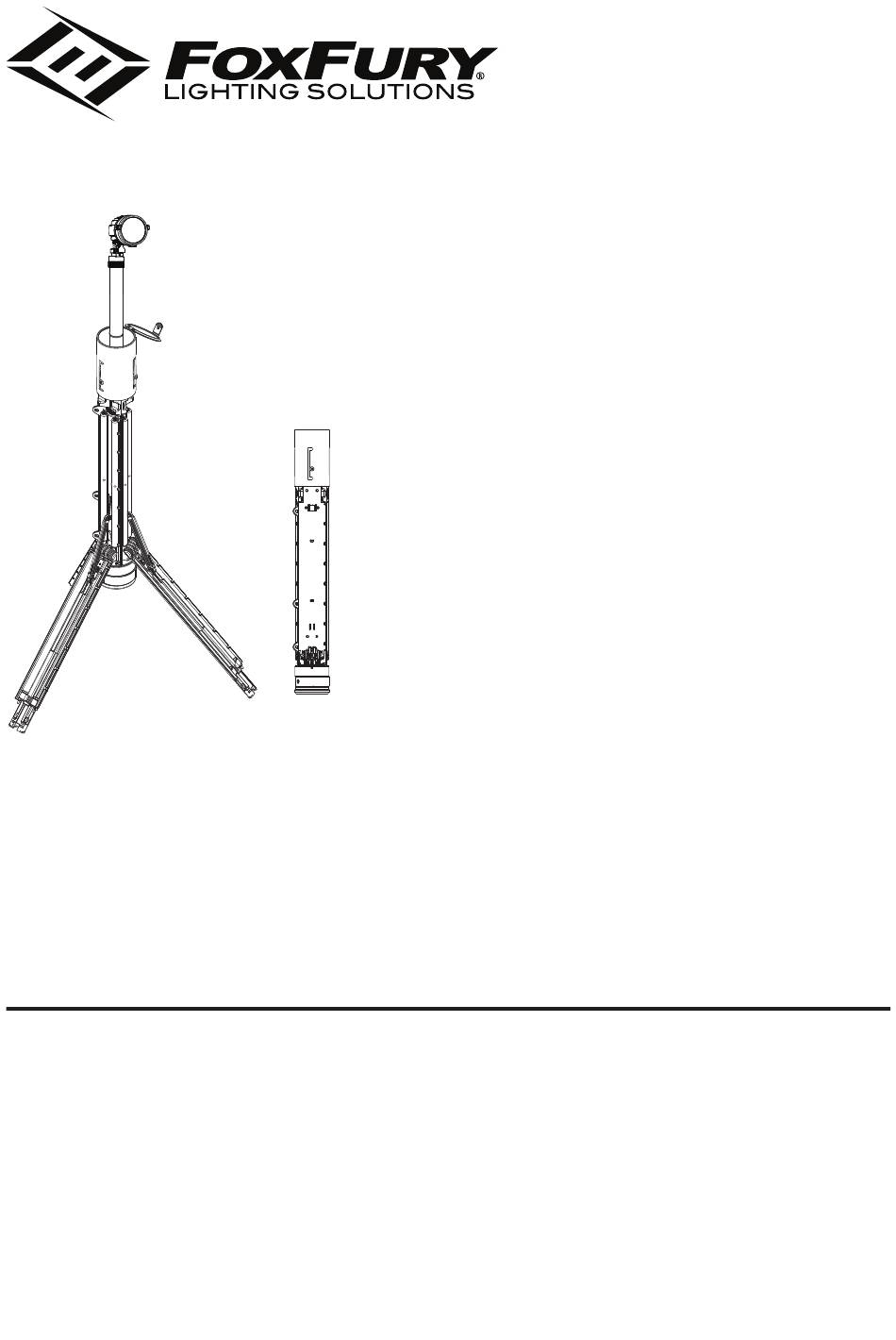

- Page 1 PRIME, P56, NOMAD NOMAD ® FORENSIC AND TACTICAL SCENE LIGHTS 200-800 | 200-800-TC | 200-8P56 | 200-811 | 200-812 | 200-813 | 200-814 | 200-818 | 200-819 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Reference Guide Overview Physical Characteristics BATTERY Charging the Batteries Charging from a 12VDC Vehicle Adaptor Charge Indicator OPERATION AC-DC Adaptor and International Use Operational Modes Battery Life Battery Life Indicator Using the Nomad while Plugged in ®... -
Page 3: Reference Guide
NOMAD REFERENCE GUIDE ® DEPLOYED VIEW DIFFUSER LENS LIGHT HEAD (AREA-SPOT) TIL T ADJUSTMENT KNOB SWIVEL ADJUSTMENT KNOB (340º) TRIPO-SCOPE ® TIGHTENING RINGS (3) TRIPO-SCOPE ® LEVEL BUBBLE POLES PROTECTIVE LIGHT CAP LOCKING SLEEVE CARRY STRAP BATTERY SYSTEM/ CLIP BATTERY LIFE/ NOMAD BODY ®... -
Page 4: Overview
OVERVIEW The Nomad Prime, P56, Forensic and Tactical Scene Lights provide 3–24 ® hours of continuous lighting. It converts from an area light to spotlight in seconds by attaching/detaching the Diffuser Lens. Its portable, waterproof and adaptive design allows it to be used in places where other area lights cannot. -
Page 5: Charging The Batteries
CHARGING THE BATTERIES Start with the AC Cable. Connect it to the AC-DC Adaptor. The AC Cable is Universal to NEMA 5-15P , 3 prong for USA and will work with a power range of 100VAC–240VAC 50/60 Hz. Plug the Barrel Connector (part of the AC-DC Adaptor) into the Charging Port of the Nomad Prime or P56. -
Page 6: Ac-Dc Adaptor And International Use
AC-DC ADAPTOR AND INTERNATIONAL USE The Nomad Series has an AC-DC Adaptor which uses AC Cables like those ® used in desktop computers or monitors. With every Nomad , FoxFury supplies ® a cable that terminates in the USA standard 110 VAC plug. BARREL CONNECTOR CONNECTOR (FEMALE) (C13 IEC) -
Page 7: Using The Nomad ® While Plugged In
BATTERY LIFE BATTERY PRIME FORENSIC MODE LIFE* LUMENS LUMENS LUMENS HIGH 3 hours 5,600 4,100 MEDIUM 9 hours 2,240 1,600 24 hours FLASHING 9 hours 5,600 *Battery life may vary according to age and ambient conditions. BATTERY LIFE INDICATOR (FOR LOCATION, PLEASE REFERENCE PAGE 3) COLOR DESCRIPTION GREEN... -
Page 8: Features
FEATURES SWIVEL AND TIL T LIGHT HEAD The Nomad Light Head has the versatility to swivel (via the Swivel ® Adjustment Knob) and tilt (via the Tilt Adjustment Knob). DIFFUSER LENS (AREA-SPOT) Lighting needs can change in an instant or on a case by case basis. As an Area-Spot light, the Nomad provides two types of lights in one. -
Page 9: Leveling Leg Extensions And Level Bubble
LEVELING LEG EXTENSIONS AND LEVEL BUBBLE On uneven ground, fine adjustments can be made by releasing the Leveling Leg Extensions. The Level Bubble can be used for reference. LEVEL BUBBLE LEVELING LEG EXTENSION RELEASED ANCHOR STRAP In case of heavy wind or extreme weather conditions, attach a sand bag, or equivalent weight, to the concealed Anchor Strap (see the "Nomad Reference ®... -
Page 10: Deploying The Nomad
DEPLOYING THE NOMAD ® LEGS LOCKED LEGS RELEASED TIL T ADJUSTMENT KNOB HINGE SCREW LIGHT HEAD (SIDE VIEW) LEVELING LEG EXTENSION RELEASED... - Page 11 Set the Nomad down vertically , on a flat surface, as shown. Open the ® Protective Light Cap and twist the Locking Sleeve to the right ( ) and slide upwards ( ). While still holding the Locking Sleeve up, twist it back to the left ( ).
-
Page 12: Maintenance
MAINTENANCE REMOVING THE BATTERY TUBES 30 MINS ESTIMATED The Nomad uses six (6) Battery Tubes. Repeat the following steps three (3) ® times in order to replace all six (6) Battery Tubes. BATTERY COVER(S) ON BATTERY COVER REMOVED BATTERIES REMOVED... - Page 13 Make sure the Nomad is OFF and UNPLUGGED before beginning. ® Open the folding Tripo-Scope Legs so they are locked and deployed. ® Then, locate a Battery Cover. Use a Phillips Head ( + ) #1 Screwdriver to remove the four (4) screws that hold the Battery Cover.
- Page 14 INSTALLING THE BATTERY TUBES 30 MINS (ESTIMATED) Installing the Nomad Battery Tubes follows the same procedures as removing ® them but in reverse order. RED CAP BLACK CAP (POSITIVE + ) (NEGATIVE – ) BATTERY TUBE PLACEMENT WHILE INSTALLED (HORIZONTAL VIEW) WARNINGS Replace all batteries with new ones at the same time.
- Page 15 REMOVING/INSTALLING THE DIFFUSER LENS 1 MIN (ESTIMATED) Press the retaining fastener through the heatsink fins, laterally . The spring end will compress allowing it to fit through the hole. Use a small hand tool such as a flathead screwdriver. Then, pull the fastener along with the Diffuser Lens and tether free from the Light Head.
-
Page 16: General Maintenance Tips
GENERAL MAINTENANCE TIPS The Nomad reaches a full charge in approximately 5 hours. (Charge time ® may depend on ambient conditions and battery health). Do not leave the unit plugged into an electric power source after unit is fully charged. Maintain the light fully charged at all times, so that it is ready for use in the event of an emergency . -
Page 17: Warranty And Other Information
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY When used for extended periods of time the Nomad will become ® HOT to the touch. Please use care when operating. Lights are strong enough to cause IPX7 damage to the human eye. Do not stare into LEDs for long CARE/CLEANING periods of time or from a close Your FoxFury product is a professional... -
Page 18: Limited Lifetime Warranty
LIMITED LIFETIME Product at www.foxfury .com/pages/ WARRANTY warranty-registration. FoxFury, LLC (“FoxFury”) warrants THIS IS THE ONL Y WARRANTY , this product to be free from defects EXPRESSED OR IMPLIED, in material for a lifetime of use except INCLUDING ANY WARRANTY OF for batteries, LEDs, abuse, and MERCHANTABILITY OR FITNESS normal wear. - Page 19 FOXFURY .COM 6/2021...
