Summary of Contents for Foxfury Lighting Solutions RUGO 700-300

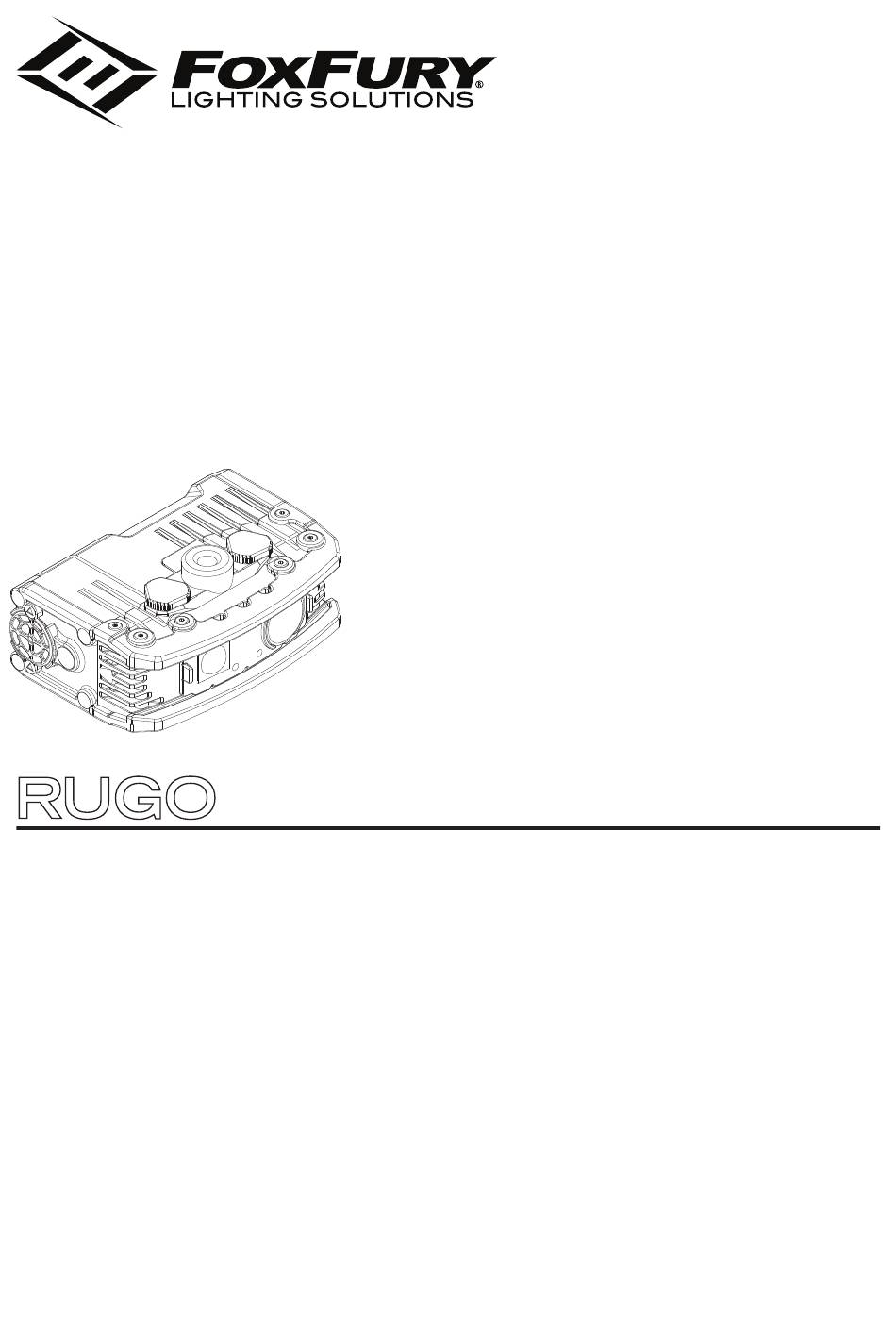

- Page 1 RUGO ™ 700-300 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Reference Guide Overview Physical Characteristics POWER PACK Charging the Power Pack Reassembling the Rugo after Charging ™ Power Pack Life Operational Modes TRI-LENS ™ Using the Tri-Lens ™ Removing the Tri-Lens ™ REMOVING/CHANGING MOUNTS Removing the Standard Mount Removing the ¼"-20 &... -
Page 3: Reference Guide
RUGO REFERENCE GUIDE ™ FULL ASSEMBL Y ¼"-20 MOUNT GUARDS POWER/MODE SWITCH TRI-LENS ™ CHARGE INDICATOR THUMBSCREWS DISASSEMBLED DISASSEMBLED POWER PACK LIGHT HEAD LOCKING LED CONTACT POST CAVITY (2) CHARGE PORT LED MODULE SCREW HOLE (4) “O”-RING POWER CONTACTS ACCESS SCREW MOUNTS INCLUDED ¼"... -
Page 4: Overview
OVERVIEW The Rugo is a compact and powerful LED Light which has the ability to be ™ mounted to the GoPro , a DSLR, a drone, a tripod and many other devices. ® Having four different intensities (70–700 Lumens) with three interchangeable lens settings (Tri-Lens ), makes it a powerful tool for action sports as well as ™... -
Page 5: Charging The Power Pack
CHARGING THE POWER PACK Press and hold the Power Pack Release Lever located on the Light Head portion of the Rugo ™ While maintaining pressure on the Power Pack Release Lever, pull the Light Head and the Power Pack apart. If unable to pull apart easily (due to resistance of the internal rubber gasket), try moving the Power Pack back and forth while pulling apart. -
Page 6: Reassembling The Rugo ™ After Charging
REASSEMBLING THE RUGO AFTER CHARGING ™ Install the Power Pack to the Light Head—confirm position of alignment posts to their respected cavities. Push both halves together. A ‘click’ should be heard as they become locked together. Test the light to make sure that the Power Pack is properly connected to the Light Head by pressing the Power/Mode Switch. -
Page 7: Using The Tri-Lens
USING THE TRI-LENS ™ The Rugo Tri-Lens has three (3) beam emission angles which can be used for ™ ™ many different applications by simply sliding from left to right and vise-versa. FLOOD SPOT AREA 120° 18° 55° BEAM DISTANCE: 10ft (3m) BEAM DISTANCE: 30ft (10m) BEAM DISTANCE: 100ft (30m) USED FOR: Close-up... -
Page 8: Removing/Changing Mounts
REMOVING/CHANGING MOUNTS STANDARD MOUNT Start with the Rugo positioned so that the Thumbscrews are on top. ™ Twist each Thumbscrew counter-clockwise until they become loose. They should then be ready to pull out completely . Once Thumbscrews are removed, the Standard Mount can then be disengaged from the Rugo completely . -
Page 9: Mounting To Devices
MOUNTING TO DEVICES ACTION CAM The Rugo can be mounted to an Action Cam via the removable Standard ™ Mount. Line up the mounts on the Rugo with the mounts on the Action Cam ™ and then tighten the Mount Knobs. NOTE: Orientation of Knobs should match as shown below. -
Page 10: Maintenance
MAINTENANCE REPLACING THE O-RING (P/N 51-112) O-RING RETAINING TAB Separate the Power Pack from the Light Head (follow steps 1–2 in the “Charging the Power Pack” section on page 5). Using a #2 Phillips head screwdriver (not included) remove the screw from the Light Head (reference “Disassembled Light Head”... - Page 11 NOTES...
-
Page 12: Warnings/Warranty
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY WARNINGS FoxFury, LLC is not responsible for the incorrect use of any FoxFury Lighting product. IPX7 20 M When used for extended periods of time the Rugo will become HOT ™ to the touch. Please use care when PRODUCT NAME: Rugo ™... -
Page 13: Contact Foxfury
This limited lifetime warranty is given only to the original end user of the accompanying product. If you CONTACT FOXFURY purchased a product from someone FoxFury , LLC other than an authorized FoxFury Oceanside, CA 92056 USA reseller/distributor or if the product Toll-Free: 844-FOXFURY was used, (including but not limited Tel: 760.945.4231... - Page 14 FOXFURY .COM 10/2018...
