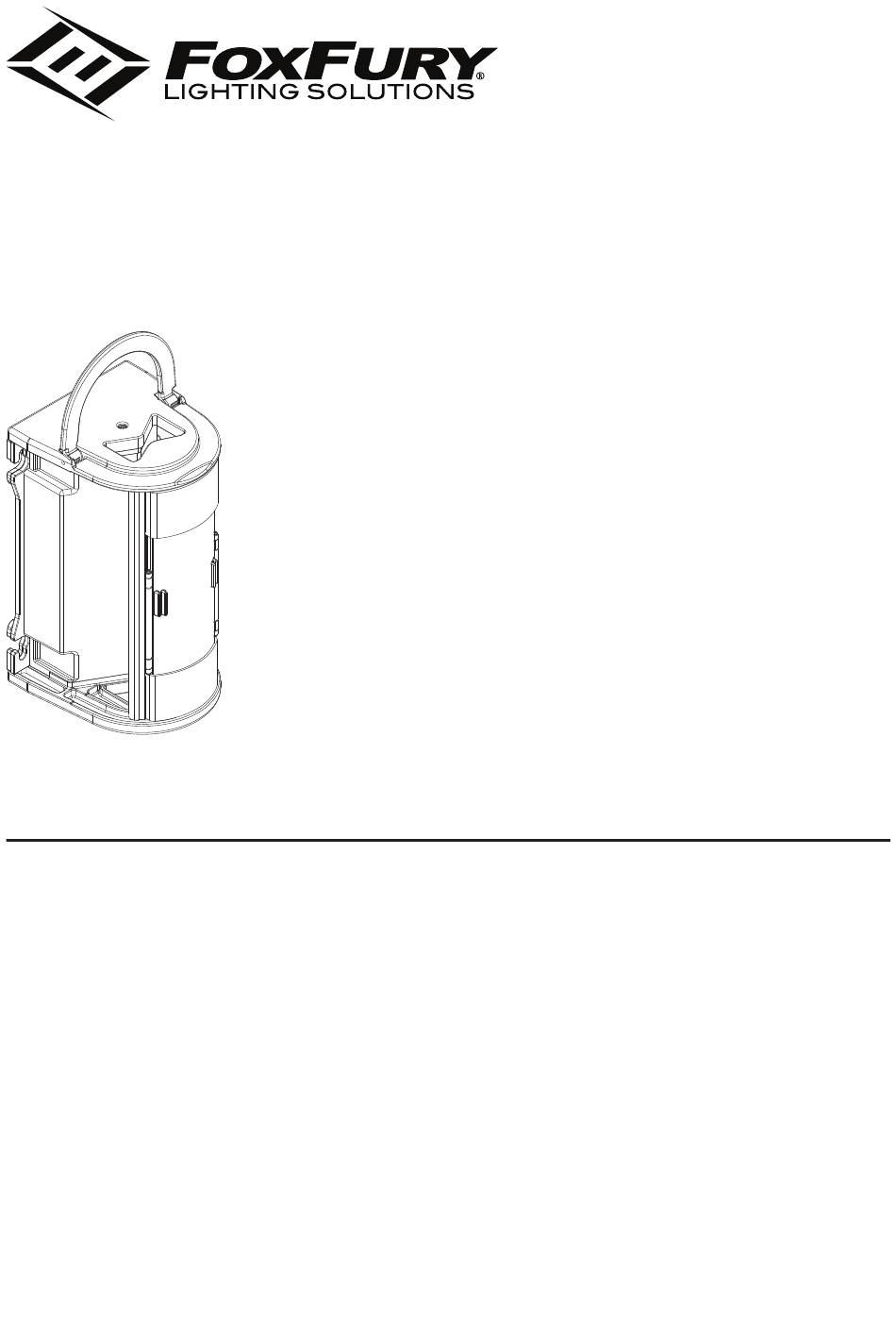

- Page 1 NOMAD NOMAD ® 200–400–100 | 200–400 –102 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Reference Guide Overview Physical Characteristics BATTERY PACK Charging the Battery Pack Charging from a 12VDC Vehicle Adaptor Charge Indicator OPERATIONAL MODES AC-DC Adaptor and International Use Operational Modes Battery Life Battery Life Indicator Using the Nomad NOW While Plugged in ®... -
Page 3: Reference Guide
NOMAD NOW REFERENCE GUIDE ® COLLAPSIBLE HANDLE MAGNETIC/WALL MOUNT HOLES (4) ¼"-20 MOUNT (ON TOP & BOTTOM) BATTERY LIFE/ CHARGE INDICATOR CHARGING PORT SWIVELING LIGHT HEAD POWER/MODE SWITCH REMOTE SWITCH SLIDING DIFFUSER LENS REMOTE SWITCH (AREA-SPOT) INDICATOR ALSO INCLUDED Remote Key Fob 12VDC Vehicle Adaptor Magnetic Mount Accessories Bag... -
Page 4: Overview

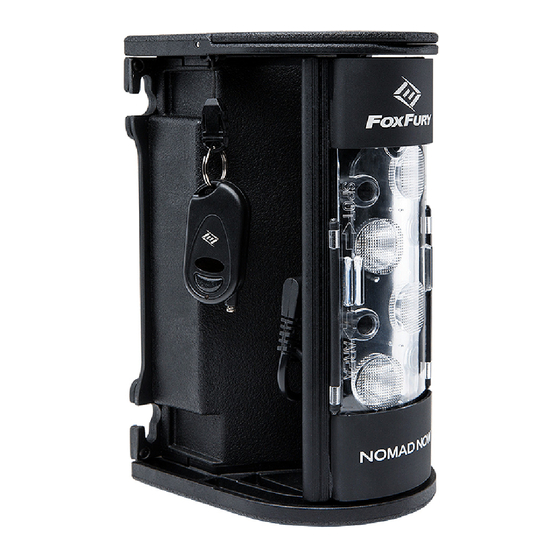

OVERVIEW The Nomad NOW is FoxFury's most compact and versatile Area-Spot light. ® It can provide up to 3,300 lumens on HIGH Power. Portable enough to go anywhere, it is completely waterproof and adapts to many specific needs. As a handheld lantern, it lights an immediate path. Rest it on a flat surface, hang it or mount it and have a well-lit work area and two free hands. -
Page 5: Battery Pack
CHARGING THE BATTERY PACK Start with the AC Cable. Connect it to the AC-DC Adaptor. The AC Cable is Universal to NEMA 5-15P , 3 prong for USA and will work with a power range of 100VAC–240VAC 50/60 Hz. Then, plug the Barrel Connector (part of the AC-DC Adaptor) into the Charging Port of the Nomad NOW. -
Page 6: Ac-Dc Adaptor And International Use
AC-DC ADAPTOR AND INTERNATIONAL USE The Nomad Series has a AC-DC Adaptor which uses AC Cables like those ® used in desktop computers or monitors. With every Nomad , FoxFury supplies ® a cable that terminates in the USA standard 110 VAC plug. BARREL CONNECTOR CONNECTOR (FEMALE) (C13 IEC) -
Page 7: Battery Life
BATTERY LIFE MODE BATTERY LIFE* LUMENS HIGH POWER 3 hours 3,300 MEDIUM POWER 9 hours 1,320 LOW POWER 24 hours *Battery Pack life may vary according to age and ambient conditions. BATTERY LIFE INDICATOR COLOR DESCRIPTION GREEN FULL BATTERY ORANGE CAUTION—... -
Page 8: Features
FEATURES SWIVELING LIGHT HEAD The Nomad NOW Light Head is able to swivel 45° to the left or right. This ® allows the light beam to be manually directed. LEFT NORMAL RIGHT SLIDING DIFFUSER LENS Lighting needs can change in an instant or on a case-by-case basis. As an Area-Spot light, the Nomad NOW provides two types of lights in one. -
Page 9: Remote Key Fob Use
REMOTE KEY FOB USE TO ACTIVATE THE REMOTE KEY FOB Press the Remote Switch on the light once and make sure the green indicator light is ON. TO DEACTIVATE THE KEY FOB Press the Remote Switch on the light once and make sure the green indicator light is OFF . -
Page 10: Mounting The Nomad
MOUNTING THE NOMAD ® MAGNETIC MOUNT The Nomad NOW can also be mounted via the Magnetic Mount (included). ® This allows the NOW to be held vertically on a magnetic surface. The Nomad ® NOW and Magnetic Mount can be pulled and placed from one surface to another to fit your workspace and needs. -
Page 11: Utility Mount
ADAPTOR (P/N 85-045) The NOW can be mounted to the FoxFury Tripo-Scope® M or other tripods. Puck Adaptor is required when mounting Nomad NOW on tripods with a 3/8 -16 screw. Thread the hole of the Nomad® NOW onto the ¼"-20 Threaded Screw of the tripod or Puck Adaptor. -
Page 12: Maintenance
MAINTENANCE REMOVING THE BATTERY PACK 4 MINS ESTIMATED At the end of the Battery Packs's life (which is about 500+ full charges), the Battery Pack will stop holding a charge and will need replacing. CONNECTOR Make sure the Nomad NOW is turned OFF before starting. ®... - Page 13 REPLACING THE BATTERY PACK 4 MINS ESTIMATED Attach the new Battery Pack to the light by re-clipping it the Connector. Then, place the new Battery Pack back inside the Nomad NOW. ® Place the black strap over the Battery Pack. Then, re-insert and tighten the two (2) screws.
- Page 14 MAINTENANCE (CONT'D) GENERAL TIPS The Nomad NOW reaches a full charge in approximately 4 hours. ® (Charge time may depend on ambient conditions and battery health). Please DO NOT leave AC-DC Adaptor plugged into Nomad charged for more than eight (8) continuous hours. Maintain the light fully charged at all times, so that it is ready for use in the event of an emergency .
-
Page 15: Warranty
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY WARNINGS FoxFury, LLC is not responsible for the incorrect use of any FoxFury Lighting product. When used for extended periods of IPX7 time the light will become HOT to the touch. Please use care when operating. -
Page 16: Contact Foxfury
Rechargeable batteries are You may have other specific legal consumable items, and carry a pro- rights which vary by jurisdiction. Go rated 2 year warranty . Example: If a to www.foxfury .com/pages/warranty problem arises after one year of use, for a complete copy of the warranty . only 50% of the replacement cost will Retain your receipt for proof of be charged, as long as the batteries... - Page 17 FOXFURY .COM 6/2021...
