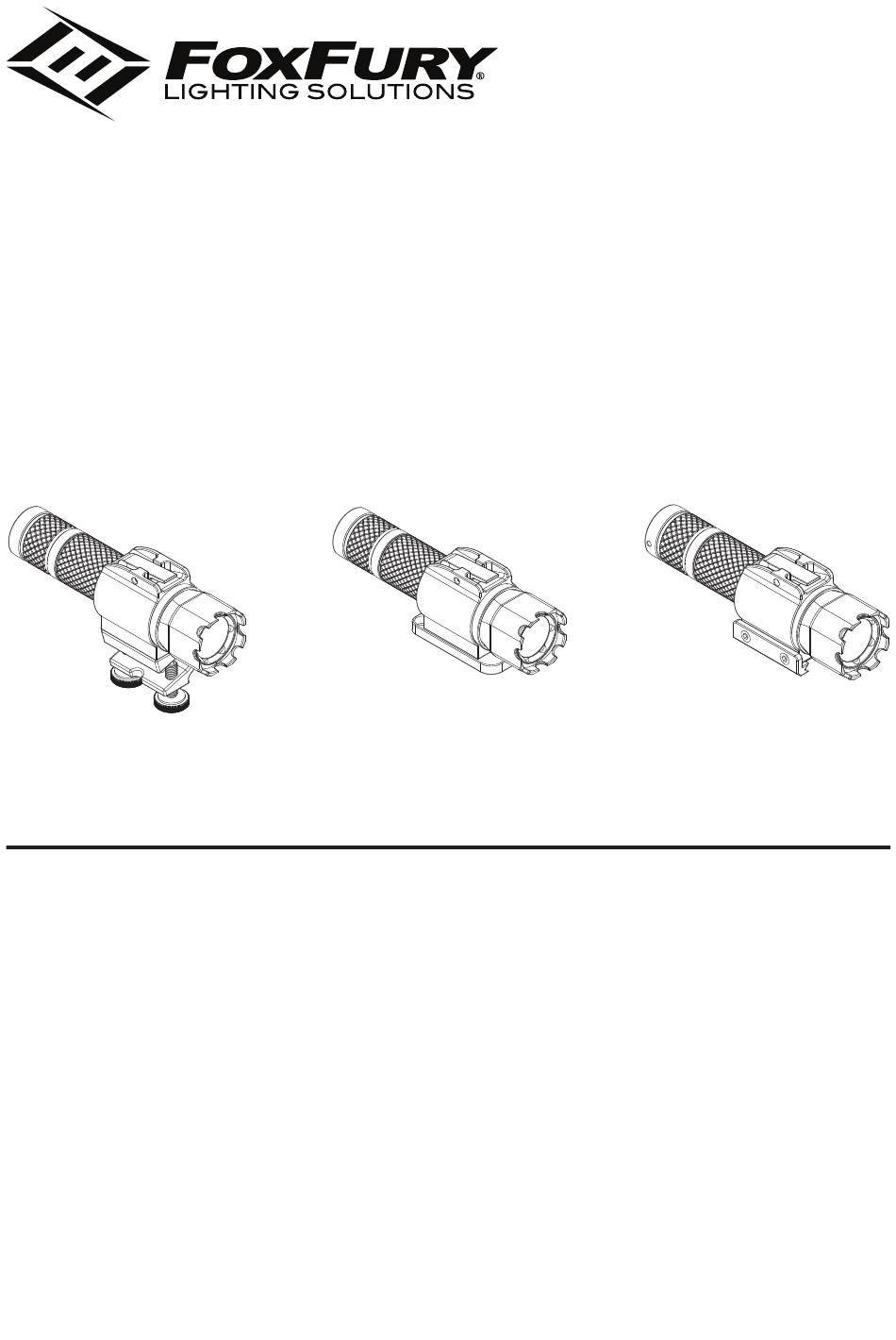

- Page 1 SIDESLIDE SERIES C-CLAMP 940K-010FI | BOL T 940K-010RSC | PICATINNY 940K-010PIC PRODUCT MANUAL...
- Page 2 SIDESLIDE REFERENCE GUIDE LOCKING GROOVE POWER/MODE SWITCH ANTI-ROLL HEAD TAILCAP HANDLE STRIKE BEZEL LANYARD HOLE RUBBER SLEEVE HOLDER C-CLAMP MOUNT RELEASE LEVER MOUNT FRONT RELEASE LEVER THUMBSCREW (2) BOL T MOUNT PICATINNY MOUNT MOUNT MOUNT RELEASE RELEASE LEVER SCREW HOLES (3) LEVER SCREWS (4)
-
Page 3: Physical Characteristics
PHYSICAL CHARACTERISTICS Please read below before using your SideSlide as it relays beneficial operating and safety information. FLASHLIGHT (940– 010FI OR 940– 012) 5.5 x 1.5 x 1.1 in DIMENSIONS 140 x 38 x 28 mm WEIGHT 5.3 oz (150 g) (without battery) These application-specific SideSlide mounts allow the flashlight to be secured to the Holder for quick and easy hands-free use. -
Page 4: Battery Installation And Replacement
BATTERIES The SideSlide Series flashlight requires one (1) 18650 battery or two (2) CR123 batteries. Mixing of new and used, or different brand batteries is not recommended as this could lead to leakage or explosion. BATTERY INSTALLATION AND REPLACEMENT TAILCAP –... - Page 5 BATTERY LIFE (940K-010PIC) MODE BATTERY LIFE LUMENS MOMENTARY 3 hours CONTINUOUS HIGH 3 hours CONTINUOUS LOW 8 hours TURBO-STROBE 5 hours ™ *Battery life may vary according to mode selected, battery quality and prevailing ambient conditions. OPERATIONAL MODES FOR THE C-CLAMP AND BOL T MOUNTS: For HIGH mode: Press the Power/Mode Switch once.
- Page 6 INSERTING AND REMOVING THE SIDESLIDE FROM THE HOLDER The flashlight is easily securable and removable by using the unique SideSlide Release Lever. TO INSERT THE FLASHLIGHT INTO THE HOLDER: Insert the flashlight by pushing it into the beveled opening on the front of the Holder.
- Page 7 INSTALLATION OF YOUR SIDESLIDE MOUNT SIDESLIDE C-CLAMP The C-Clamp can be mounted on the right or left side of the helmet, above or below the brim (based on user preference). TO MOUNT ON THE RIGHT SIDE OF A HELMET: Place mount on helmet at desired location and tighten thumbscrews. TO MOUNT ON THE LEFT SIDE OF A HELMET: There are two (2) screws which allow you to separate the C-Clamp from the Holder and flip it 180°...
- Page 8 INSTALLATION OF YOUR SIDESLIDE MOUNT SIDESLIDE BOL T This mount has the ability to rotate and provide usable light at eight (8) distinct positions, every 45°. NOTE: Three (3) M4.0 Cap Head screws are needed to attach the mount to a helmet.
-
Page 9: Warranty And Other Information
WARRANTY AND OTHER INFORMATION PRODUCT DURABILITY 18650 Rechargeable Battery , P/N 70-18650R Battery Charger & Adaptor - AA, 18650, P/N 600-155 IPX7 Meets NFPA 1971-2007 Fire WARNINGS Resistant Requirements: 500°F FoxFury , LLC is not responsible for (260°C) for 30 minutes the incorrect use of any FoxFury Lighting product. -
Page 10: Contact Foxfury
CONTACT FOXFURY batteries, chargers, switches, and electronics, which have a 2-year FoxFury , LLC warranty with proof of purchase. Oceanside, CA 92056 USA Toll-Free: 844-FOXFURY This limited lifetime warranty is Tel: 760.945.4231 given only to the original end user of Fax: 760.433.3650 the accompanying product. - Page 11 NOTES...
