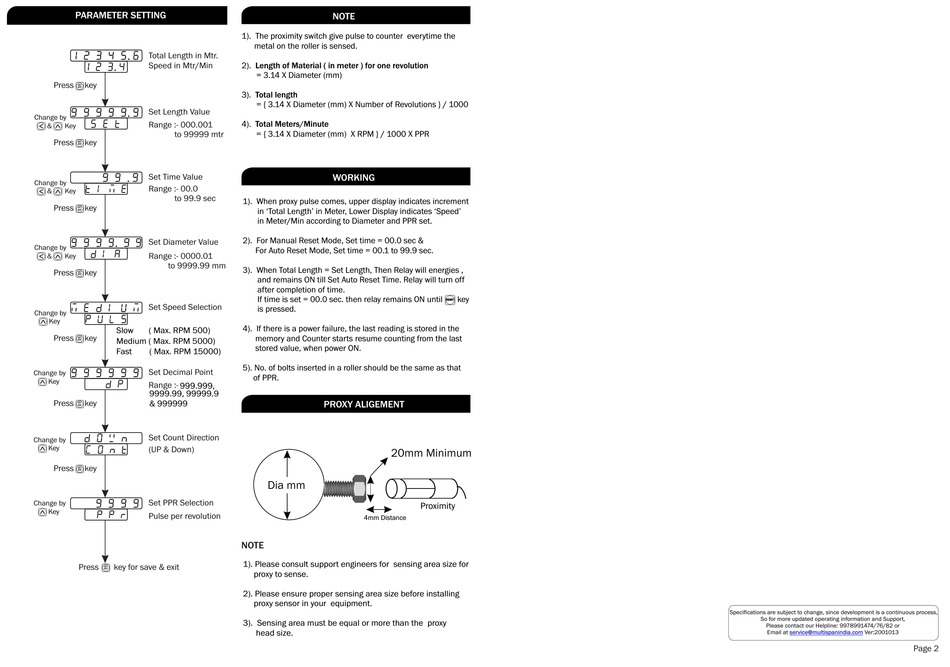

MULTISPAN LC-2046 Quick Start Manual page 2

PARAMETER SETTING
1 2 3 4 5. 6
Total Length in Mtr.
1 2 3. 4 Speed in Mtr/Min
Press key
SET
ENT
9 9 9 9 9. 9 Set Length Value
Change by
s e t
Range :- 000.001
& Key
to 99999 mtr
Press key
SET
ENT
9 9 . 9
Set Time Value
Change by
t I m e
Range :- 00.0
& Key
to 99.9 sec
Press key
SET
ENT
9 9 9 9. 9 9
Set Diameter Value
Change by
d I a
& Key Range :- 0000.01
to 9999.99 mm
Press key
SET
ENT
m e d I u m
Set Speed Selection
Change by
p u L S
Key
Slow ( Max. RPM 500)
Press key
SET
Medium ( Max. RPM 5000)
ENT
Fast ( Max. RPM 15000)
9 9 9 9 9 9
Set Decimal Point
Change by
Key
D P
Range :-
999.999,
9999.99, 99999.9
Press key & 999999
SET
ENT
D O W N Set Count Direction
Change by
Key C O N T
(UP & Down)
Press key
SET
ENT
9 9 9 9
Set PPR Selection
Change by
Key
P P R
Pulse per revolution
Press key for save & exit
SET
ENT
NOTE
1). The proximity switch give pulse to counter everytime the
metal on the roller is sensed.
2). Length of Material ( in meter ) for one revolution
= 3.14 X Diameter (mm)
3). Total length
= { 3.14 X Diameter (mm) X Number of Revolutions } / 1000
4). Total Meters/Minute
= { 3.14 X Diameter (mm) X RPM } / 1000 X PPR
WORKING
1). When proxy pulse comes, upper display indicates increment
in 'Total Length' in Meter, Lower Display indicates 'Speed'
in Meter/Min according to Diameter and PPR set.
2). For Manual Reset Mode, Set time = 00.0 sec &
For Auto Reset Mode, Set time = 00.1 to 99.9 sec.
3). When Total Length = Set Length, Then Relay will energies ,
and remains ON till Set Auto Reset Time. Relay will turn off
after completion of time.
If time is set = 00.0 sec. then relay remains ON until
is pressed.
4). If there is a power failure, the last reading is stored in the
memory and Counter starts resume counting from the last
stored value, when power ON.
5). No. of bolts inserted in a roller should be the same as that
of PPR.
PROXY ALIGEMENT
20mm Minimum
Dia mm
Proximity
4mm Distance
NOTE
1). Please consult support engineers for sensing area size for
proxy to sense.
Note:
2). Please ensure proper sensing area size before installing
proxy sensor in your equipment.
3). Sensing area must be equal or more than the proxy
head size.
key
Specifications are subject to change, since development is a continuous process,
So for more updated operating information and Support,
Please contact our Helpline: 9978991474/76/82 or
Email at service@multispanindia.com Ver:2001013
