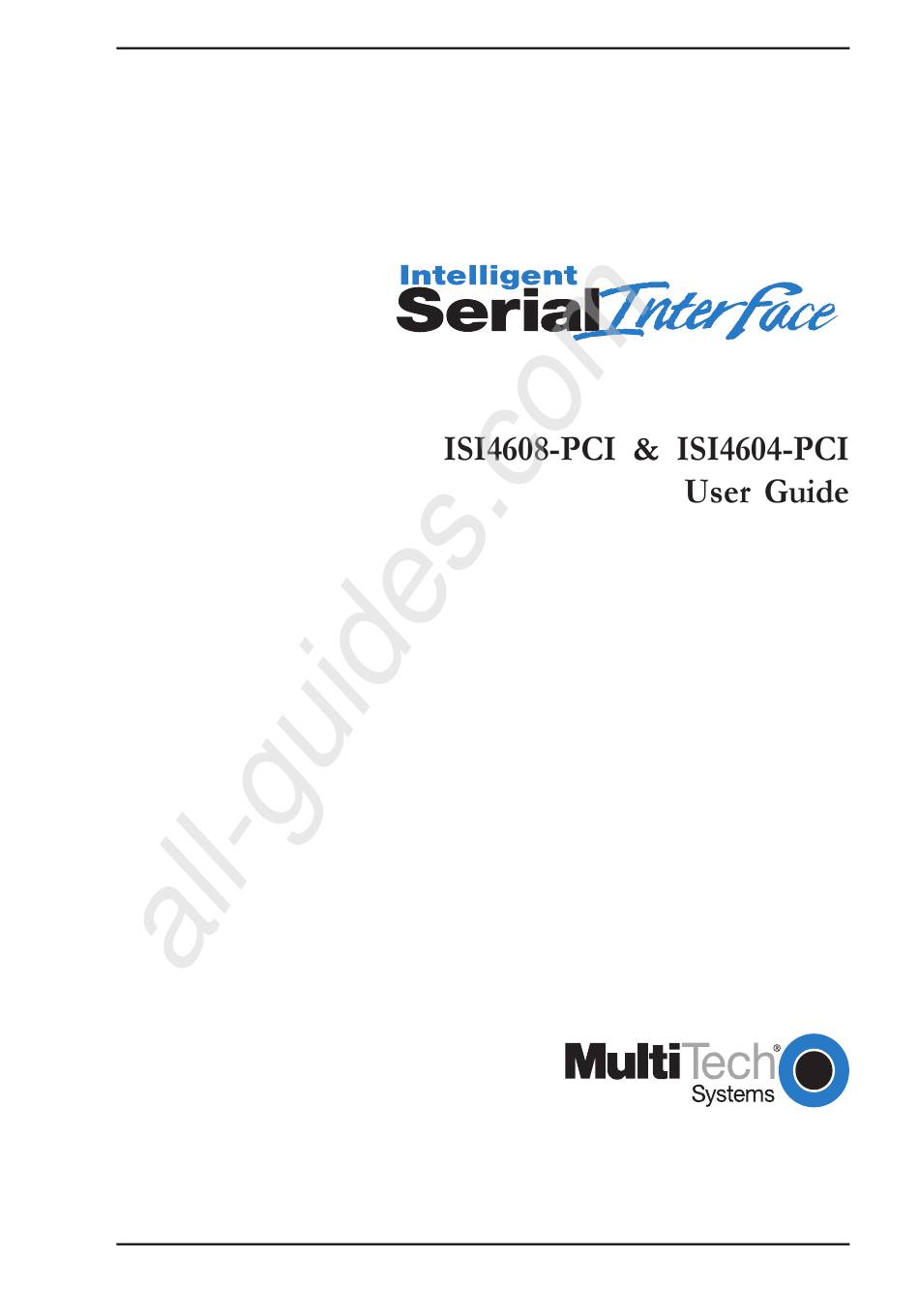

  • Page 2 All manuals and user guides at all-guides.com User Guide P/N S0000112, Revision C Model ISI4608-PCI Record of Revision Revision Description Revised for ISI universal drivers and to include ISI4604-PCI. (8/25/00) Info added on Win 2000, MTS Patent, Win Me, Novell, (5/8/01) Linux, &...
  • Page 3 All manuals and user guides at all-guides.com Contents...
  • Page 4 All manuals and user guides at all-guides.com...

  • Page 5: Chapter 1-Introduction And Description

    All manuals and user guides at all-guides.com Chapter 1—Introduction and Description...

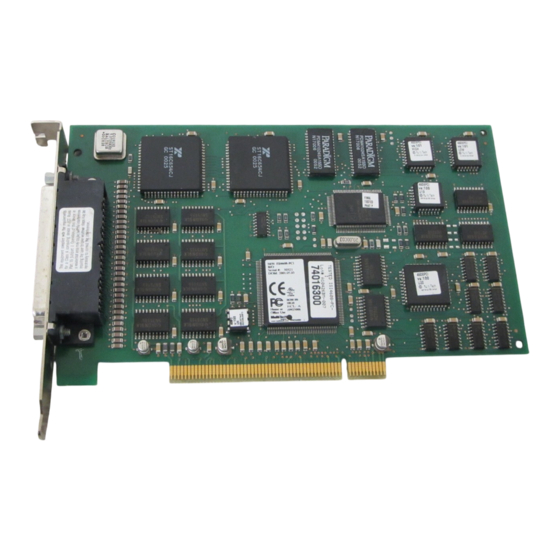

  • Page 6 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Introduction to the Intelligent Serial Interface Product Description...

  • Page 7: How To Use This Manual

    All manuals and user guides at all-guides.com Chapter 1—Introduction and Description How to Use This Manual...
  • Page 8 All manuals and user guides at all-guides.com ISI4608-PCI User Guide ISI460x-PCI Applications Technical Specifications Computer Requirements Physical/Electrical/Environmental...
  • Page 9 All manuals and user guides at all-guides.com Chapter 1—Introduction and Description...
  • Page 10 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...

  • Page 11: Chapter 2-Hardware Installation

    All manuals and user guides at all-guides.com Chapter 2—Hardware Installation...
  • Page 12 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Introduction Safety Warnings Telecom Hardware Installation Procedures...
  • Page 13 All manuals and user guides at all-guides.com Chapter 2—Hardware Installation...
  • Page 14 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...

  • Page 15: Chapter 3-Driver Installation

    All manuals and user guides at all-guides.com Chapter 3—Driver Installation...
  • Page 16 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Introduction...
  • Page 17 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation Installing ISI460x-PCI Software for Windows 2000...
  • Page 18 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 19 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 20 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 21 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 22 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 23 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 24 All manuals and user guides at all-guides.com ISI4608-PCI User Guide ISI460x-PCI for Windows 2000: Installing ISI Manage- ment Software (server OSs only) E:\SERVCARD\UTILITY\MGMT\SETUP.EXE...
  • Page 25 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 26 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Remove ISI460x-PCI Driver (Windows 2000) ISI460x-PCI Software Installation Procedure for Windows NT 3.51/4.0...
  • Page 27 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 28 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 29 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation Removing ISI4608x-PCI Card and Driver in Windows NT 3.51/4.0...
  • Page 30 All manuals and user guides at all-guides.com ISI4608-PCI User Guide I/O Addresses and IRQ Codes...
  • Page 31 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation ISI460x-PCI Software Installation Procedure for Windows 95/98/Me...
  • Page 32 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 33 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation...
  • Page 34 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...

  • Page 35: Netware Driver Installation

    All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation Removing the ISI460x-PCI Driver (Windows 95/98/Me) NetWare Driver Installation...
  • Page 36 All manuals and user guides at all-guides.com ISI4608-PCI User Guide COPY E:\SERVCARD\DRIVERS\NOVELL\AIOSIX.NLM F:\SYSTEM LOAD AIOISIX [port=W] [interrupt=X] [name=Y] [note=Z]...

  • Page 37: Sco Open Server 5 Driver Installation

    All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation Configuring Ports for NetWare Connect LOAD NWCCON Removing the Driver (Novell) SCO Open Server 5 Driver Installation To install from CD-ROM: # mount -r /dev/cd0 /mnt...
  • Page 38 All manuals and user guides at all-guides.com ISI4608-PCI User Guide # cd /mnt # cd servcard/drivers/sco50x #cp isisco.tar / # cd < > To format a floppy disk for SCO5: To untar the driver file and copy files onto floppy disk: # mkdir /isi # cp sco50x.tar /isi # cd /isi...
  • Page 39 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation # scosh To install driver from floppy disk...
  • Page 40 All manuals and user guides at all-guides.com ISI4608-PCI User Guide MultiTech Installation Script...
  • Page 41 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation enable ttyl1a This script also creates the devices in your system to communicate with the ports of ISICOM. The default prefix for the tty ports is ttyl. The default prefix for the printer is prnl.
  • Page 42 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 43 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation You have chosen the following setup The tty prefix is ttyl. The printer prefix is prnl. Number of Multi_View pseudo devices [ user-specified number ]. Press ENTER <Enter> to continue ENTER Installation complete...
  • Page 44 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Activating Ports in SCO Open Server 5 ttylbx ttyl2A ACU ttylbX - 9600 b, X enable ttylbx...
  • Page 45 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation t tyl1a ttyl1A disable ttyl1a enable ttyl1A Removing the Driver (SCO Open Server 5) Linux Driver for Multi-Tech ISI460x-PCI Server Cards LINUX: Pre-Installation Issues LINUX: Copying the driver from the media...
  • Page 46 All manuals and user guides at all-guides.com ISI4608-PCI User Guide LINUX: Copying and untarring the driver from CD-ROM mount /mnt/cdrom cd /mnt/cdrom tar vxf {filename} /tmp LINUX: Copying and untarring the driver from a floppy Steps for copying the driver from a floppy: >...

  • Page 47: Linux: Driver Installation And Loading

    All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation > mkdir /isi > cd /isi > cp /mnt/floppy/kernel_2.2.x/* /isi LINUX: Driver installation and loading > cd /isi > ./Install cat/proc/ioports insmod isicom io=card1, ... card4 irq=card1, ... card4...

  • Page 48: Linux: Verifying The Ports

    All manuals and user guides at all-guides.com ISI4608-PCI User Guide LINUX: Setting the baud rate stty 38400 < /dev/ttyM1a stty < /dev/ ttyM1a LINUX: Verifying the ports minicom 1a LINUX: TTY Devices Created by the Drivers: ttyMxy cumxy...
  • Page 49 All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation ttyMxy cumxy - /dev/ttyM1a /dev/ttyM1p - /dev/ttyM2a /dev/ttyM2p - /dev/ttyM3a /dev/ttyM3p /dev/ttyM4a /dev/ttyM4p - /dev/ttyM1a /dev/ttyM1d - /dev/ttyM2a /dev/ttyM2d - /dev/ttyM3a /dev/ttyM3d - /dev/ttyM4a /dev/ttyM4d - /dev/ttyM1a /dev/ttyM1h - /dev/ttyM2a /dev/ttyM2h - /dev/ttyM3a /dev/ttyM3h...

  • Page 50: Linux -- Dial-In Configuration

    All manuals and user guides at all-guides.com ISI4608-PCI User Guide LINUX -- Dial-in configuration: M2c:12345:respawn:/sbin/mgetty ttyM2c init q M2c:12345:off:/sbin/mgetty ttyM2c LINUX -- PPP setup: Miscellaneous: ttyMxy cumxy ttyM...

  • Page 51: Removing The Isi Driver (Linux)

    All manuals and user guides at all-guides.com Chapter 3—Software/Driver Installation cat /proc/ioports cat /proc/interrupts insmod insmod isicom ISIBase1=0x210 Irq1=5 ISIBase2=0x200 Irq2=10 rmmod isicom Removing the ISI Driver (Linux) cd /usr/local rm -r ISICOM rm isictl rm ttyM1* rm ttyM2* rm ttyM3* rm ttyM4*...
  • Page 52 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 53 All manuals and user guides at all-guides.com Chap 4: Warranty, Service, & Tech Support...

  • Page 54: Warranty, Service & Tech Support

    All manuals and user guides at all-guides.com ISI4608-PCI User Guide Warranty, Service & Tech Support Limited Warranty Addendum for North American Products...

  • Page 55: Addendum For International Products

    All manuals and user guides at all-guides.com Chapter 4—Service, Warranty, and Tech Support Addendum for International Products...
  • Page 56 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Out of Warranty Repair Cost Charts Upgrades and Product Support via Internet Technical Support...

  • Page 57: Software User License Agreement

    All manuals and user guides at all-guides.com Chapter 4—Service, Warranty, and Tech Support Recording ISI460x-PCI Information Software User License Agreement...
  • Page 58 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...

  • Page 59: On-Line Warranty Registration

    All manuals and user guides at all-guides.com Chapter 4—Service, Warranty, and Tech Support On-Line Warranty Registration...
  • Page 60 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 61 All manuals and user guides at all-guides.com Appendices...

  • Page 62: Appendix A- Crossover Cable Wiring Diagrams

    All manuals and user guides at all-guides.com ISI4608-PCI User Guide Appendix A— Crossover Cable Wiring Diagrams 25-pin ISI connector 25-pin DCE device...
  • Page 63 All manuals and user guides at all-guides.com Appendices 25-pin ISI connector 25-pin DTE device...

  • Page 64: Appendix B-Regulatory Information

    All manuals and user guides at all-guides.com ISI4608-PCI User Guide Appendix B—Regulatory Information Note: Warning:...
  • Page 65 All manuals and user guides at all-guides.com Appendices...
  • Page 66 All manuals and user guides at all-guides.com ISI4608-PCI User Guide...
  • Page 67 All manuals and user guides at all-guides.com Index...
  • Page 68 All manuals and user guides at all-guides.com ISI4608-PCI User Guide Index...
  • Page 69 All manuals and user guides at all-guides.com Index...
  • Page 70 All manuals and user guides at all-guides.com...
