  • Page 2: Quick Start Guide

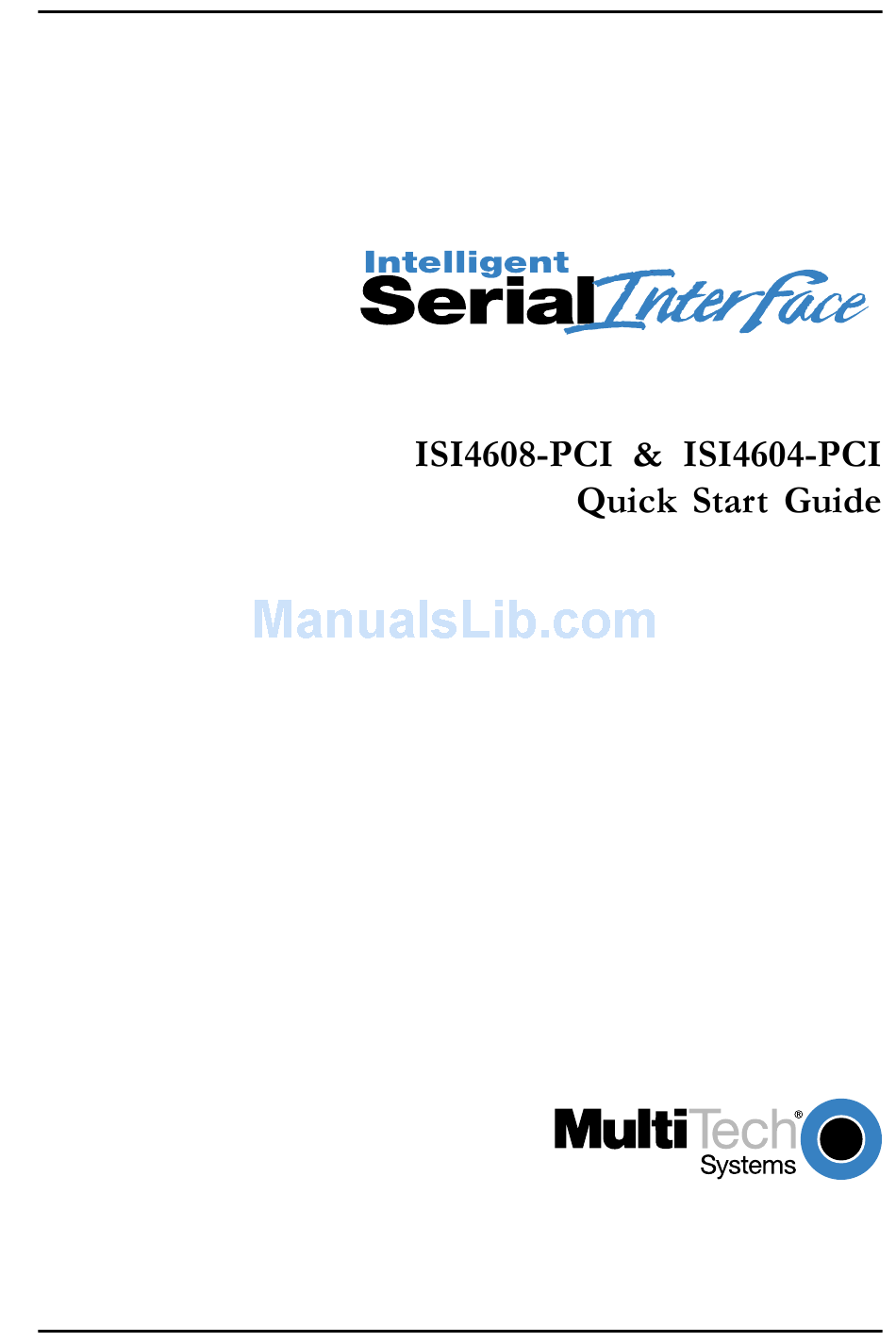

    Models: ISI4608-PCI & ISI4604-PCI Record of Revision Revision Description Manual released. All pages at Revision A. (8/25/00) Info added on Win 2000 & MTS Patents. (11/20/00) Info added on Win Me, Novell, Linux, & regulatory matters. (5/8/01) TRADEMARKS Quick Start Guide...
  • Page 3 Contents...

  • Page 5: Chapter 1-Introduction And Description

    Chapter 1—Introduction and Description...
  • Page 6 ISI460x-PCI Quick Start Guide Introduction to the Intelligent Serial Interface ® Product Description...

  • Page 7: How To Use This Manual

    Chapter 1—Introduction and Description How to Use This Manual...
  • Page 8 ISI460x-PCI Quick Start Guide Technical Specifications Computer Requirements ® Physical/Electrical/Environmental...

  • Page 9: Chapter 2-Hardware Installation

    Chapter 2—Hardware Installation...
  • Page 10 ISI460x-PCI Quick Start Guide Introduction Safety Warnings Telecom Hardware Installation Procedures...
  • Page 11 Chapter 2—Hardware Installation...
  • Page 12 ISI460x-PCI Quick Start Guide...

  • Page 13: Chapter 3-Driver Installation

    Chapter 3—Driver Installation...
  • Page 14 ISI460x-PCI Quick Start Guide Introduction ® Installing ISI460x-PCI Software for Windows 2000...

  • Page 15: Chapter 3-Software/Driver Installation

    Chapter 3—Software/Driver Installation...
  • Page 16 ISI460x-PCI Quick Start Guide ISI460x-PCI for Win 2000: Installing ISI Management Software (server OSs only) E:\SERVCARD\UTILITY\MGMT\SETUP.EXE...
  • Page 17 Chapter 3—Software/Driver Installation Remove ISI460x-PCI Driver (Windows 2000) ISI460x-PCI Software Installation Procedure for Windows NT 3.51/4.0...
  • Page 18 ISI460x-PCI Quick Start Guide...
  • Page 19 Chapter 3—Software/Driver Installation Removing ISI460x-PCI Card and Driver in Windows NT 3.51/4.0 I/O Addresses and IRQ Codes...
  • Page 20 ISI460x-PCI Quick Start Guide ISI460x-PCI Software Installation Procedure for Windows 95/98/Me...
  • Page 21 Chapter 3—Software/Driver Installation Removing the ISI460x-PCI Driver (Windows 95/98/Me)

  • Page 22: Netware Driver Installation

    ISI460x-PCI Quick Start Guide NetWare Driver Installation COPY E:\SERVCARD\DRIVERS\NOVELL\AIOSIX.NLM F:\SYSTEM...
  • Page 23 Chapter 3—Software/Driver Installation LOAD AIOISIX [port=W] [interrupt=X] [name=Y] [note=Z] Configuring Ports for NetWare Connect LOAD NWCCON Removing the Driver (Novell)

  • Page 24: Sco Open Server 5 Driver Installation

    ISI460x-PCI Quick Start Guide SCO Open Server 5 Driver Installation To install from CD-ROM: # mount -r /dev/cd0 /mnt # cd /mnt # cd servcard/drivers/sco50x #cp sco50x.tar / # cd < To format a floppy disk for SCO5: To untar the driver file and copy files onto floppy disk: # mkdir /isi >...
  • Page 25 Chapter 3—Software/Driver Installation # cp sco50x.tar /isi # cd /isi # tar xvf sco50x.tar # cd /isi/unifiedinstimg301 #scosh # scosh...
  • Page 26 ISI460x-PCI Quick Start Guide To install driver from floppy disk...

  • Page 27: Multitech Installation Script

    Chapter 3—Software/Driver Installation MultiTech Installation Script You can install up to 4 ISA/PCI cards in a system. The PCI cards will be autodetected on bootup. Enter the number of ISA cards you want to install and configure on your system (0-4): Multi_View is a utility which will allow you to have multiple sessions on terminals that...
  • Page 28 ISI460x-PCI Quick Start Guide This script also creates the devices in your system to communicate with the ports of ISICOM. ports is ttyl. printer is prnl. enable ttyl1a The default prefix for the tty The default prefix for the Is this acceptable? (y/n/...
  • Page 29 Chapter 3—Software/Driver Installation You have chosen the following setup The tty prefix is ttyl. The printer prefix is prnl. Number of Multi_View pseudo devices [ user-specified number ].
  • Page 30 ISI460x-PCI Quick Start Guide to continue lation complete Activating Ports in SCO Open Server 5 ttylbx ENTER ENTER shutdown -g0-y init 6 ttyl2A Press <Enter> Instal- ENTER...

  • Page 31: Removing The Driver (Sco Open Server 5)

    ACU ttylbX - 9600 ttylbx disable ttyl1a enable ttyl1A Removing the Driver (SCO Open Server 5) Chapter 3—Software/Driver Installation t tyl1a b, X enable ttyl1A...
  • Page 32 ISI460x-PCI Quick Start Guide Linux Driver for Multi-Tech ISI460x-PCI Server Cards LINUX: Pre-Installation Issues LINUX: Copying the driver from the media LINUX: Copying and untarring the driver from CD-ROM mount -r /dev/cdrom /mnt/cdrom cd /mnt/cdrom tar vxf {filename} /isi...
  • Page 33 LINUX: Copying and untarring the driver from a floppy Steps for copying the driver from a floppy: > mount -t ext2 /dev/fd0 /mnt/floppy > mkdir /isi > cd /isi > cp /mnt/floppy/kernel_2.2.x/* LINUX: Driver installation and loading > cd /isi >...

  • Page 34: Linux: Setting The Baud Rate

    ISI460x-PCI Quick Start Guide cat/proc/ioports insmod isicom io=card1, ... card4 irq=card1, ... card4 LINUX: Setting the baud rate ttyM1a stty 38400 < /dev/ttyM1a stty < /dev/...

  • Page 35: Linux: Verifying The Ports

    LINUX: Verifying the ports minicom 1a LINUX: TTY Devices Created by the Drivers: - /dev/ttyM1a - /dev/ttyM2a - /dev/ttyM3a /dev/ttyM4a - /dev/ttyM1a - /dev/ttyM2a - /dev/ttyM3a - /dev/ttyM4a Chapter 3—Software/Driver Installation ttyMxy ttyMxy cumxy /dev/ttyM1p /dev/ttyM2p /dev/ttyM3p /dev/ttyM4p /dev/ttyM1d /dev/ttyM2d /dev/ttyM3d /dev/ttyM4d cumxy...
  • Page 36 ISI460x-PCI Quick Start Guide - /dev/ttyM1a - /dev/ttyM2a - /dev/ttyM3a - /dev/ttyM4a Devices mapped for ISI460x-PCI Cards : - /dev/ttyM1a - /dev/ttyM1a LINUX -- Dial-in configuration: M2c:12345:respawn:/sbin/mgetty ttyM2c init q M2c:12345:off:/sbin/mgetty ttyM2c LINUX -- PPP setup: /dev/ttyM1h /dev/ttyM2h /dev/ttyM3h /dev/ttyM4h /dev/ttyM1d /dev/ttyM1h...

  • Page 37: Removing The Isi Driver (Linux)

    Miscellaneous: ttyM cat /proc/ioports cat /proc/interrupts insmod isicom ISIBase1=0x210 Irq1=5 ISIBase2=0x200 Irq2=10 Removing the ISI Driver (Linux) cd /usr/local rm -r ISICOM Chapter 3—Software/Driver Installation ttyMxy insmod rmmod isicom rm isictl cumxy...
  • Page 38 ISI460x-PCI Quick Start Guide rm ttyM1* rm ttyM2* rm ttyM3* rm ttyM4*...
  • Page 39 Chap 4: Warranty, Service, & Tech Support...

  • Page 40: Warranty, Service & Tech Support

    ISI460x-PCI Quick Start Guide Warranty, Service & Tech Support Limited Warranty Addendum for North American Products...

  • Page 41: Addendum For International Products

    Chapter 4—Service, Warranty, and Tech Support Addendum for International Products...
  • Page 42 ISI460x-PCI Quick Start Guide Out of Warranty Repair Cost Charts Upgrades and Product Support via Internet Technical Support...
  • Page 43 Chapter 4—Service, Warranty, and Tech Support Recording ISI460x-PCI Information Software User License Agreement...
  • Page 44 ISI460x-PCI Quick Start Guide...

  • Page 45: On-Line Warranty Registration

    Chapter 4—Service, Warranty, and Tech Support On-Line Warranty Registration About the Internet...
  • Page 46 ISI460x-PCI Quick Start Guide...
  • Page 47 Index...
  • Page 48 ISI460x-PCI Quick Start Guide Index...
  • Page 49 Index...
  • Page 52 82084806...
