- Page 1 Castor Gantry Instructions for use – English Bruksanvisning – Svenska Brukermanual – Norsk Brugsvejledning – Dansk Gebrauchsanweisung – Deutsch Handleiding – Nederlands Manuel d’utilisation – Français 50300004 SWL: 300 kg/661 lbs IFU no: 898 rev. 5 2021-12-22...
- Page 2 Table of contents English ....................Svenska ..................... Norsk ....................Danske ....................Deutsch .....................13 Netherlands ..................15 Français ....................17 Symbols ....................23 I F U...
-
Page 3: Functional Inspection

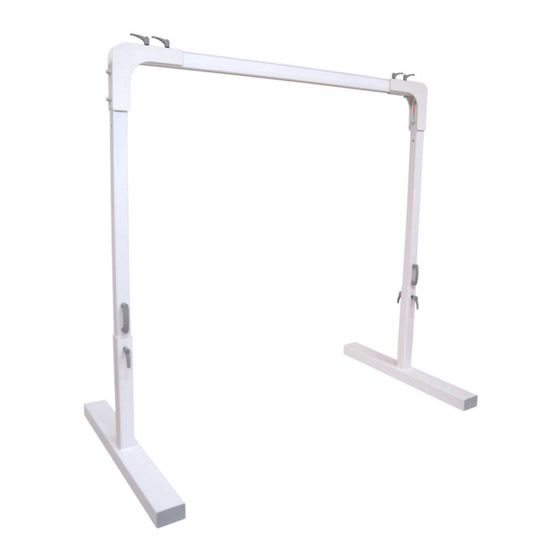

Castor Gantry Instructions for use - English Rail (not included) Corner piece Bolts with nuts for mounting Lift unit (not included) Upright Carrier handle for uprights Locking handle for uprights Foot Castor is a freestanding lift stand, which together with a rail and a lift unit, functions as a stationary patient lift. It is ideal for occasional lifting needs in a specific location, or where it is not possible to install a permanent rail system on the ceiling. -
Page 4: Component Parts
Assembly Component parts: 1. Two supporting feet 2. Two uprights with carrier handles 3. Rail (not included, ordered separately) 4. Two corner pieces Eight bolts with nuts for mounting uprights and rail Assembly of uprights 1. Insert each upright in it´s foot and adjust to the desired height. - Page 5 Mounting overhead rail and lift unit 1, 2. Insert the upright in the corner piece and secure with two bolts. Do the same with the other upright and corner piece. 150 mm 3. Mount the bolts on the rail, on both sides. 4.
-
Page 6: Final Inspection
Final inspection Inspect Castor for signs of wear and damage. Ensure that Castor stands stable on the floor, so that it does not tilt, and check that the uprights are adjusted to the same height. Check to ensure that all locking handles and bolts are securely tightened. Test lift function by lifting a person (not a patient) using an approved sling. - Page 7 Accessories Locking handle For easier assembly of the rail, the bolts can be replaced with four locking handles. Lift units SystemRoMedic’s lift units are available in different models and ver- sions, stationary or portable. The choice of model is determined by the required lifting capacity, the location and situations in which the lift is to be used, and the patient’s individual needs.
-
Page 8: Maintenance
Maintenance The lift must undergo thorough inspection at least once per year. This must be done by authorized Direct Healthcare Group service personnel and in accordance with the periodic inspection for Castor. Repairs and maintenance may only be done by authorized personnel using original spare parts. Cleaning When necessary, clean the lift using warm water or rubbing alcohol. - Page 9 2045-2495 1965-2415 2300 2140 1360-1660 44,8 50400264 Rail 64-2000 50400265 Rail 64-2200 2045-2495 1965-2415 2500 2340 1560-1860 45,48 2045-2495 1965-2415 2700 2540 1760-2060 46,16 50400266 Rail 64-2400 50400267 Rail 64-2600 2045-2495 1965-2415 2900 2740 1950-2260 46,84 50400268 Rail 64-2800 2045-2495 1965-2415 3100 2940...
