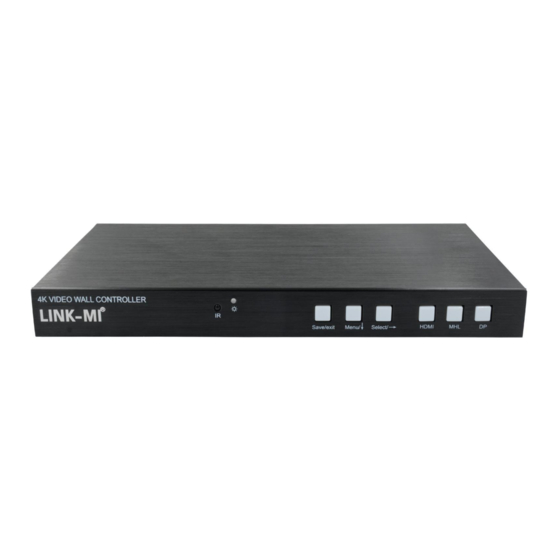

- Page 1 LM-TV04-4K2K 4K Video wall controller user manual...
- Page 2 Recording 1 . Installation instructions ………………………………… 2 2 . Product brief …………………………………………………3 3 . Machines installed ……………………………………………4 4 . Remote control settings ……………………………………5 5 . Keyboard controller …………………………………………6...
- Page 3 Installation instructions For the safety of you and equipment, please be sure to read the safety instructions carefully before using this device. If you have any problem, please read this manual first. Detailed description of the equipment operating in the body. If you still have questions, please contact us, we will give you a satisfactory answer as soon as possible.
- Page 4 Product brief 1 . Brief: LM-TV04-4K2K is a high-performance UHD Ultra HD 4K Four image mosaic, its main function is to 2x2 Tiled display unit displays a 3840x2160@60HZ Super high definition images. Products using advanced image processing technology, the input signal can support HDMI2.0, that is 3840x2160@60HZ, will not appear, even when playing fast animation delay, dropped frames are like.
- Page 5 Machines installed 1 . Open the package Check host attachments. Include the host, the power cord, remote control, warranty card and instructions. 2 . Installation machine TV sets: LCD TV or other display device setting input signal to HDMI State. Display unit has multiple HDMI input ports, make sure that connection splicer HDMI lines corresponding to the port.
- Page 6 2.3 . Input signal connections Product support 1 HDMI,1 MHL, 1 Displayport Input, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows: MHL : Support HDMI1.4 Signal input, maximum support 3840x2160@30HZ HDMI Signal input can be backwards compatible;...
- Page 7 1 . Remote setting: 1.1 . Call menu Press the remote control MENU Key, the following pop-up menu; 1.2 . Select the submenu Continuous press MENU Keys moves the cursor stays in the different submenu, submenu that stays as red text, press Key to select the menu entries, it becomes green text to the selected menu function sets the corresponding submenu.
- Page 8 3 . Split mode Through the submenu you can choose many kinds of stitching patterns, such as 1x2 、 1x3 、 1x4 、 2x2 Mode, as follows: 4 . Board, card ID -Flip By selecting "card ID "Number, in the menu" flip "setting the ID Whether an image needs to be rotated, 180 Four image mosaic 2x2 Splicing mode rotation ID 1 Hou, you need to output HDMI1 HDMI2 Swap.
