- Page 1 HD VIDEO WALL CONTROLLER LM-TV04B User manual...

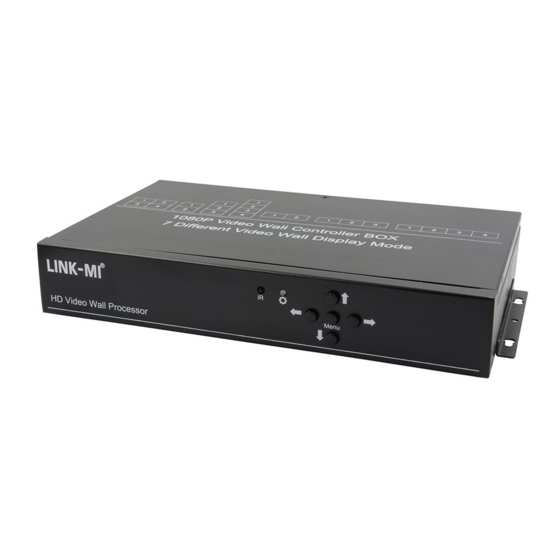

- Page 2 The non our department authorizes, prohibits dismantling the machine privately. Product overview: LM-TV04B is a high-definition 4 screen video wall controller,It's specially designed for LCD TV, ultra-narrow LCD screen and projector. It supports four HDMI signal outputs and connects four LCD TV sets or other display devices.
- Page 3 Users can operate the splicing processor more simply and intuitively, and design infrared remote control and keys. Users can control the splicer by keys or remote control, which makes the operation more humane and simple. Feature: 1. Support 7 different video wall modes; 2.
-
Page 4: Technical Parameter
Technical Parameter： Input HDMI signal HDMI1.3(HDCP1.2) compatible DVI1.0 Support 640*480 to 1920*1200@60Hz input,with VGA signal 3.5mm audio binding input AV signal Automatic identification of NTSC and PAL Video format：Mpeg1,2,4（up to 1920*1080@30P）； Divx，Xvid（up to 1920*1080@30P）； RM,RMVB（up to 1920*1080@25P）； H.264（up to 1920*1080@30P）； USB signal VC-1（up to 1920*1080@30P）；... -
Page 5: Standard Installation
Standard Installation: HDMI1 HDMI2 HDMI3 HDMI4 3.5mm stereo audio output 12V 3A Audio binding input with VGA HDMI IR Extend Speaker HD Player IR extend cable Power U DISK Menu HD Video wall Processor... - Page 6 Personality installation： （1）Horizontal splicing （2）Vertical splicing...
- Page 7 Installation instructions: 1. use the HDMI line to connect the output of the machine to the corresponding display screen. 2. After electrifying, the splicing of the deity indicator is a green light and the fan operation indicates that the machine works normally. Remote control function: Power Mute...
-
Page 8: Menu Description
Key panel function: Menu Menu/exit Down Left/volume reduce Right/enter/volumeincress Remarks： In the USB playback state ，the OK key also plays the play pause key;； The key is the switch output resolution without the menu. Menu description： OSD Language English Input Source HDMI Restore Factory Default Mosaic on Mosaic Config 2X2... - Page 9 1、 OSD Language： 20 type languages, such as Chinese or English can be selected. 2、Input Source：HDMI/VGA/AV/USB can be selected. 3、Restore Factory Default：One button reset to factory setting. 4、Mosaic：on or off can be selected. 5、Mosaic Config：User can select 1X2，2X2，1X3，1X4，2X1，3X1，4X1 mode。With 1X2 as an example, this splicing mode is 1 rows and 2 columns, So and other modes.
- Page 10 本机拼接地址信息 本机拼接地址信息 物理地址：2 物理地址：1 （Chart 2）Normal image stitching 8、MIRROR：180 degrees flipping for the image of the current physical address output. 9、 Horizontal mosaic pitch： The stitching image is fine tuned in the horizontal direction. The professional user can use the edge shielding or other extension functions.
- Page 11 1.2 confirm that the machine is open, and the LED lamp is green, and the fan is running normally. 1.3 confirm HDMI high definition connection line support HDMI1.3 and HDMI line is OK, interface connection is normal, no loose, drop. 1.4 confirm that the display can support 1080P@60Hz high-definition signal input.
