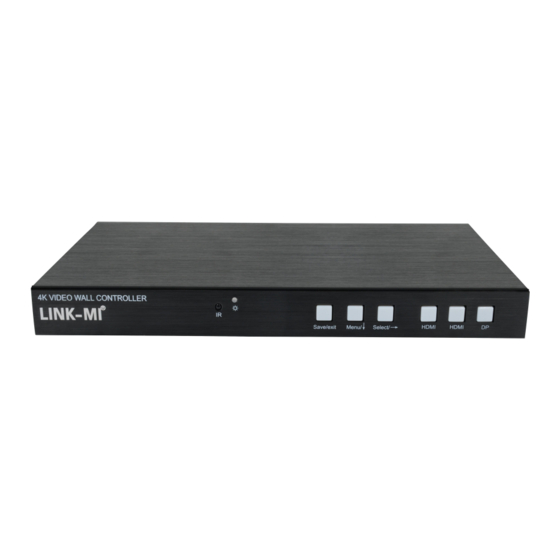

- Page 1 4K 2x2 Video wall controller LM-TV04-4K 2K User manual...
-
Page 2: Table Of Contents
Recording 1, Installation instructions……………………………… 2 2, 2thproduct brief ………………………………………… 3 3, 3thmachines installed…………………………………… 5 4, 4thremote control settings …………………………… 7 5, 5thKeyboard controller……………………………………9... -
Page 3: 1, Installation Instructions
Installation instructions For the safety of you and equipment, please be sure to read the safety instructions carefully before using this device. If you have any problem, please read this manual first. Detailed description of the equipment operating in the body. If you still have questions, please contact us, we will give you a satisfactory answer as soon as possible. -
Page 4: 2, 2Thproduct Brief
product brief 1, Brief: LM-TV04-4K2K is a high-performance UHD Ultra HD4K Four image mosaic, its main function is to 2x2 Tiled display unit displays 3840x2160@60HZ Super high definition images. Products using advanced image processing technology, the input signal can support HDMI2.0, that is 3840x2160@60HZ, will not appear, even when playing fast animation delay, dropped frames are like. - Page 5 3, Specification Name Spec HDMI input Interface HDMI A type（HDMI2.0 support HDCP2.2） Resolution Up to 3840*2160@60Hz Mobile signal input Interface HDMI A type（HDMI1.4 support HDCP2.0 and mobile signal） Resolution Up to 3840*2160@30Hz DP input Interface DP1.2 Resolution Up to 3840*2160@60Hz Audio output Fit for output video HDMI output...
-
Page 6: 3, 3Thmachines Installed
machines installed 1, Open the package Check host attachments. Include the host, the power cord, remote control, warranty card and instructions. Installation machine 2.1、TV sets: LCD TV or other display device setting input signal to HDMI State. Display unit has multiple HDMI input ports, make sure that connection splicer HDMI lines corresponding to the port;... - Page 7 2.3 、Input signal connections Product support 1 HDMI,1 Mobile signal, 1DisplayportInput, all input embedded audio input or binding, users can access all the signals on demand, or access part of the signal, interface functions and interface pictures are as follows: Mobile signal : Support HDMI1.4 Signal input, maximum support 3840x2160@30HZ HDMI Signal input can be backwards compatible;...
-
Page 8: 4, 4Thremote Control Settings
2.5、Power on boot After the above cable connection is good, through the power adapter to the device input12VDC power supply, the power led shows red, equipment in good working condition; remote control settings Stitching device and the display unit are attached, connected to power the red power light is on, the device works, by remote control or key makes it easy to set up your equipment, or the chassis configuration. - Page 9 Through the remote control handle menu "signal source" set to "automatic selection", in the case of equipment had no access to other sources, you can automatically insert the signal source and the signal source identification automatically display splicing unit. 2.2, Manual selection: Can be used for a single source or multiple sources at the same time connected to the device, by manually switching the signal source on the remote control display screen displays an image.
-
Page 10: 5, 5Thkeyboard Controller
Keyboard controller Through the device keyboard control functions with the remote control button function control, this section explains the function of each button, as follows: MenuKey: The following pop-up menu, repeatedly press strikeMenuButton makes the cursor stays in the different submenus; Select/:The Red menu parameters are modified;... - Page 11 SHENZHEN LINK-MI TECHNOLOGY CO.,LTD WWW.LINK-MI.COM...
