Summary of Contents for LINK-MI LM-TV04S

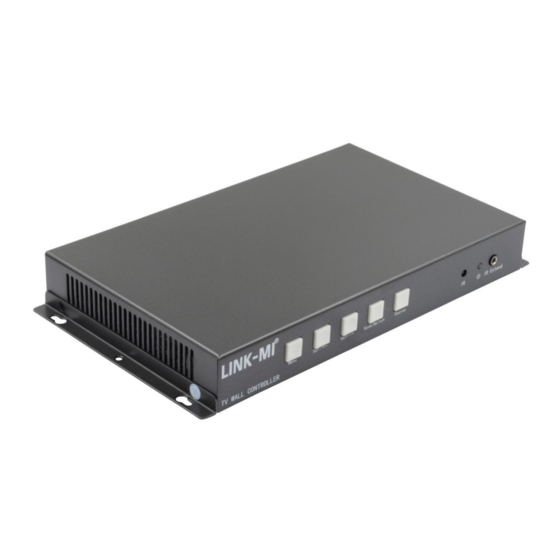

- Page 1 Video wall controller LM-TV04S Operating Manual...
- Page 2 3、Mirror Function LM-TV04S supports for each display unit to a 180 degree mirror flip. When the user uses common LCD TV splicing, the upper LCD TV is turned 180 degrees, which greatly reduces the splicing gap of liquid crystal, and reduces the distortion caused by the large side seam of the image，as shown below:...
- Page 3 5、U disk playback function LM-TV04S Splicing LCD processor can realize USB playing and splicing function. Users in the realization of the basic function of LCD splicing, and then realize simple video or picture format splicing playback, only need to our product...
- Page 4 III.Hardware Description IV. Product pictures...
- Page 5 VI. System topology diagram...
- Page 6 VII. Technical specifications name Supported Standards Video input HDMI input HDMI1.3 DVI1.0，HDMI embedded audio USB 2.0 Port； Support video, pictures, MP3, TXT format playback, Support video coding format： Mpeg1,2,4 (1920*1080@30P and below), Divx, Xvid (1920*1080@30P and below), RM, RMVB (1920*1080@25P and below), H.264 (1920*1080@30P and below), VC-1 (1920*1080@30P and below), MJPEG (640*480@30P).
