- Page 1 4K 2x2 Video Wall Controller Model No.: LM-TV04P User Manual...
-
Page 2: Table Of Contents
Catalogue Introduction.......................2 Feature........................2 Technical Parameters....................3 Package Content....................... 4 Panel Description......................4 Connection........................6 Installation........................ 7 Roaming Window settings..................10 Video mode......................11 Main Menu instructions..................14 Trouble shooting....................17... - Page 3 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. ♦ Make sure that all devices you will be connecting up are properly grounded. ♦...
-
Page 4: St Introduction
Introduction This 2x2 video wall controller support 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x DP 1.2 in, max resolution support 4K@60Hz 4:4:4 HDCP 2.2. It allows any of there inputs routed to the four HDMI outputs. Users can choose different video mode via remote like 2x2 video wall mode, PIP (picture in picture) mode etc to meet their needs . -
Page 5: Rd Technical Parameters
Silent smart fan, no noise at work. Technical Parameters Name Specification (LM-TV04P) Input Signal HDMI 1 HDMI 1.4, resolution support 640x480 to 3840x2160@30Hz HDMI 2 HDMI 2.0, resolution support 640x480 to 3840x2160@60Hz DP 1.2, resolution support 640x480 to 3840x2160@60Hz... -
Page 6: Th Package Content

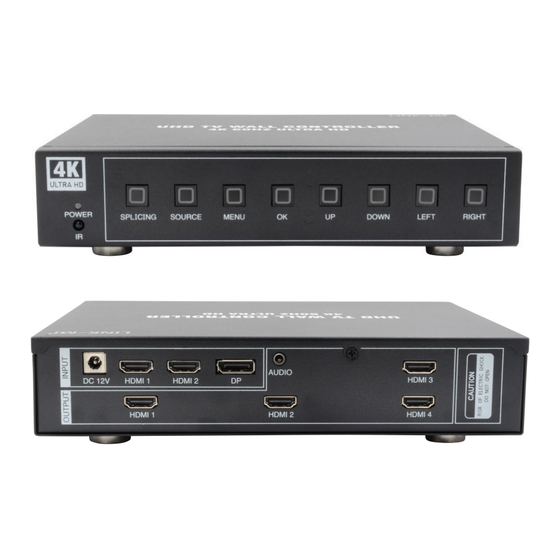

Package Content 1) 1x Main Unit (4K 2x2 Video Wall Controller) 2) 1x Power Adapter 3) 1x Remote 4) 1x User Manual Panel Description 1. Front Panel... - Page 7 2. Rear Panel 3. Remote Description...
-
Page 8: Th Connection
Connection... -
Page 9: Th Installation
Installation 1. Connect the input source(HDMI1/HDMI2/DP) to the video wall controller. 2. 4 output ports connect 4 TV. - Page 10 3. Use remote or press front button MENU to select splicing menu,(User can use LEFT, RIGHT, UP and DOWN choose splicing mode), set mode to 2x2. 4. Select HDMI port NO. And splicing NO. And adjust according to the prompts in the upper left corner of the screen (for example: 2x2 mode, set the first screen HDMI port to 1 and the Splice Position number is 1 ,and the upper left corner will show : Splice Mode 2x2, HDMI port 1 and Splicelnder 1)
- Page 11 5. The other 3 screens setting are the same. 6. Press SOURNU+ LETF/RIGHT key to choose and switch input signal. If via remote can Press INPUT+ LEFT/RIGHT key)
-
Page 12: Th Roaming Window Settings
Roaming Window settings 1. Press MENU+LET/RIGHT key into roaming window mode. Then press HIGH/LOW key select Roaming windows mode and press OK to choose ,the roaming windows mode support 1 P,2PLR ,2PTR,PIP,4P mode . 2. Press OK button to enter PIP mode. -
Page 13: Th Video Mode
3. Press SOURNU +left /right keys to select the input signal or (remote INPUT+ left/ right key) to switch the first screen signal to HDMI 1 Press OK to select the first window, so that the icon runs to the switching signal and press left and right to adjust to the switch Confirm the signal with OK. -
Page 16: Th Main Menu Instructions
Main Menu instructions 1. lmage menu: adjust brightness, chroma, contrast. 2. Setup menu: Set splicing mode, splicing position, border blanking; border blanking function: this function only takes effect when the screen is in splicing state, the default value is zero, and adjusting the size of this value can remove part of the border image... - Page 17 3. lmage menu: Image rotation, adjust screen scale mode, automatic dormancy; image rotation: can rotate 90 degrees , 180 degrees ,270 degrees, left and right mirror, up and down mirror flip. Proportional pattern: support 16:9 4:3 5:4 1: 1.
- Page 18 4. Time menu: Set language, restore factory settings, panel key light turn on/off. 5. Cutting Black Edge: Adjusts the horizontal vertical position only in the 1 P(2x2 video wall mode) splicing state, sets the image width height .
-
Page 19: Th Trouble Shooting
Trouble shooting No Image 1.Verify the input source is powered on and connected with controller box. 2.To confirm display device is turned on and connected with controller box . 3.Check the system connection status. 4.Check the cable is intact. 5.Try restarting the device to re-catch the signal. 6.Try to use another input source. - Page 20 2.Wire quality (HDMI cable requirements in line with HDMI 1.4 standard) 3.Check the screen and the input source. SHENZHEN LINK-MI TECHNOLOGY CO., LTD. WWW.LINK-MI.COM E-mail: sales@link-mi.com...
