Rosario DVS Face
COMPATIBILITY
• Travis Ind. DVS Insert
TOOLS REQUIRED
• 5/16" Nutdriver
PACKING LIST
• Black Face
• Black Welded Door
NOTE: On newer units (2008 or later), leave the glass on and move the face connector to the forward
position (see illustration below). For older units, remove the glass.
Page 1 of 2
• Four 10-24 Thread-Cutting Screws

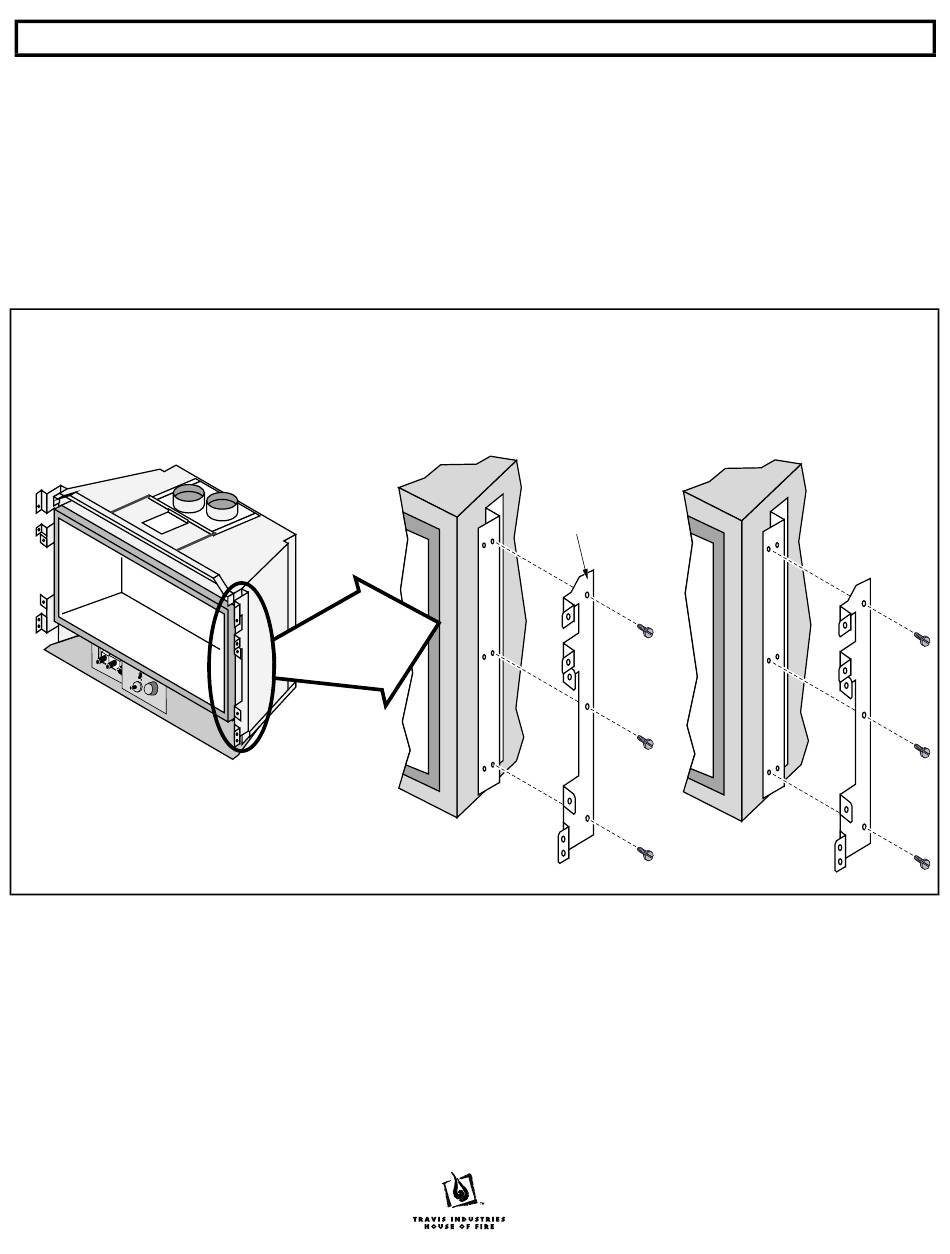

Remove the face connector bracket
from the heater (on both sides).
Black with Black Door #99300425
Re-attach the face connector to the
heater using the forward mounting holes.
Face Connector
Bracket
5/19/09
