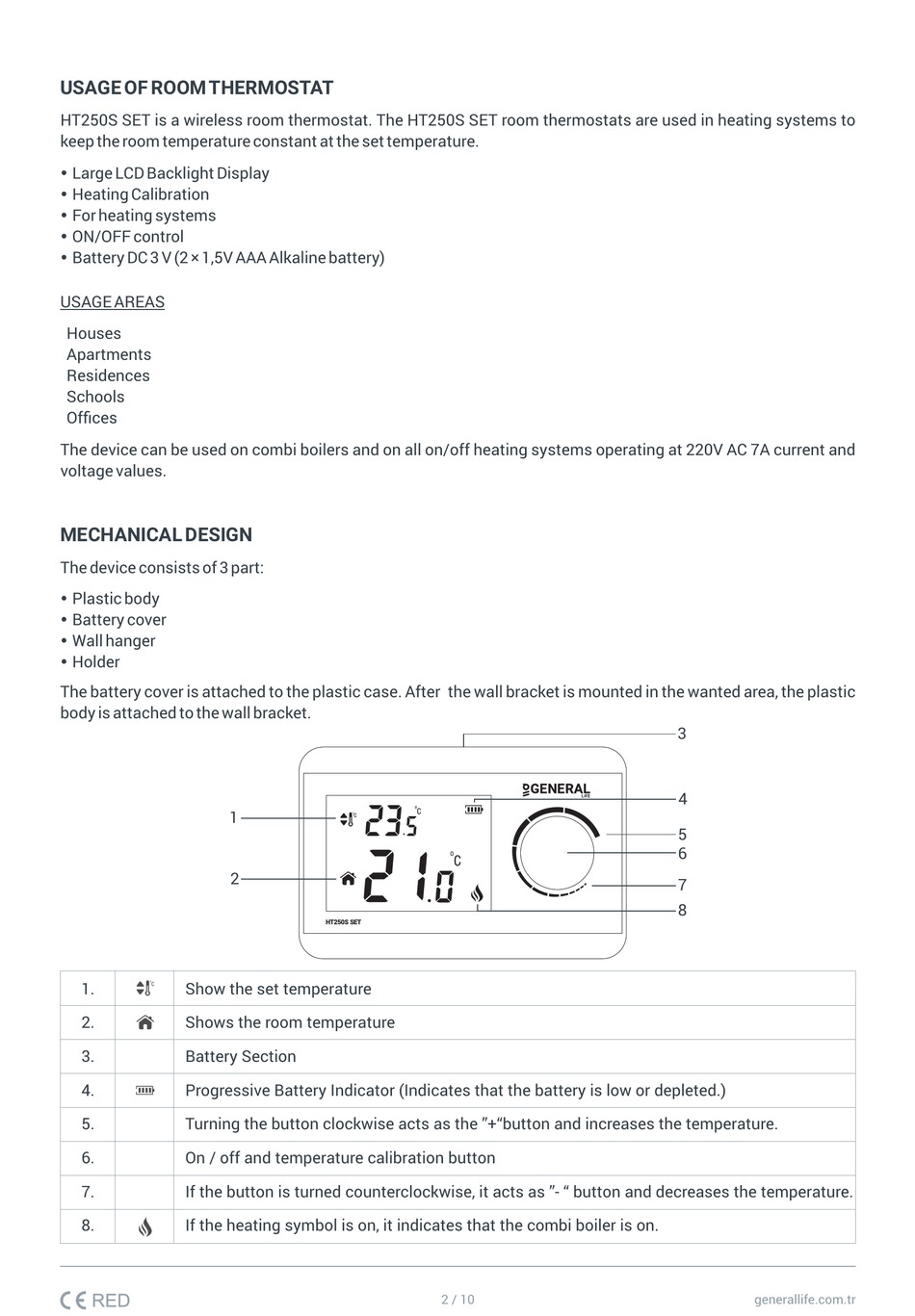

USAGE OF ROOM THERMOSTAT
HT250S SET is a wireless room thermostat. The HT250S SET room thermostats are used in heating systems to
keep the room temperature constant at the set temperature.
 Large LCD Backlight Display
 Heating Calibration
 For heating systems
 ON/OFF control
 Battery DC 3 V (2 × 1,5V AAA Alkaline battery)
USAGE AREAS
Houses
Apartments
Residences
Schools
Offices
The device can be used on combi boilers and on all on/off heating systems operating at 220V AC 7A current and
voltage values.

MECHANICAL DESIGN

The device consists of 3 part:
 Plastic body
 Battery cover
 Wall hanger
 Holder
The battery cover is attached to the plastic case. After the wall bracket is mounted in the wanted area, the plastic
body is attached to the wall bracket.
1
2
1. Show the set temperature
2. Shows the room temperature
3. Battery Section
4. Progressive Battery Indicator (Indicates that the battery is low or depleted.)
5. Turning the button clockwise acts as the "+"button and increases the temperature.
6. On / off and temperature calibration button
7. If the button is turned counterclockwise, it acts as "- " button and decreases the temperature.
8. If the heating symbol is on, it indicates that the combi boiler is on.
O
C
C
O
C
HT250S SET
2 / 10
3
4
5
6
7
8
