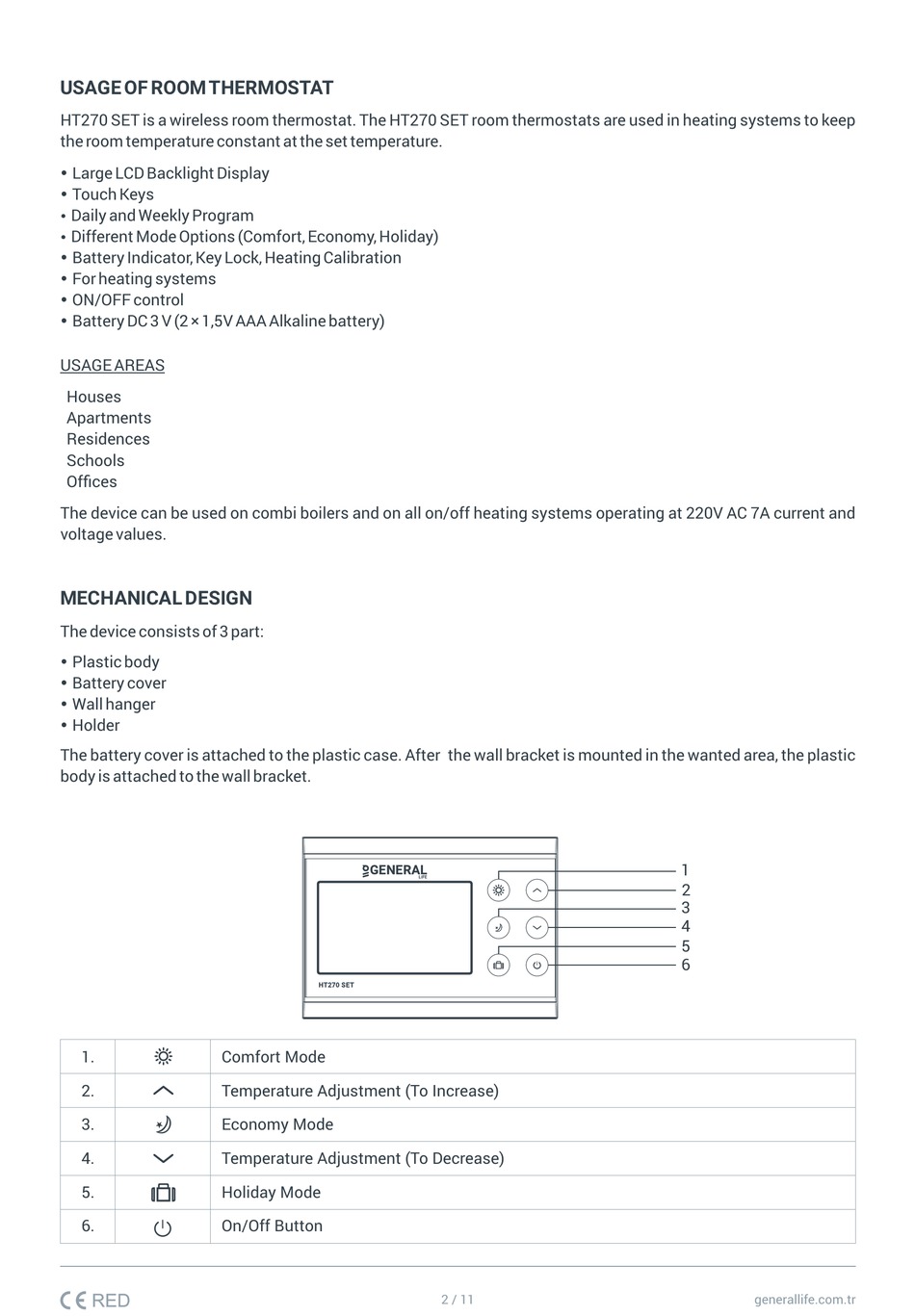

USAGE OF ROOM THERMOSTAT
HT270 SET is a wireless room thermostat. The HT270 SET room thermostats are used in heating systems to keep
the room temperature constant at the set temperature.
 Large LCD Backlight Display
 Touch Keys
Daily and Weekly Program

Different Mode Options (Comfort, Economy, Holiday)

 Battery Indicator, Key Lock, Heating Calibration
 For heating systems
 ON/OFF control
 Battery DC 3 V (2 × 1,5V AAA Alkaline battery)
USAGE AREAS
Houses
Apartments
Residences
Schools
Offices
The device can be used on combi boilers and on all on/off heating systems operating at 220V AC 7A current and
voltage values.

MECHANICAL DESIGN

The device consists of 3 part:
 Plastic body
 Battery cover
 Wall hanger
 Holder
The battery cover is attached to the plastic case. After the wall bracket is mounted in the wanted area, the plastic
body is attached to the wall bracket.
1. Comfort Mode
2. Temperature Adjustment (To Increase)
3. Economy Mode
4. Temperature Adjustment (To Decrease)
5. Holiday Mode
6. On/Off Button
2 / 11
1
2
3
4
5
6
