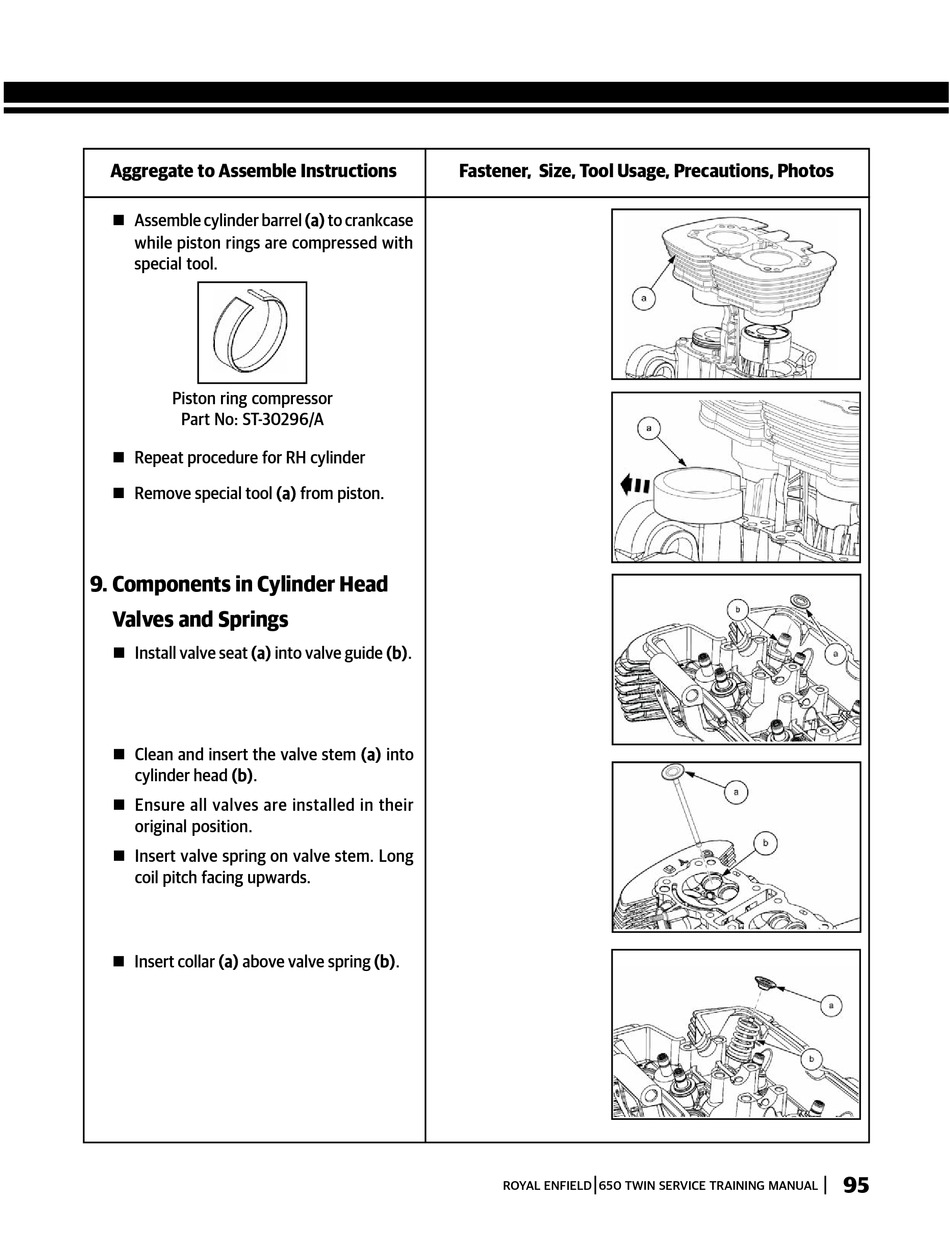

Royal Enfield INTERCEPTOR 650 2018 Service Training Manual page 96

Aggregate to Assemble Instructions
 Assemble cylinder barrel (a) to crankcase
while piston rings are compressed with
special tool.
Piston ring compressor
Part No: ST-30296/A
 Repeat procedure for RH cylinder
 Remove special tool (a) from piston.
9. Components in Cylinder Head
Valves and Springs
 Install valve seat (a) into valve guide (b).
 Clean and insert the valve stem (a) into
cylinder head (b).
 Ensure all valves are installed in their
original position.
 Insert valve spring on valve stem. Long
coil pitch facing upwards.
 Insert collar (a) above valve spring (b).
Fastener, Size, Tool Usage, Precautions, Photos
