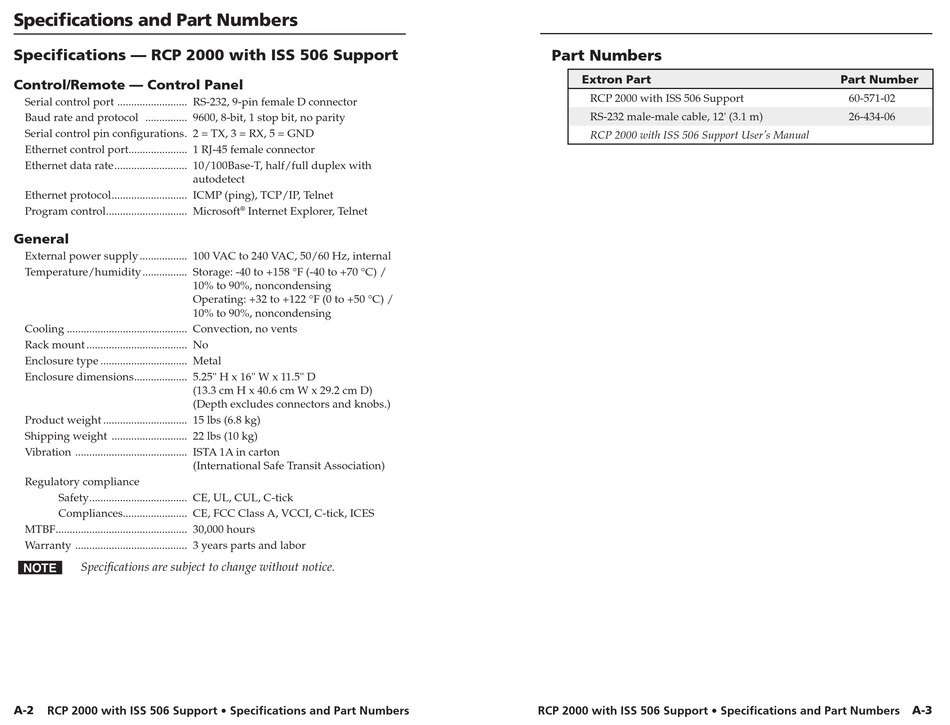

Specifications and Part Numbers
Specifications — RCP 2000 with ISS 506 Support
Control/Remote — Control Panel
Serial control port ......................... RS-232, 9-pin female D connector
Baud rate and protocol ............... 9600, 8-bit, 1 stop bit, no parity
Serial control pin configurations. 2 = TX, 3 = RX, 5 = GND
Ethernet control port..................... 1 RJ-45 female connector
Ethernet data rate.......................... 10/100Base-T, half/full duplex with
Ethernet protocol........................... ICMP (ping), TCP/IP, Telnet
Program control............................. Microsoft
General
External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, internal
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /
Cooling ........................................... Convection, no vents
Rack mount .................................... No
Enclosure type ............................... Metal
Enclosure dimensions................... 5.25" H x 16" W x 11.5" D
Product weight .............................. 15 lbs (6.8 kg)
Shipping weight ........................... 22 lbs (10 kg)
Vibration ........................................ ISTA 1A in carton
Regulatory compliance
Safety................................... CE, UL, CUL, C-tick
Compliances....................... CE, FCC Class A, VCCI, C-tick, ICES
MTBF............................................... 30,000 hours
Warranty ........................................ 3 years parts and labor
Specifications are subject to change without notice.
N
A-2
RCP 2000 with ISS 506 Support • Specifications and Part Numbers
autodetect
® Internet Explorer, Telnet
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
(13.3 cm H x 40.6 cm W x 29.2 cm D)
(Depth excludes connectors and knobs.)
(International Safe Transit Association)

Part Numbers

Extron Part
RCP 2000 with ISS 506 Support
RS-232 male-male cable, 12' (3.1 m)
RCP 2000 with ISS 506 Support User's Manual
RCP 2000 with ISS 506 Support • Specifications and Part Numbers
Part Number
60-571-02
26-434-06
A-3
