Extron electronics IR 101 Universal Remote User Manual

1. Power down the switcher.
2. Connect the IR 101 adapter's 25-pin plug to the Remote
connector on the switcher's rear panel.
3. Plug the IR detector's RJ-11 male connector into the IR 101
adapter's rear panel RJ-11 female connector.
4. Position the IR detector for the best line of sight of the infrared
light from the IR 101 hand-held remote controller.
5. Power up the switcher.
IR 201 (Part #70-141-03) installation
Install the IR 201 Sys 4/8/10/AV remote control system (figure 3) as
follows:
INPUTS OUTPUTS
L 1 R L 2 R L 3 R L 4 R L 5 R L 6 R L A R L
SW 6 SA MX
T-connector
IR-201 remote control

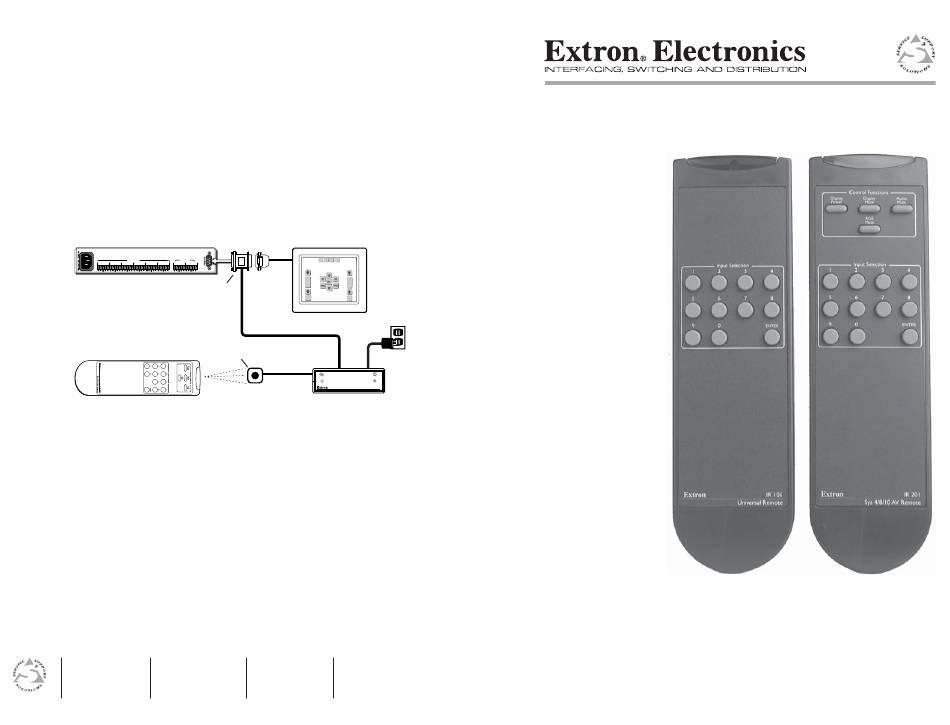

Figure 3 — Typical IR 201 application
1. Power down the switcher.
2. Connect the IR 201 adapter's 9-pin T-connector to the RS-232
connector on the switcher's rear panel. If desired, connect a
host device, such as a computer or touch panel control, to the
switcher via this 9-pin D connector for serial RS-232 control.
3. Plug the IR detector's RJ-11 male connector into the IR 201
adapter's rear panel RJ-11 female connector.
4. Connect the external power supply to the IR 201 adapter. Plug a
standard IEC power cord into the power supply to connect the
adapter to a 100 to 250VAC, 50 Hz or 60 Hz power source.
5. Position the IR detector for the best line of sight of the infrared
light from the IR 201 hand-held remote controller.
6. Power up the switcher.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com Fax 714.491.1517 Fax +31.33.453.4050
© 2002 Extron Electronics. All rights reserved.
B R
RS-232
Power
3 foot cable
supply
IR detector
6 foot
cable
IR-201 remote control adapter
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide
RS-232
control
IR-201
Infrared Remote Controls

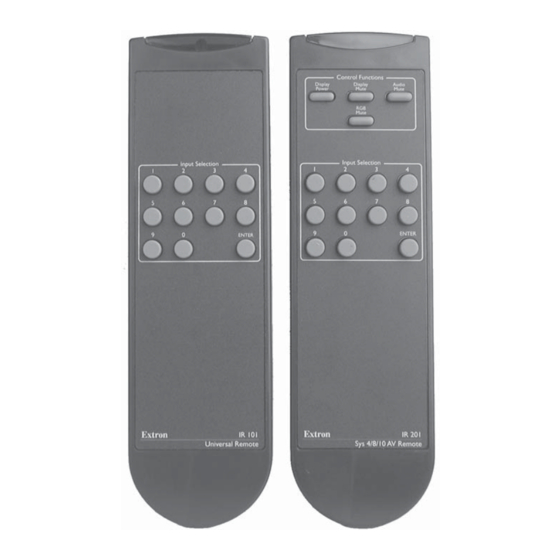

IR 101 Universal Remote
IR 201 SYS 4/8/10/AV Remote
68-200-01 Rev. E
Printed in the USA
04 02
