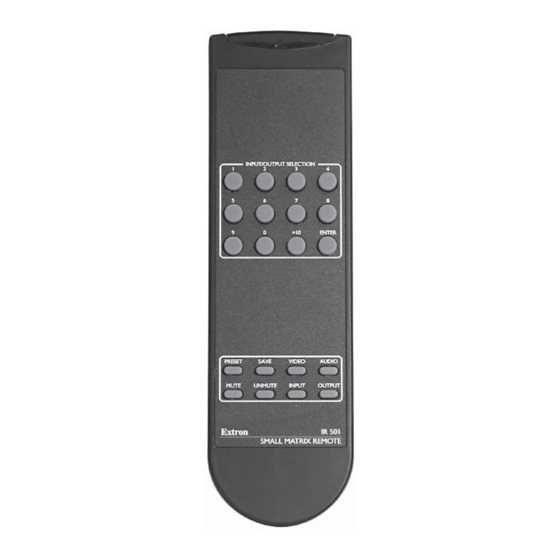

Extron electronics IR 501 User Manual

Operations (Continued)
Unmute an output
Press the UNMUTE button to unmute all video and audio outputs. All of
the switcher's Output LEDs flash on for a second.

Troubleshooting

If the switcher does not properly respond to IR remote control
functions, check the following:
• You may be too far from the switcher. The maximum operating
range is 30 feet.
• You may be too far to the side of the switcher. The remote control
must be pointed within 30 degrees of the switcher's IR sensor for
best results.
• You may be taking too long to enter the sequence. The unit times
out if no command is received in 5 seconds.
• The two AAA batteries may be dead. Replace the batteries as
shown in figure 1.
• The switcher's front panel security lockout may be on. Toggle the
security lockout off. See the appropriate switcher's manual.
• The room lighting may be interfering with the IR signals. Keep
the switcher out of bright light.
• When used with a MAV A/V series switcher, the switcher's IR
receiver may be disabled. Refer to the MAV 44 / 48 / 84 / 88 Series
Matrix Switchers manual to enable the IR receiver.
