Operation, cont'd
3. Press Cut two times, until the switcher IP address is
displayed in the LCD window. The Color/Tint button
flashes.
4. Set the switcher's IP address to 000.000.000.000 as follows:
a. Press one of the picture control buttons to access the
desired octet of the switcher's IP address.
b. When the desired octet is
blinking in the LCD window,
rotate the H knob all the way
to the left to set the address
block to 000.
c. Repeat steps a and b as
needed for each address block
that needs to be set to 000.
5. If you need to change the switcher's
baud rate, press Cut repeatedly until the
Sw Baud screen appears, then rotate the
H knob to set the switcher's baud rate.
6. When finished, press the Detail button to save your
settings and exit the setup menu.

Setting the Display Mode

The RCP 2000 with ISS 506 support can operate in the four
display modes. The wipe, PIP, and title modes are accessed
by selecting them from the modes menu. Dissolve mode is
accessed by pressing the Dissolve button.

Default cycle

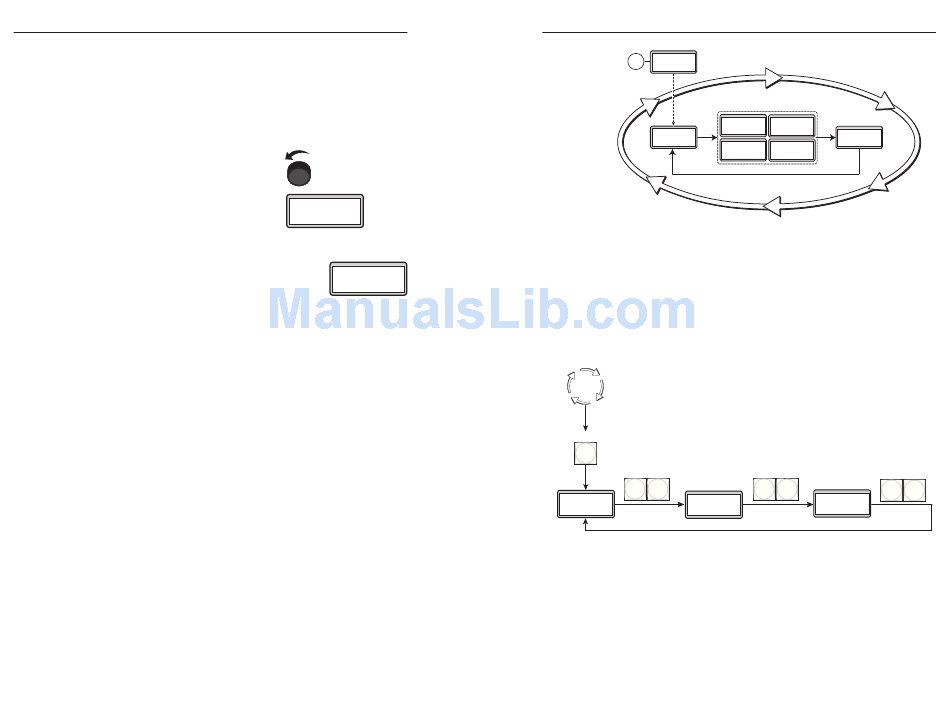

After power-up and while the RCP 2000 is idle, the LCD screen
displays the default cycle of screens, showing
• The status of the link with the ISS 506.
• The current display mode with its sub-effect number (if
applicable) and duration
• The product name, RCP 2000, and the current firmware
version number (3.nn)
See the diagram on the next page.
RCP 2000 with ISS 506 Support • Operation
3-8
Rotate to set
H
blinking octet to 000.
S 000.000
I 000.000
Sw Baud
9600
Default Cycle
RCP for
Power
on
ISS 506
3 sec.
Wipe #03
0.5 Sec
ISS 506
Linked
Title
Lvl 150
Default cycle
When you press the Wipe or Dissolve button to select a mode,
the RCP exits the default cycle and either begins cycling
through the Mode menu (Wipe button) or enters Dissolve mode
(Dissolve button).

Mode menu options

To display the Mode menu, press and hold the Wipe while the
default cycle is running.
Default
Cycle
Press and hold
WIPE
Hold Press
WIPE
DISSOLVE
Wipe #03
Pip #03
0.5 Sec 0.5 Sec
Mode menu
The following modes can be selected from the Mode menu.

Wipe mode

In wipe mode, you can select from 24 transition sub-effects
(including standard, curtain, square, and plus wipes) to use
when the display is changing between the preview image and
the program image.
RCP 2000 with ISS 506 Support • Operation
Pip #03
0.5 Sec
RCP 2000
Ver N.NN
Dissolve
0.5 Sec
Hold Press
Hold Press
WIPE
DISSOLVE WIPE
DISSOLVE
Title
Lvl 150
3-9
