Operation

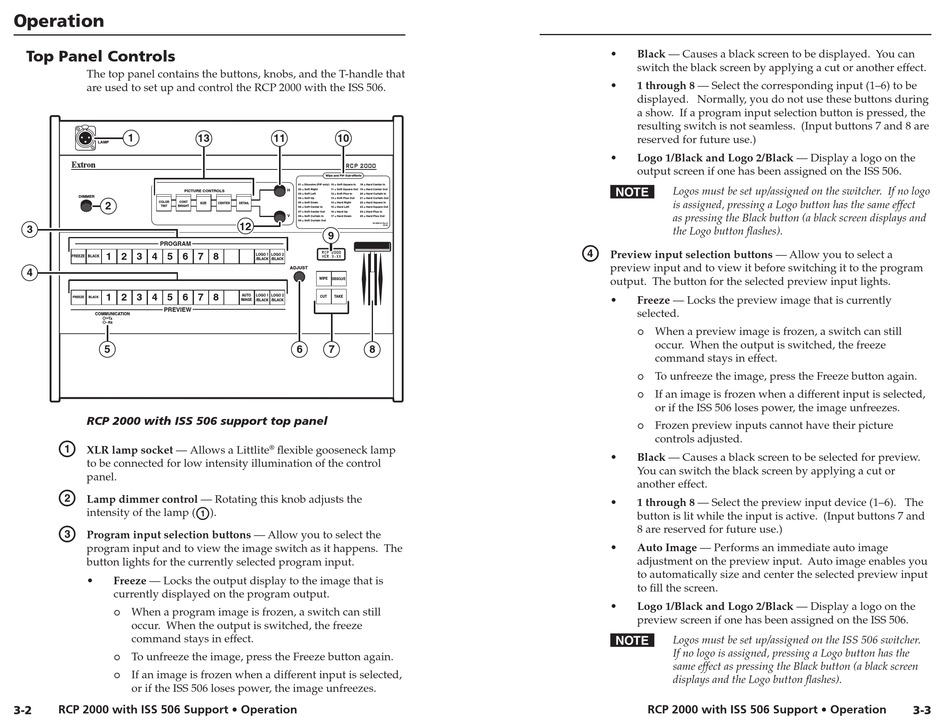

Top Panel Controls

The top panel contains the buttons, knobs, and the T-handle that
are used to set up and control the RCP 2000 with the ISS 506.
1
LAMP
PICTURE CONTROLS
DIMMER
2
COLOR CONT
TINT BRIGHT
3
PROGRAM
1 2 3 4 5 6 7 8
FREEZE BLACK
4
1 2 3 4 5 6 7 8
FREEZE BLACK
PREVIEW
COMMUNICATION
Tx
Rx
5
RCP 2000 with ISS 506 support top panel
a
XLR lamp socket — Allows a Littlite
to be connected for low intensity illumination of the control
panel.
b
Lamp dimmer control — Rotating this knob adjusts the
intensity of the lamp (
c
Program input selection buttons — Allow you to select the
program input and to view the image switch as it happens. The
button lights for the currently selected program input.
• Freeze — Locks the output display to the image that is
currently displayed on the program output.
When a program image is frozen, a switch can still
¡
occur. When the output is switched, the freeze
command stays in effect.
To unfreeze the image, press the Freeze button again.
¡
If an image is frozen when a different input is selected,
¡
or if the ISS 506 loses power, the image unfreezes.
RCP 2000 with ISS 506 Support • Operation
3-2
13 11 10
Wipe and PIP Sub-effects
01 = Dissolve (PIP only) 10 = Soft Square In 18 = Hard Center In
H 02 = Soft Right 11 = Soft Square Out 19 = Hard Center Out
03 = Soft Left 12 = Soft Plus In 20 = Hard Curtain In
04 = Soft Up 13 = Soft Plus Out 21 = Hard Curtain Out
SIZE CENTER DETAIL 05 = Soft Down 14 = Hard Right 22 = Hard Square In
06 = Soft Center In 15 = Hard Left 23 = Hard Square Out
07 = Soft Center Out 16 = Hard Up 24 = Hard Plus In
V
08 = Soft Curtain In 17 = Hard Down 25 = Hard Plus Out
09 = Soft Curtain Out
12
33-1635-01 Rev A
9
RCP 2000
LOGO 1 LOGO 2
VER 3.XX
/BLACK /BLACK
ADJUST
WIPE
DISSOLVE
AUTO LOGO 1 LOGO 2
CUT TAKE
IMAGE /BLACK /BLACK
6 7 8
flexible gooseneck lamp
®
a
).
03 08
• Black — Causes a black screen to be displayed. You can
switch the black screen by applying a cut or another effect.
• 1 through 8 — Select the corresponding input (1–6) to be
displayed. Normally, you do not use these buttons during
a show. If a program input selection button is pressed, the
resulting switch is not seamless. (Input buttons 7 and 8 are
reserved for future use.)
• Logo 1/Black and Logo 2/Black — Display a logo on the
output screen if one has been assigned on the ISS 506.
N Logos must be set up/assigned on the switcher. If no logo
is assigned, pressing a Logo button has the same effect
as pressing the Black button (a black screen displays and
the Logo button flashes).
d
Preview input selection buttons — Allow you to select a
preview input and to view it before switching it to the program
output. The button for the selected preview input lights.
• Freeze — Locks the preview image that is currently
selected.
When a preview image is frozen, a switch can still
¡
occur. When the output is switched, the freeze
command stays in effect.
To unfreeze the image, press the Freeze button again.
¡
If an image is frozen when a different input is selected,
¡
or if the ISS 506 loses power, the image unfreezes.
Frozen preview inputs cannot have their picture
¡
controls adjusted.
• Black — Causes a black screen to be selected for preview.
You can switch the black screen by applying a cut or
another effect.
• 1 through 8 — Select the preview input device (1–6). The
button is lit while the input is active. (Input buttons 7 and
8 are reserved for future use.)
• Auto Image — Performs an immediate auto image
adjustment on the preview input. Auto image enables you
to automatically size and center the selected preview input
to fill the screen.
• Logo 1/Black and Logo 2/Black — Display a logo on the
preview screen if one has been assigned on the ISS 506.
N Logos must be set up/assigned on the ISS 506 switcher.
If no logo is assigned, pressing a Logo button has the
same effect as pressing the Black button (a black screen
displays and the Logo button flashes).
RCP 2000 with ISS 506 Support • Operation 3-3
