2.2.2 Wall Mount Plate Mounting

To install the Industrial Gigabit Ethernet Switch on the wall, please follow the instructions described below.
Step 1: Remove the DIN-Rail from the Industrial Gigabit Ethernet Switch; loose the screws to remove the
DIN-Rail.
Step 2: Place the wall mount plate on the rear panel of the Industrial Gigabit Ethernet Switch.

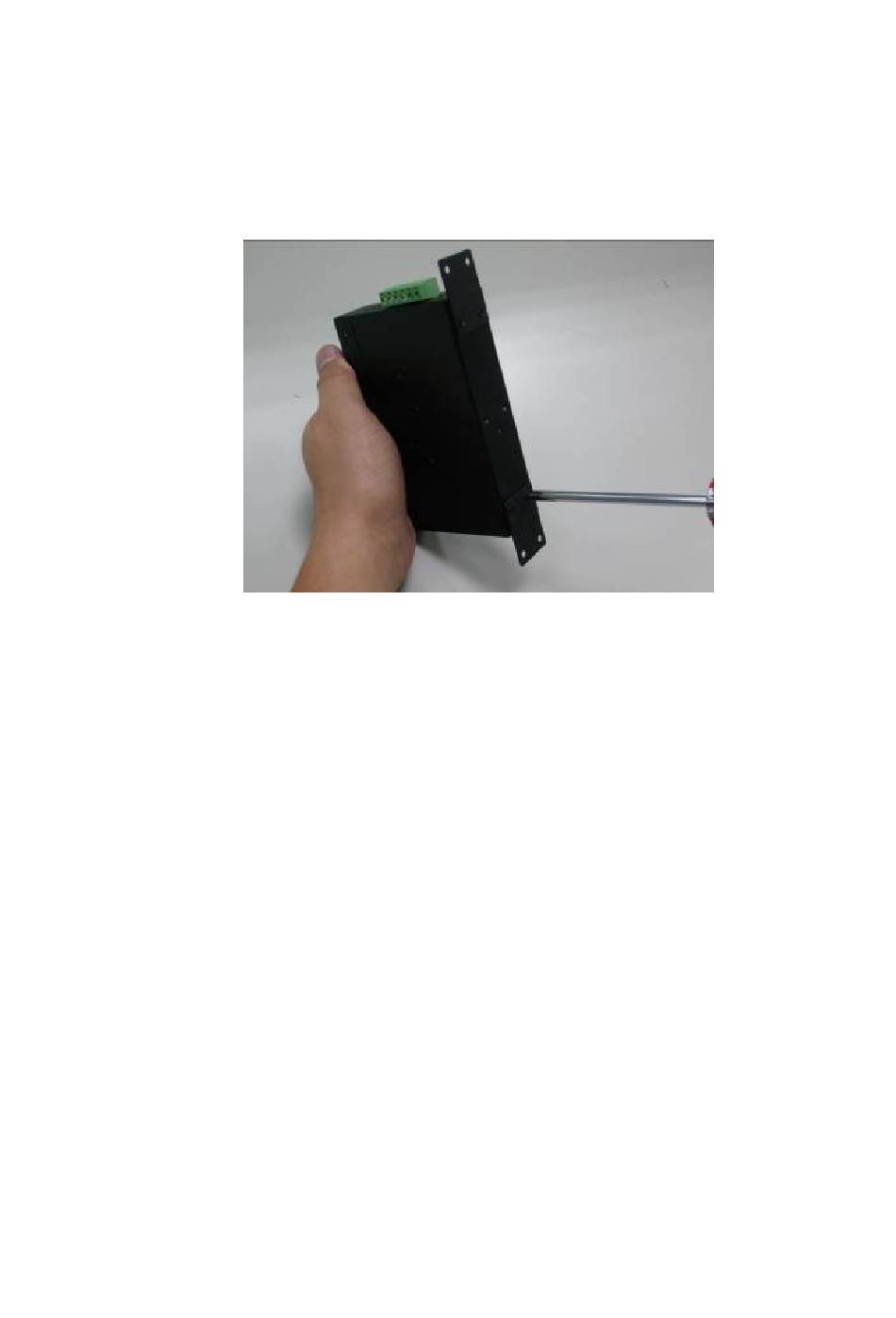

Step 3: Use the screws to screw the wall mount plate on the Industrial Gigabit Ethernet Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the Industrial Gigabit Ethernet Switch on the wall.
Step 5: To remove the wall mount plate, reverse steps above.
