2.1.3 Switch Upper Panel

The upper panel of the Industrial Gigabit Ethernet Switch consists of one terminal block connector within two DC power
inputs, and also provides 3 DIP Switches for 100/1000X fiber support on two SFP slots and fiber redundant function.
2-2 shows the upper panel of the Industrial Gigabit Ethernet Switch.
The 3 DIP switch settings and descriptions:
The fiber redundancy function explains in chapter 2.1.7 Redundancy Overview.

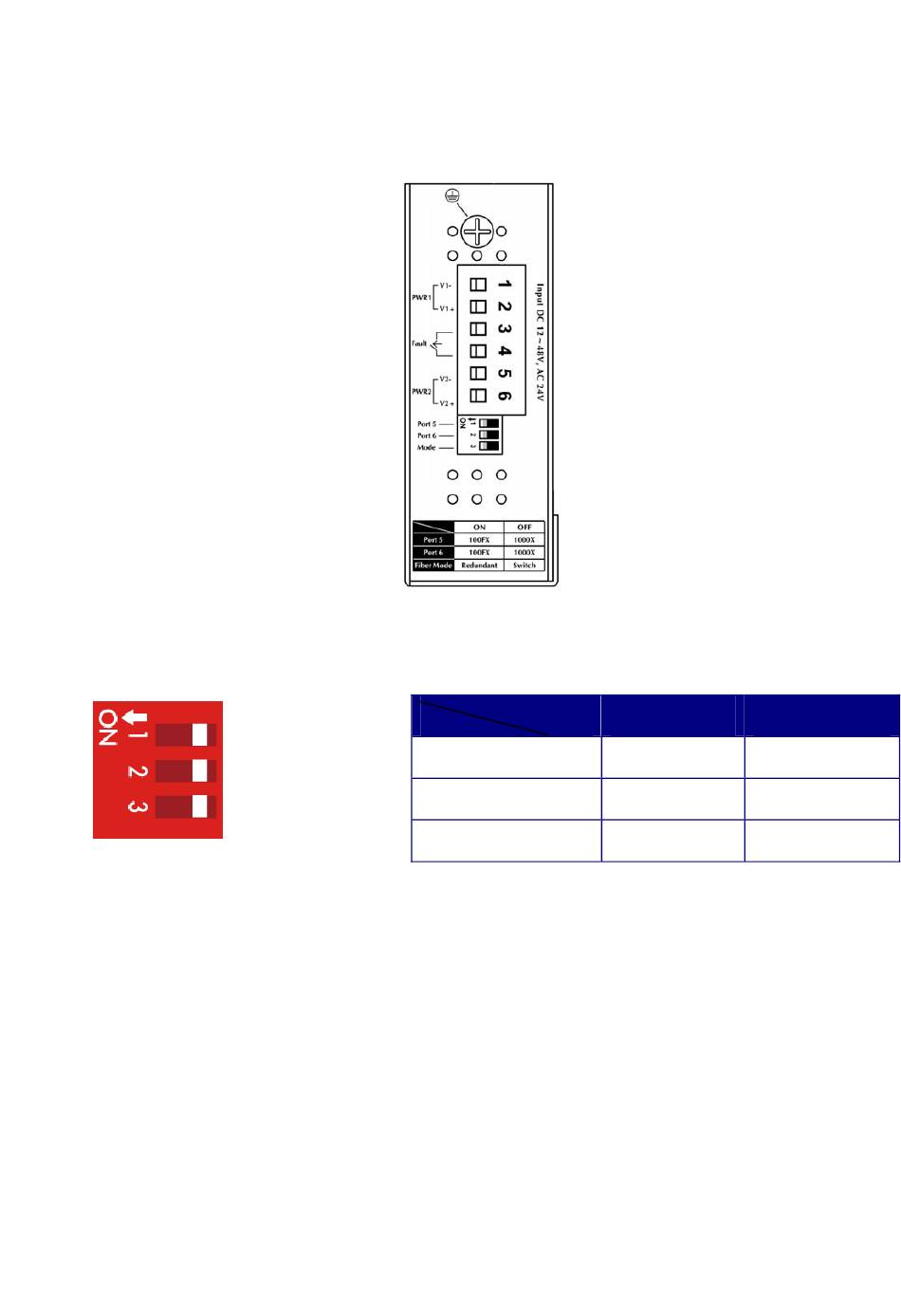

Figure 2-2: Industrial Gigabit Ethernet Switch Upper Panel
Port 5 (DIP 1)
Port 6 (DIP 2)
Fiber Mode (DIP 3)
12
ON
100FX 1000X
100FX 1000X
Fiber Redundant Switch
Figure
OFF
