Page 1: Ifs Ns2503-8P/2C Quick Installation Guide
IFS NS2503-8P/2C Quick Installation Guide P/N 1072597 • REV 00.02 • ISS 31JAN13... - Page 2 Copyright © 2013 UTC Fire & Security Americas Corporation, Inc. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. The IFS NS2503-8P/2C and logo are trademarks of United Trademarks and patents Technologies.
-
Page 3: Table Of Contents
IFS NS2503-24P/2C Quick Guide TABLE OF CONTENTS IFS NS2503-8P/2C QUICK INSTALLATION GUIDE............. 1 INTRODUCTION ......................4 Package Contents ............................4 Requirements .............................4 Terminal Setup ............................4 Login in the Console Interface........................6 Configure IP address ..........................6 Start Web-based Management........................8 Logging on the Managed Switch ......................9 Resetting the IP address and Admin Password .................. -
Page 4: Introduction

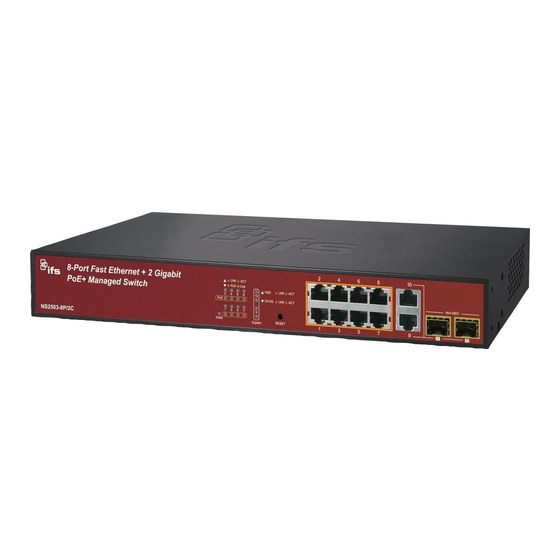

IFS NS2503-8P/2C Quick Guide Introduction The IFS GE-DS-82, GE-DS-82-POE and NS2503-8P/2C switches have 8 10/100Mbps ports with 2 Gigabit TP/SFP fiber optical combo ports and are equipped with robust layer 2 features; the description of these models as below: GE-DS-82... - Page 5 IFS NS2503-8P/2C Quick Guide Figure 1: Console Management Diagram A terminal program is required to make the software connection to the Managed Switch. Windows' Hyper Terminal program may be a good choice. The Hyper Terminal can be accessed from the Start menu.
-
Page 6: Login In The Console Interface
IFS NS2503-24P/2C Quick Guide Login in the Console Interface Once the terminal has connected to the device, turn on the Managed Switch, and the terminal will display the status of testing being performed. Then, the following message asks the login user name and password. The factory default user name / password as following and the login screen in Figure 3 appears. - Page 7 IFS NS2503-8P/2C Quick Guide The screen displays the current IP address, Subnet Mask and Gateway. As show in Figure Figure 4: Show IP information Screenshot Configure IP address On “Switch(config)# ” prompt, enter the following command and press <Enter>. As show in Figure 5.
-
Page 8: Start Web-Based Management
IFS NS2503-8P/2C Quick Guide Figure 5: Set IP address Screenshot Repeat Step 1 to check if the IP address is changed. If the IP is successfully configured, the Managed Switch will apply the new IP address settings immediately. You can access the Web interface of the Managed Switch through the new IP address. -
Page 9: Logging On The Managed Switch
IFS NS2503-8P/2C Quick Guide The Managed Switch can be configured through an Ethernet connection, make sure the manager PC must be set on same the IP subnet address with the Managed Switch. For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. -
Page 10: Resetting The Ip Address And Admin Password
IFS NS2503-8P/2C Quick Guide Figure 7: Web Main Page Screenshot The Switch Menu on the left of the Web page let you access all the commands and statistics the Switch provides. We recommend using Internet Explore 6.0 or above to access Managed Switch. -
Page 11: Contacting Technical Support
IFS NS2503-8P/2C Quick Guide Contacting Technical Support Contact technical support if you encounter any difficulties during this installation. Please make sure you have the requested diagnostic or log files ready before you contact us by phone or go to www.interlogix.com/customer-support.
