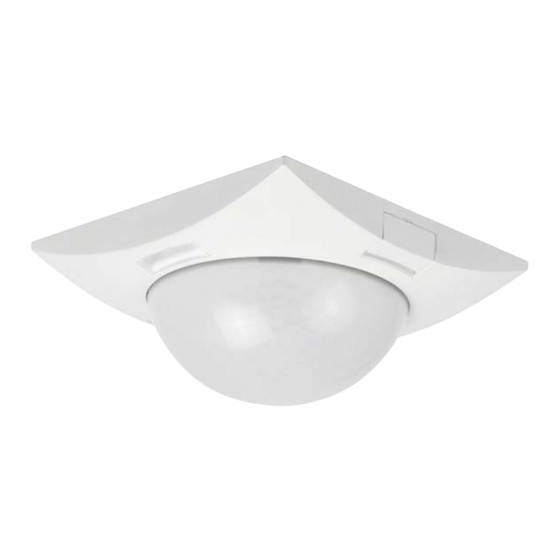

- Page 1 Swiss Garde 360 Presence KNX UP Item no. Model 351- 25031 SG360P KNX UP 3505100250319 25020N SG360P KNX UP 3505100250203 nv Niko sa, Industriepark West 40, 9100 Sint-Niklaas, Belgium Edition 12-2021 www.niko.eu, +32 3 778 90 80, support@niko.eu Art.-Nr. 25020N (351-25031)
- Page 2 Presence detectors 360° KNX for ceiling flush-mounting The family of Swiss Garde 360 Presence KNX UP presence detectors is characterised by the following outstanding features: 1 light output for switching, dimming or scenery selection. • 1 HVAC-channel controls heating, ventilation and air •...
-
Page 3: Installation
Important notice The presence detectors Swiss Garde 360 Presence KNX UP is suitable for ceiling mounting indoors only (IP20, class II). In case of errors such as continuous light, uncontrolled switching, etc., please consult page 7 „troubleshooting“. Function The presence detector Swiss Garde 360 Presence KNX UP reacts to heat radiation of moving bodies. -
Page 4: Frontal View
SG360P KNX UP (351- 25031, 25020N) frontal view rear view bus terminal + (red) bus terminal – (grey) programming button rating plate... - Page 5 PIR sensors numbering LED green LED red programming Flashes with each detection glows upon pressing the programming button The PIR sensors 1 2 3 4 can be activated via ETS individually or in groups, using the above numbering scheme. After KNX/EIB bus connection: the detector takes approx.
- Page 6 Detection range The 360° omnidirectional detection range as well as the dense detection area allow for an optimal function. The range depends on the mounting height as well as the angle of approach (high sensitivity when crossing a switching segment). Since the device registers the temperature differences between the source of heat and the ambient temperature, the detection range may vary depending on site conditions (floor heating, etc.).
- Page 7 Troubleshooting Error Cause/remedies load doesn`t switch ON • twilight value set to high • check light/luminaire/fuses Detector triggers ON and • check detection area for OFF without reason or potential causes of false light never turns OFF: triggering: animals, heating, etc. may all doing faulty switching •...
-
Page 8: Technical Data
This product complies with all of the relevant European guidelines and regulations. For radio equipment Niko llc declares that the radio equipment in this manual conforms with the 2014/53/ EU directive. The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
