Swiss Garde 360 Presence KNX/KLR RA
Item no.
(351-) 25032
(351-) 25034
(351-) 25036
nv Niko sa, Industriepark West 40, 9100 Sint-Niklaas, Belgium
www.niko.eu, +32 3 778 90 80, support@niko.eu
Instruction Manual
Model
SG360KNX/KLR RA 16 m
SG360KNX/KLR RA 16 m EB
SG360KNX/KLR RA 30 m
EAN
3505100250326
3505100250340
3505100250364
Edition 12-2021
Art.-Nr. (351-) 25032,
(351-) 25034, (351-) 25036
Advertisement
Related Manuals for Niko SG360KNX/KLR RA 16 m
Summary of Contents for Niko SG360KNX/KLR RA 16 m
- Page 1 (351-) 25034 SG360KNX/KLR RA 16 m EB 3505100250340 (351-) 25036 SG360KNX/KLR RA 30 m 3505100250364 nv Niko sa, Industriepark West 40, 9100 Sint-Niklaas, Belgium Edition 12-2021 www.niko.eu, +32 3 778 90 80, support@niko.eu Art.-Nr. (351-) 25032, (351-) 25034, (351-) 25036...

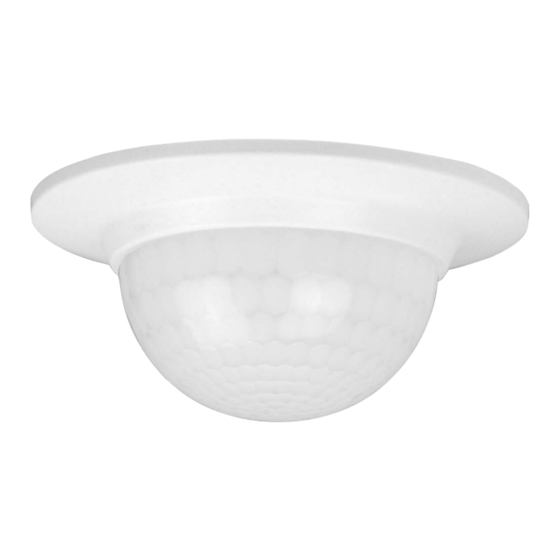

- Page 2 Presence detectors 360° KNX/KLR RA/EA for ceiling flush-mounting The family of Swiss Garde 360 Presence KNX/KLR RA/EA presence detectors is characterised by the following outstanding features: 2 -channel constant light control • The in-built 2-channel constant light control can be easily adjusted to meet any customer’s needs.
-
Page 3: Installation
Important notice The presence detectors Swiss Garde 360 Presence KNX/KLR RA/EA/EB is suitable for ceiling mounting indoors only. In case of errors such as continuous light, uncontrolled switching, etc., please consult page 7 „troubleshooting“. Function The presence detector Swiss Garde 360 Presence KNX/KLR RA/EA/EB reacts to heat radiation of moving bodies. -
Page 4: Frontal View
SG360P KNX/KLR RA 16m (351- 25032) frontal view rear view bus terminal + (red) bus terminal – (grey) rating plate... - Page 5 PIR sensors numbering lux sensor programming button LED green LED red programming Flashes with each detection glows upon pressing the programming button The PIR sensors 1 2 3 can be activated via ETS individually or in groups, using the above numbering scheme. After KNX/EIB bus connection: the detector takes approx.
- Page 6 Detection range The 360° omnidirectional detection range as well as the dense detection area allow for an optimal function. The range depends on the mounting height as well as the angle of approach (high sensitivity when crossing a switching segment). Since the device registers the temperature differences between the source of heat and the ambient temperature, the detection range may vary depending on site conditions (floor heating, etc.).
- Page 7 Troubleshooting Error Cause/remedies load doesn`t switch ON • twilight value set to high • check light/luminaire/fuses Detector triggers ON and • check detection area for OFF without reason or potential causes of false light never turns OFF: triggering: animals, heating, etc. may all doing faulty switching •...
-
Page 8: Technical Data
This product complies with all of the relevant European guidelines and regulations. For radio equipment Niko llc declares that the radio equipment in this manual conforms with the 2014/53/ EU directive. The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.
