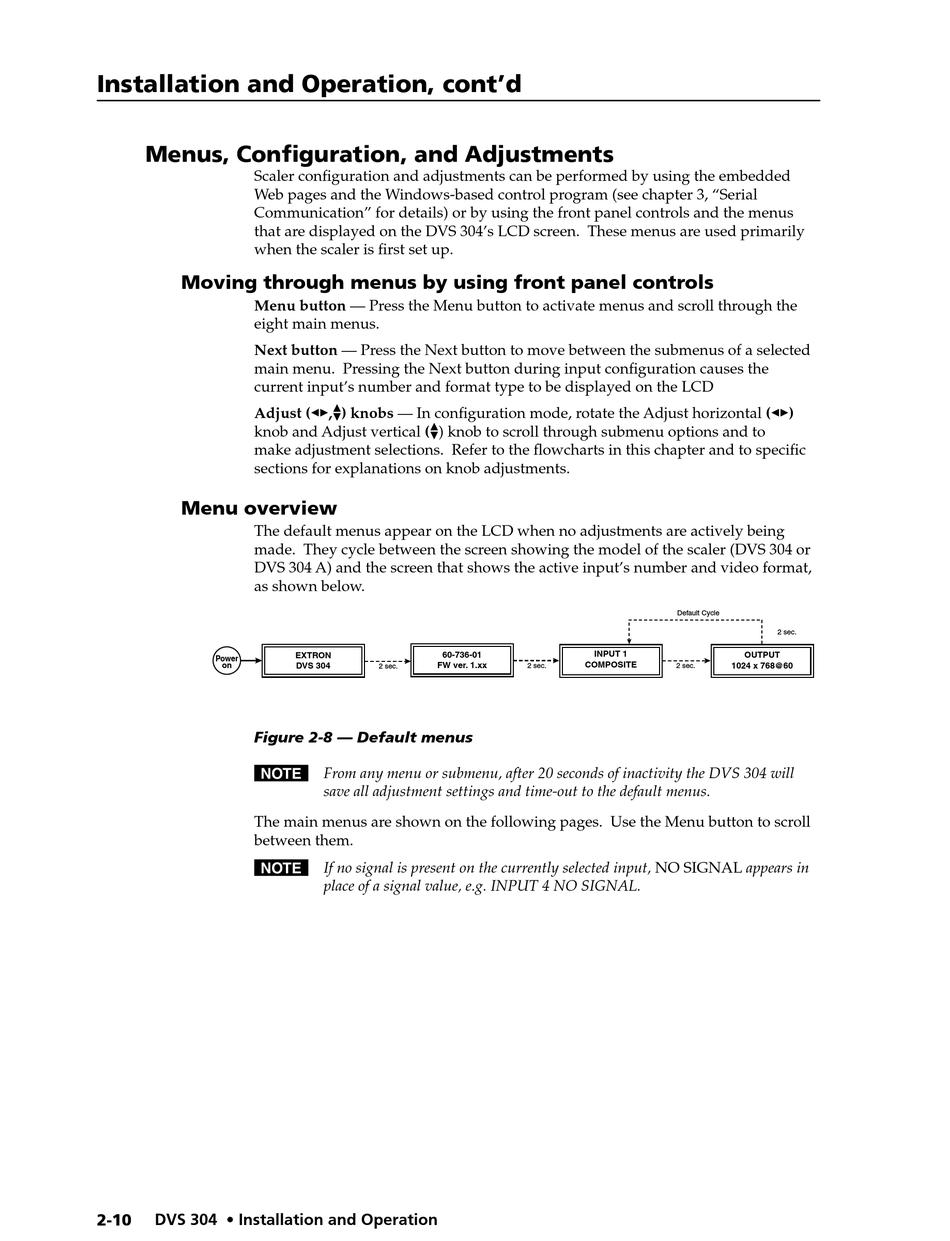

Installation and Operation, cont'd

Menus, Configuration, and Adjustments

Scaler configuration and adjustments can be performed by using the embedded
Web pages and the Windows-based control program (see chapter 3, "Serial
Communication" for details) or by using the front panel controls and the menus
that are displayed on the DVS 304's LCD screen. These menus are used primarily
when the scaler is first set up.

Moving through menus by using front panel controls

Menu button — Press the Menu button to activate menus and scroll through the
eight main menus.
Next button — Press the Next button to move between the submenus of a selected
main menu. Pressing the Next button during input configuration causes the
current input's number and format type to be displayed on the LCD
Adjust ([,{) knobs — In configuration mode, rotate the Adjust horizontal ([)
knob and Adjust vertical ({) knob to scroll through submenu options and to
make adjustment selections. Refer to the flowcharts in this chapter and to specific
sections for explanations on knob adjustments.

Menu overview

The default menus appear on the LCD when no adjustments are actively being
made. They cycle between the screen showing the model of the scaler (DVS 304 or
DVS 304 A) and the screen that shows the active input's number and video format,
as shown below.
Power
on
Figure 2-8 — Default menus
N From any menu or submenu, after 20 seconds of inactivity the DVS 304 will
The main menus are shown on the following pages. Use the Menu button to scroll
between them.
N If no signal is present on the currently selected input, NO SIGNAL appears in
2-10 DVS 304 • Installation and Operation
60-736-01
EXTRON
DVS 304 FW ver. 1.xx
2 sec.
save all adjustment settings and time-out to the default menus.
place of a signal value, e.g. INPUT 4 NO SIGNAL.
Default Cycle
INPUT 1
COMPOSITE
2 sec. 2 sec.
2 sec.
OUTPUT
1024 x 768@60
