Installation and Operation, cont'd
Contoured
Bracket
Base

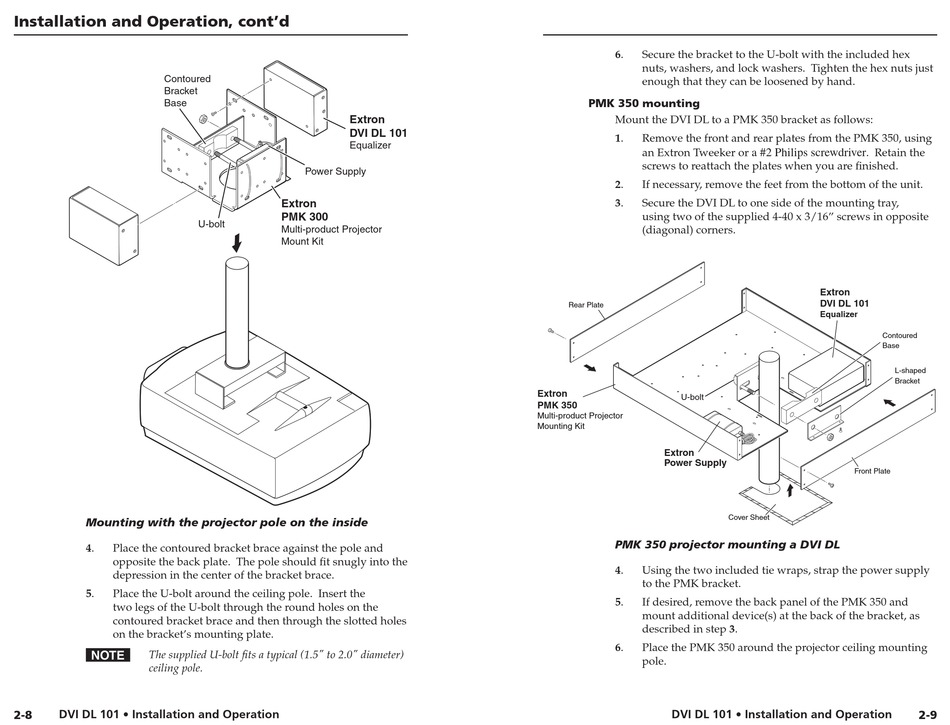

Mounting with the projector pole on the inside
4. Place the contoured bracket brace against the pole and
opposite the back plate. The pole should fit snugly into the
depression in the center of the bracket brace.
Place the U-bolt around the ceiling pole. Insert the
5.
two legs of the U-bolt through the round holes on the
contoured bracket brace and then through the slotted holes
on the bracket's mounting plate.
N The supplied U-bolt fits a typical (1.5" to 2.0" diameter)
ceiling pole.
DVI DL 101 • Installation and Operation
2-8
Extron
DVI DL 101
Equalizer
Power Supply
Extron
PMK 300
U-bolt
Multi-product Projector
Mount Kit
6. Secure the bracket to the U-bolt with the included hex
nuts, washers, and lock washers. Tighten the hex nuts just
enough that they can be loosened by hand.

PMK 350 mounting

Mount the DVI DL to a PMK 350 bracket as follows:
1. Remove the front and rear plates from the PMK 350, using
an Extron Tweeker or
screws to reattach the plates when you are finished.
2. If necessary, remove the feet from the bottom of the unit.
3. Secure the DVI DL to one side of the mounting tray,
using two of the supplied 4-40 x 3/16" screws in opposite
(diagonal) corners.
Rear Plate
Extron
U-bolt
PMK 350
Multi-product Projector
Mounting Kit
Extron
Power Supply
PMK 350 projector mounting a DVI DL
4. Using the two included tie wraps, strap the power supply
to the PMK bracket.
5. If desired, remove the back panel of the PMK 350 and
mount additional device(s) at the back of the bracket, as
described in step 3.
6. Place the PMK 350 around the projector ceiling mounting
pole.
DVI DL 101 • Installation and Operation
a #2 Philips screwdriver . Retain the
Extron
DVI DL 101
Equalizer
Contoured
Base
L-shaped
Bracket
Front Plate
Cover Sheet
2-9
