User Manual IO-Link Slave / EtherNet/IP Master
Document code: MN67973_ENG
Revision 1.000
Page 13 of 28
Industrial Electronic Devices

ETHERNET:

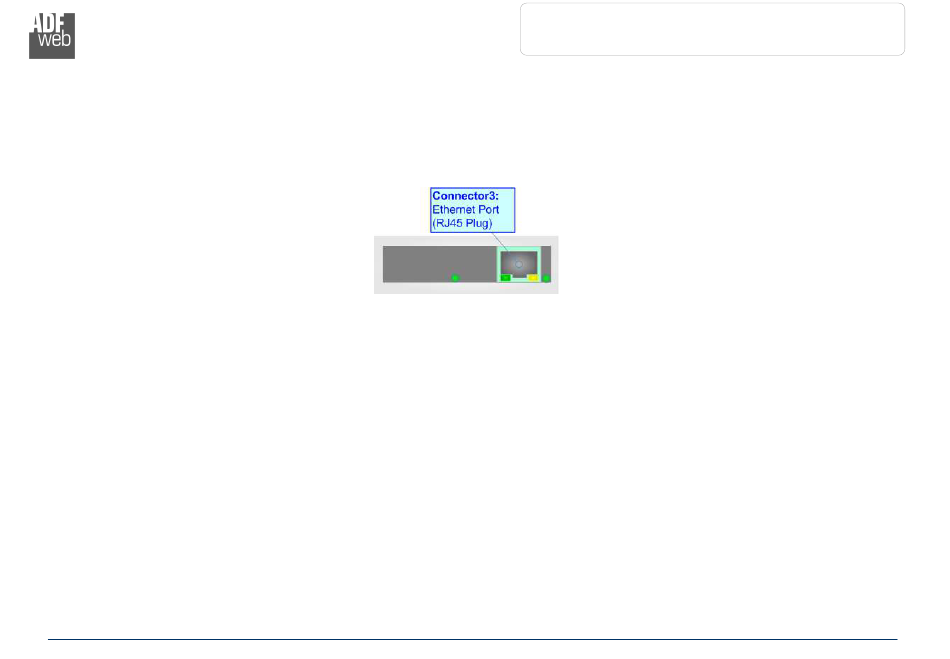

The Ethernet port is used for programming the device and for EtherNet/IP communication.
The Ethernet connection must be made using Connector3 of HD67973-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.
ADFweb.com S.r.l.
