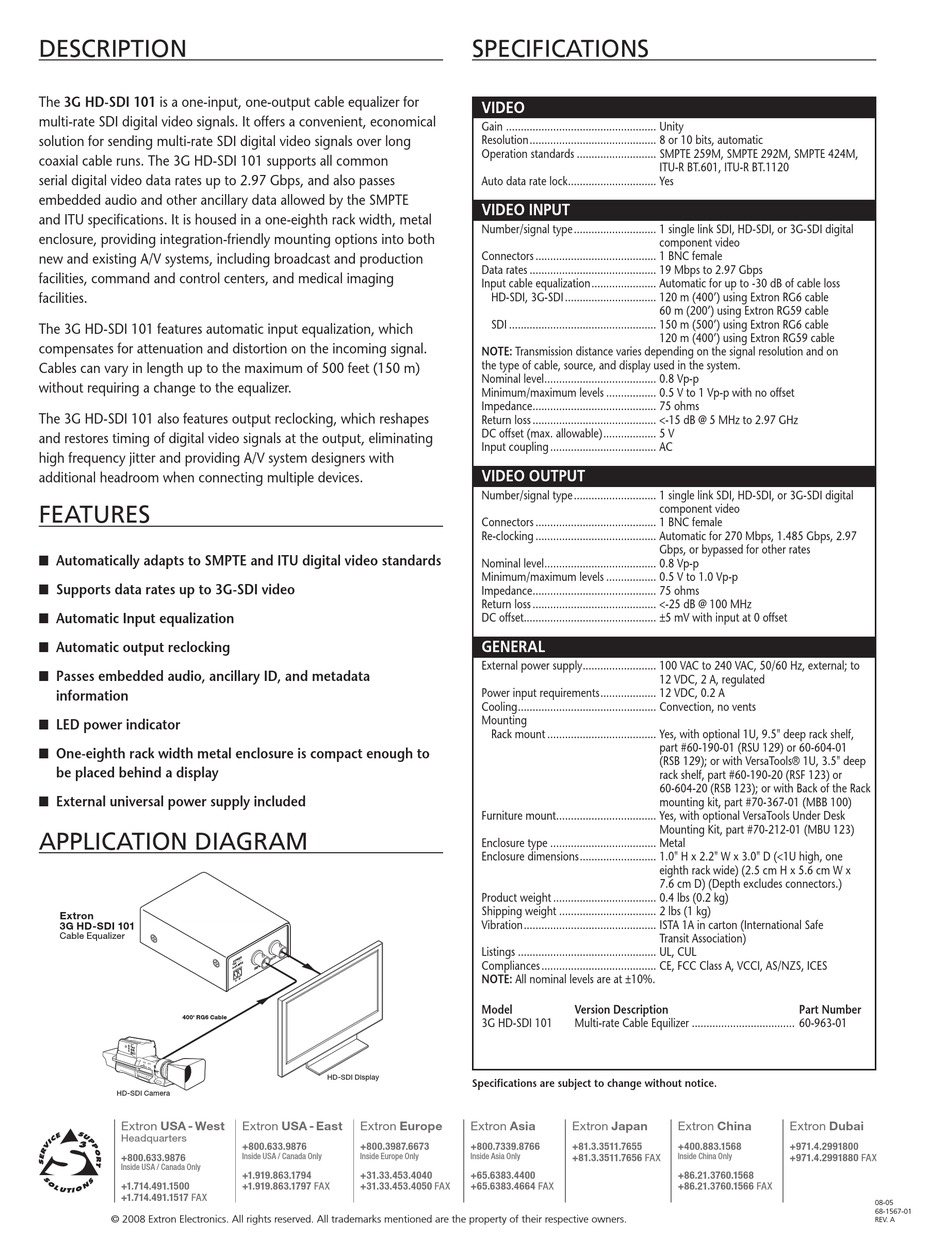

Specifications; Application Diagram - Extron electronics 3G HD-SDI 101 Specifications

DESCRIPTION
The 3G HD-SDI 101 is a one-input, one-output cable equalizer for
multi-rate SDI digital video signals. It offers a convenient, economical
solution for sending multi-rate SDI digital video signals over long
coaxial cable runs. The 3G HD-SDI 101 supports all common
serial digital video data rates up to 2.97 Gbps, and also passes
embedded audio and other ancillary data allowed by the SMPTE
and ITU specifications. It is housed in a one-eighth rack width, metal
enclosure, providing integration-friendly mounting options into both
new and existing A/V systems, including broadcast and production
facilities, command and control centers, and medical imaging
facilities.
The 3G HD-SDI 101 features automatic input equalization, which
compensates for attenuation and distortion on the incoming signal.
Cables can vary in length up to the maximum of 500 feet (150 m)
without requiring a change to the equalizer.
The 3G HD-SDI 101 also features output reclocking, which reshapes
and restores timing of digital video signals at the output, eliminating
high frequency jitter and providing A/V system designers with
additional headroom when connecting multiple devices.
fEaTuRES
n Automatically adapts to SMPTE and ITU digital video standards
n Supports data rates up to 3G-SDI video
n Automatic Input equalization
n Automatic output reclocking
n Passes embedded audio, ancillary ID, and metadata
information
n LED power indicator
n One-eighth rack width metal enclosure is compact enough to
be placed behind a display
n External universal power supply included

aPPlICaTION DIagRam

Extron
3G HD-SDI 101
Cable Equalizer
400' RG6 Cable
HD-SDI Camera
Extron USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517 FAX
© 2008 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.
U T
T P
R
W E O U
P O
V A X
1 2
A M T
P U
0 .4
IN
HD-SDI Display
Extron USA - East Extron Europe
+800.633.9876 +800.3987.6673
Inside USA / Canada Only Inside Europe Only
+1.919.863.1794 +31.33.453.4040
+1.919.863.1797 FAX +31.33.453.4050 FAX

SPECIfICaTIONS

VIDEO
Gain ................................................... Unity
Resolution ........................................... 8 or 10 bits, automatic
Operation standards ........................... SMPTE 259M, SMPTE 292M, SMPTE 424M,
Auto data rate lock .............................. Yes
VIDEO Input
Number/signal type ............................ 1 single link SDI, HD-SDI, or 3G-SDI digital
Connectors ......................................... 1 BNC female
Data rates ........................................... 19 Mbps to 2.97 Gbps
Input cable equalization ...................... Automatic for up to -30 dB of cable loss
HD-SDI, 3G-SDI ............................... 120 m (400') using Extron RG6 cable
SDI .................................................. 150 m (500') using Extron RG6 cable
NOTE: Transmission distance varies depending on the signal resolution and on
the type of cable, source, and display used in the system.
Nominal level ...................................... 0.8 Vp-p
Minimum/maximum levels ................. 0.5 V to 1 Vp-p with no offset
Impedance .......................................... 75 ohms
Return loss .......................................... <-15 dB @ 5 MHz to 2.97 GHz
DC offset (max. allowable) .................. 5 V
Input coupling .................................... AC
VIDEO Output
Number/signal type ............................ 1 single link SDI, HD-SDI, or 3G-SDI digital
Connectors ......................................... 1 BNC female
Re-clocking ......................................... Automatic for 270 Mbps, 1.485 Gbps, 2.97
Nominal level ...................................... 0.8 Vp-p
Minimum/maximum levels ................. 0.5 V to 1.0 Vp-p
Impedance .......................................... 75 ohms
Return loss .......................................... <-25 dB @ 100 MHz
DC offset............................................. ±5 mV with input at 0 offset
GEnEral
External power supply ......................... 100 VAC to 240 VAC, 50/60 Hz, external; to
Power input requirements ................... 12 VDC, 0.2 A
Cooling ............................................... Convection, no vents
Mounting
Rack mount ..................................... Yes, with optional 1U, 9.5" deep rack shelf,
Furniture mount .................................. Yes, with optional VersaTools Under Desk
Enclosure type .................................... Metal
Enclosure dimensions .......................... 1.0" H x 2.2" W x 3.0" D (<1U high, one
Product weight ................................... 0.4 lbs (0.2 kg)
Shipping weight ................................. 2 lbs (1 kg)
Vibration ............................................. ISTA 1A in carton (International Safe
Listings ............................................... UL, CUL
Compliances ....................................... CE, FCC Class A, VCCI, AS/NZS, ICES
NOTE: All nominal levels are at ±10%.
Model Version Description
3G HD-SDI 101 Multi-rate Cable Equilizer ................................... 60-963-01
Specifications are subject to change without notice.
Extron Asia Extron Japan
+800.7339.8766 +81.3.3511.7655
Inside Asia Only +81.3.3511.7656 FAX
+65.6383.4400
+65.6383.4664 FAX
ITU-R BT.601, ITU-R BT.1120
component video
60 m (200') using Extron RG59 cable
120 m (400') using Extron RG59 cable
component video
Gbps, or bypassed for other rates
12 VDC, 2 A, regulated
part #60-190-01 (RSU 129) or 60-604-01
(RSB 129); or with VersaTools® 1U, 3.5" deep
rack shelf, part #60-190-20 (RSF 123) or
60-604-20 (RSB 123); or with Back of the Rack
mounting kit, part #70-367-01 (MBB 100)
Mounting Kit, part #70-212-01 (MBU 123)
eighth rack wide) (2.5 cm H x 5.6 cm W x
7.6 cm D) (Depth excludes connectors.)
Transit Association)
Part Number
Extron China Extron Dubai
+400.883.1568 +971.4.2991800
Inside China Only +971.4.2991880 FAX
+86.21.3760.1568
+86.21.3760.1566 FAX
08-05
68-1567-01
REV. A
